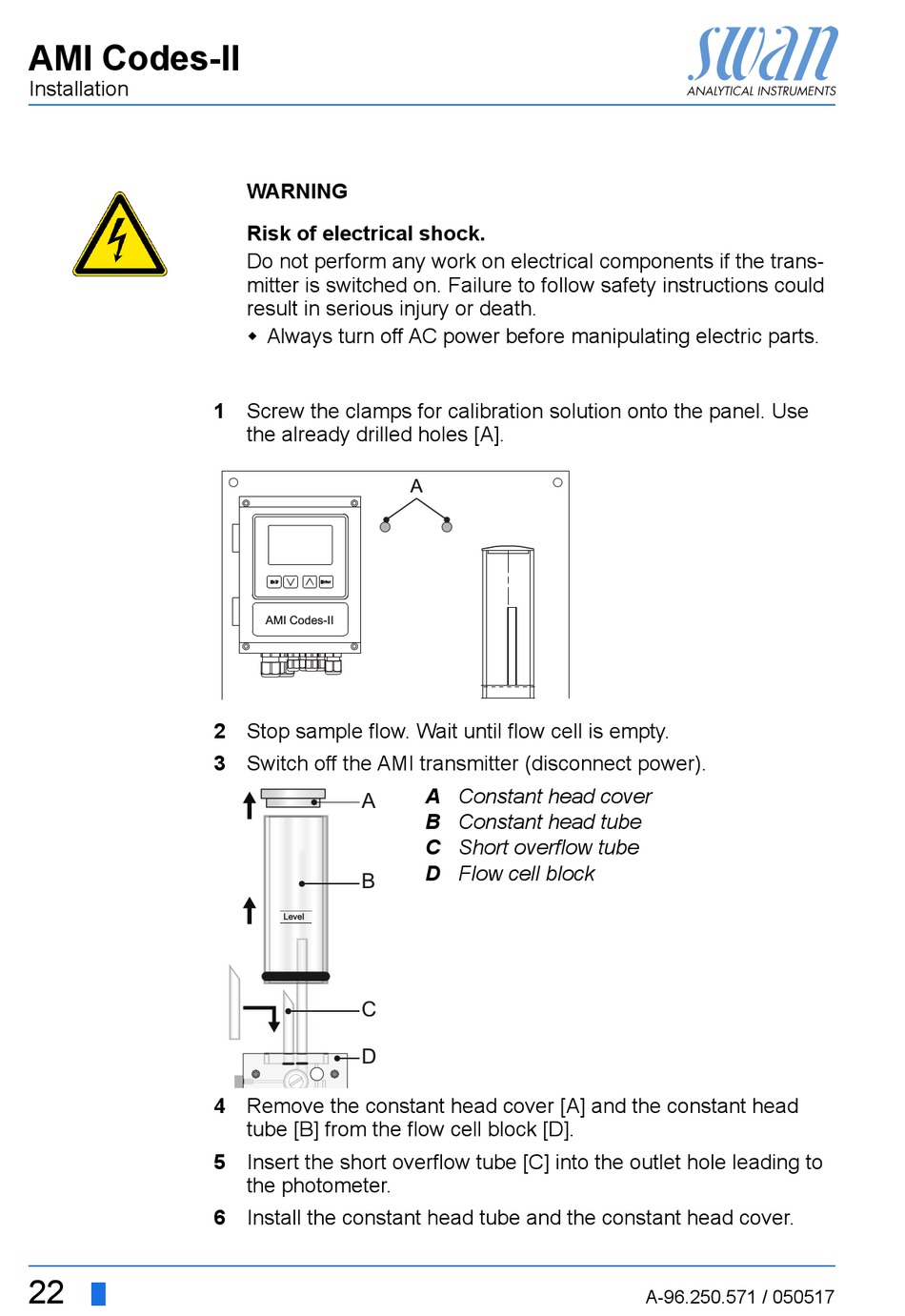

AMI Codes-II
Installation
22
WARNING
Risk of electrical shock.
Do not perform any work on electrical components if the trans-
mitter is switched on. Failure to follow safety instructions could
result in serious injury or death.
Always turn off AC power before manipulating electric parts.
1 Screw the clamps for calibration solution onto the panel. Use
the already drilled holes [A].
AMI Codes-II
2 Stop sample flow. Wait until flow cell is empty.
3 Switch off the AMI transmitter (disconnect power).
A
B
Level
C
D
4 Remove the constant head cover [A] and the constant head
tube [B] from the flow cell block [D].
5 Insert the short overflow tube [C] into the outlet hole leading to
the photometer.
6 Install the constant head tube and the constant head cover.
A
A
Constant head cover
B
Constant head tube
C
Short overflow tube
D
Flow cell block
A-96.250.571 / 050517
