Swann AMI Codes-II Operator's Manual page 13

AMI Codes-II
Product Description
Fluidics
A-96.250.571 / 050517

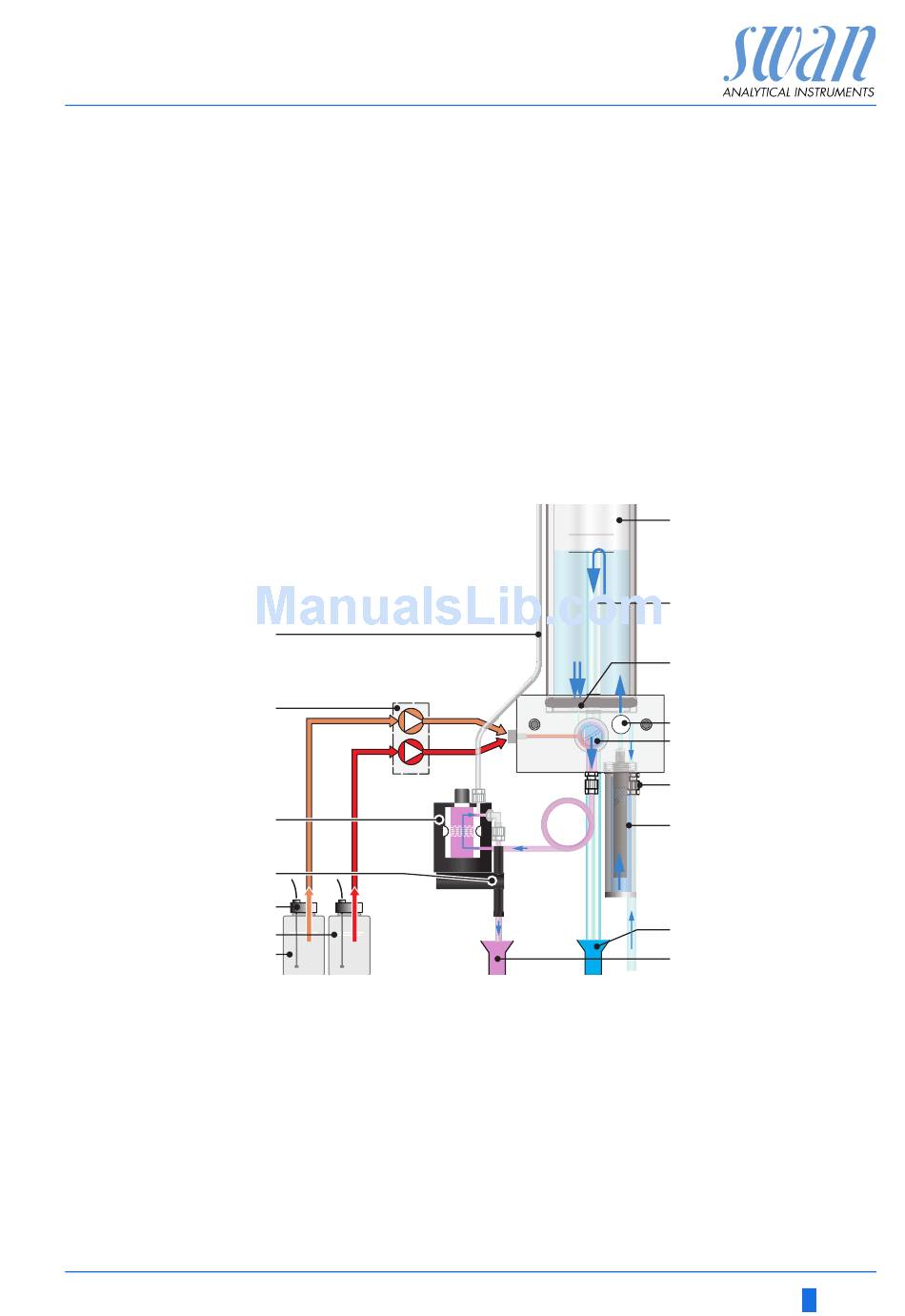

The sample flows through the sample inlet [F] and the filter vessel
[G] into the constant head [A]. Adjust the flow regulating valve [D]
so that always a small part of the sample flows through the overflow
tube [B] into the drain [H]. A part of the sample flows through the
photometer inlet [C] into the mixing chamber [E], where the re-
agents [J] and [K] are added by the peristaltic pump [O] and mixed
with the sample. The mixed sample flows through the photometer
[N] and disinfectant is measured. If KI and Buffer are mixed in the
reagent canister [K] monochloramine is measured.
After the measurement the sample flows through the outlet of the
photometer where it will be aerated through air inlet [P] to generate
bubbles. Then the sample flows through the bubble detector [M]
into the photometer drain [I].
P
O
N
M
L
K
J
A Constant head
B Overflow tube
C Photometer inlet
D Flow regulating valve
E Mixing chamber
F Sample inlet
G Inlet Filter
H Constant head drain
A
Level
B
C
D
E
F
G
H
I
I Photometer drain
J Reagent Oxycon on-line DPD
K Reagent Oxycon on-line Buffer
L Reagent level detector
M Air bubble detector
N Photometer
O Peristaltic pump
P Photometer air inlet
