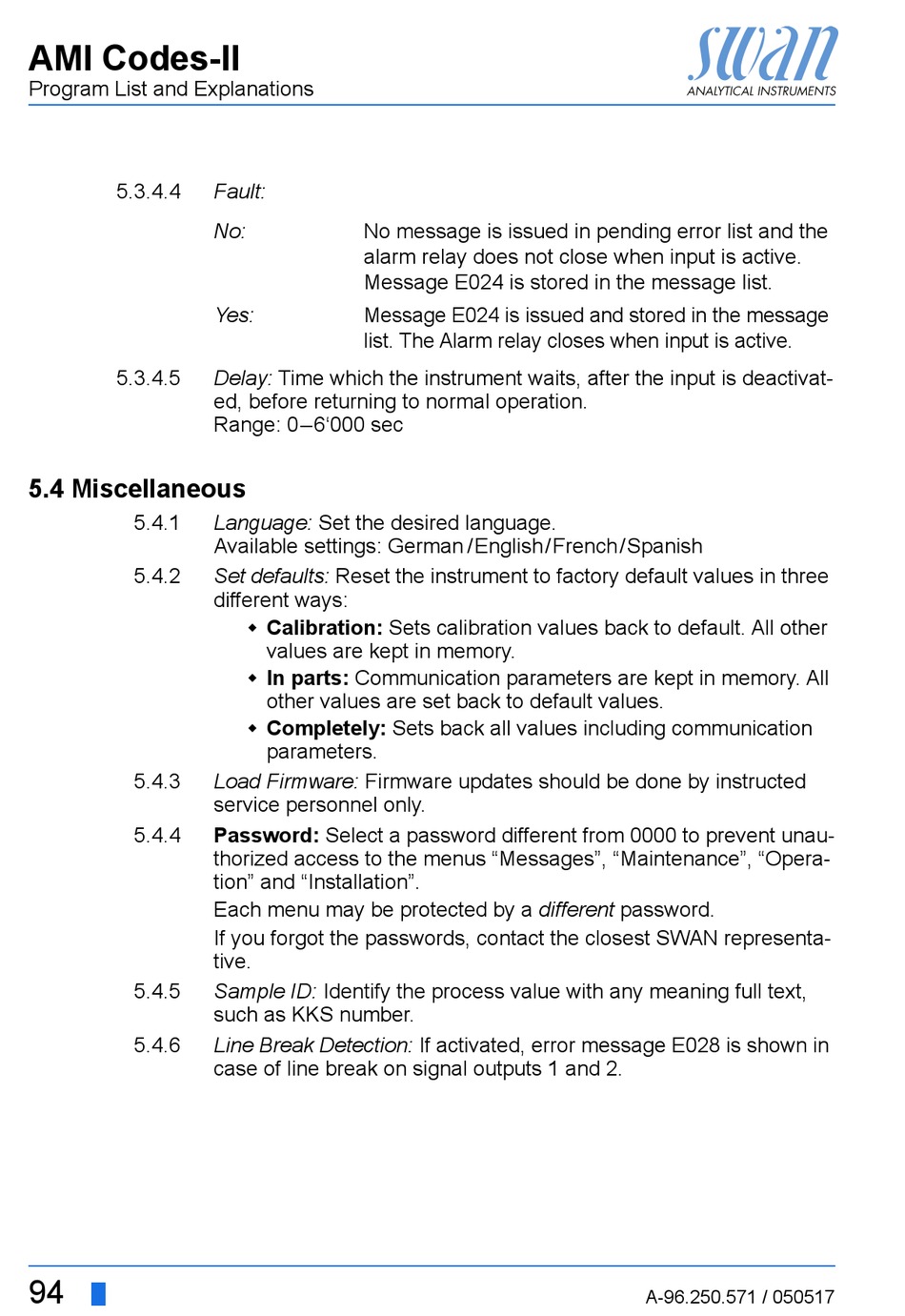

AMI Codes-II
Program List and Explanations
5.3.4.4
5.3.4.5
5.4 Miscellaneous
5.4.1
5.4.2
5.4.3
5.4.4
5.4.5
5.4.6
94
Fault:
No:
No message is issued in pending error list and the
alarm relay does not close when input is active.
Message E024 is stored in the message list.
Yes:
Message E024 is issued and stored in the message
list. The Alarm relay closes when input is active.
Delay: Time which the instrument waits, after the input is deactivat-
ed, before returning to normal operation.
Range: 0–6'000 sec
Language: Set the desired language.
Available settings: German /English/French/Spanish
Set defaults: Reset the instrument to factory default values in three
different ways:
Calibration: Sets calibration values back to default. All other
values are kept in memory.
In parts: Communication parameters are kept in memory. All
other values are set back to default values.
Completely: Sets back all values including communication
parameters.
Load Firmware: Firmware updates should be done by instructed
service personnel only.
Password: Select a password different from 0000 to prevent unau-
thorized access to the menus "Messages", "Maintenance", "Opera-
tion" and "Installation".
Each menu may be protected by a different password.
If you forgot the passwords, contact the closest SWAN representa-
tive.
Sample ID: Identify the process value with any meaning full text,
such as KKS number.
Line Break Detection: If activated, error message E028 is shown in
case of line break on signal outputs 1 and 2.
A-96.250.571 / 050517
- Quick Links:
- Maintenance Schedule
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the AMI Codes-II and is the answer not in the manual?
Questions and answers
Using the AMI Codes-II, there is Chlorine in the system, yet the system reads 0.00. Reseted, still no feedback. what could be the problem.
If the Swann AMI Codes-II system reads 0.00 for chlorine despite chlorine being present, possible issues could include:
1. Reagent Issues – The required reagents (OXYCON ON-LINE DPD, buffer solutions, etc.) might be depleted, expired, or improperly mixed.
2. Clogged or Dirty Components – The sample inlet, inlet filter, or flow regulating valve might be clogged, preventing proper water flow.
3. Calibration or Sensor Issues – The system may need recalibration, or the sensor might be faulty or improperly installed.
4. Power or Electrical Issues – The instrument may not be receiving proper power, or there could be an electrical fault affecting measurement.
5. Interference from Additives – Certain water additives like corrosion inhibitors or cyanuric acid might interfere with chlorine detection.
Checking reagent levels, cleaning components, recalibrating, and verifying power and water flow can help identify and resolve the issue.
