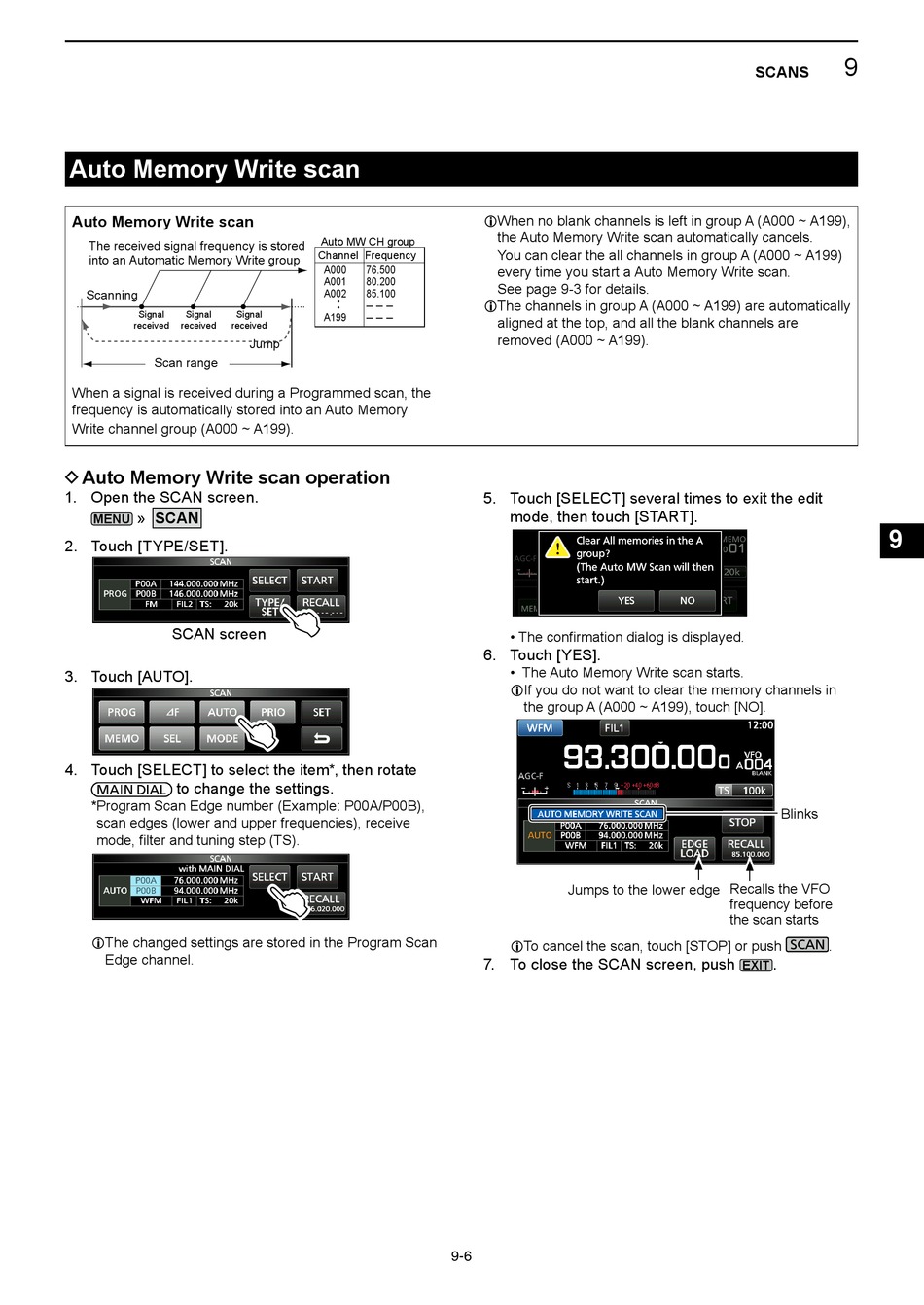

Auto Memory Write Scan; Dauto Memory Write Scan Operation - Icom IC-R8600 Instruction Manual

Auto Memory Write scan

Auto Memory Write scan
The received signal frequency is stored
into an Automatic Memory Write group
Scanning
Signal Signal Signal
received received received
Scan range
When a signal is received during a Programmed scan, the
frequency is automatically stored into an Auto Memory
Write channel group (A000 ~ A199).
D Auto Memory Write scan operation
1. Open the SCAN screen.
» SCAN
MENU
2. Touch [TYPE/SET].
SCAN screen
3. Touch [AUTO].
4. Touch [SELECT] to select the item*, then rotate
to change the settings.
* Program Scan Edge number (Example: P00A/P00B),
scan edges (lower and upper frequencies), receive
mode, filter and tuning step (TS).
L The changed settings are stored in the Program Scan
Edge channel.
Auto MW CH group
Channel Frequency
A000 76.500
80.200
A001
A002 85.100
– – –
A199 – – –
Jump
L When no blank channels is left in group A (A000 ~ A199),
the Auto Memory Write scan automatically cancels.
You can clear the all channels in group A (A000 ~ A199)
every time you start a Auto Memory Write scan.
See page 9-3 for details.
L The channels in group A (A000 ~ A199) are automatically
aligned at the top, and all the blank channels are
removed (A000 ~ A199).
5. Touch [SELECT] several times to exit the edit
mode, then touch [START].
• T he confirmation dialog is displayed.
6. Touch [YES].
• The Auto Memory Write scan starts.
L If you do not want to clear the memory channels in
the group A (A000 ~ A199), touch [NO].
Jumps to the lower edge
LTo cancel the scan, touch [STOP] or push
7. To close the SCAN screen, push
9-6
9
SCANS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Blinks
17
18
Recalls the VFO
frequency before
the scan starts
19
.
.
EXIT 20
21
