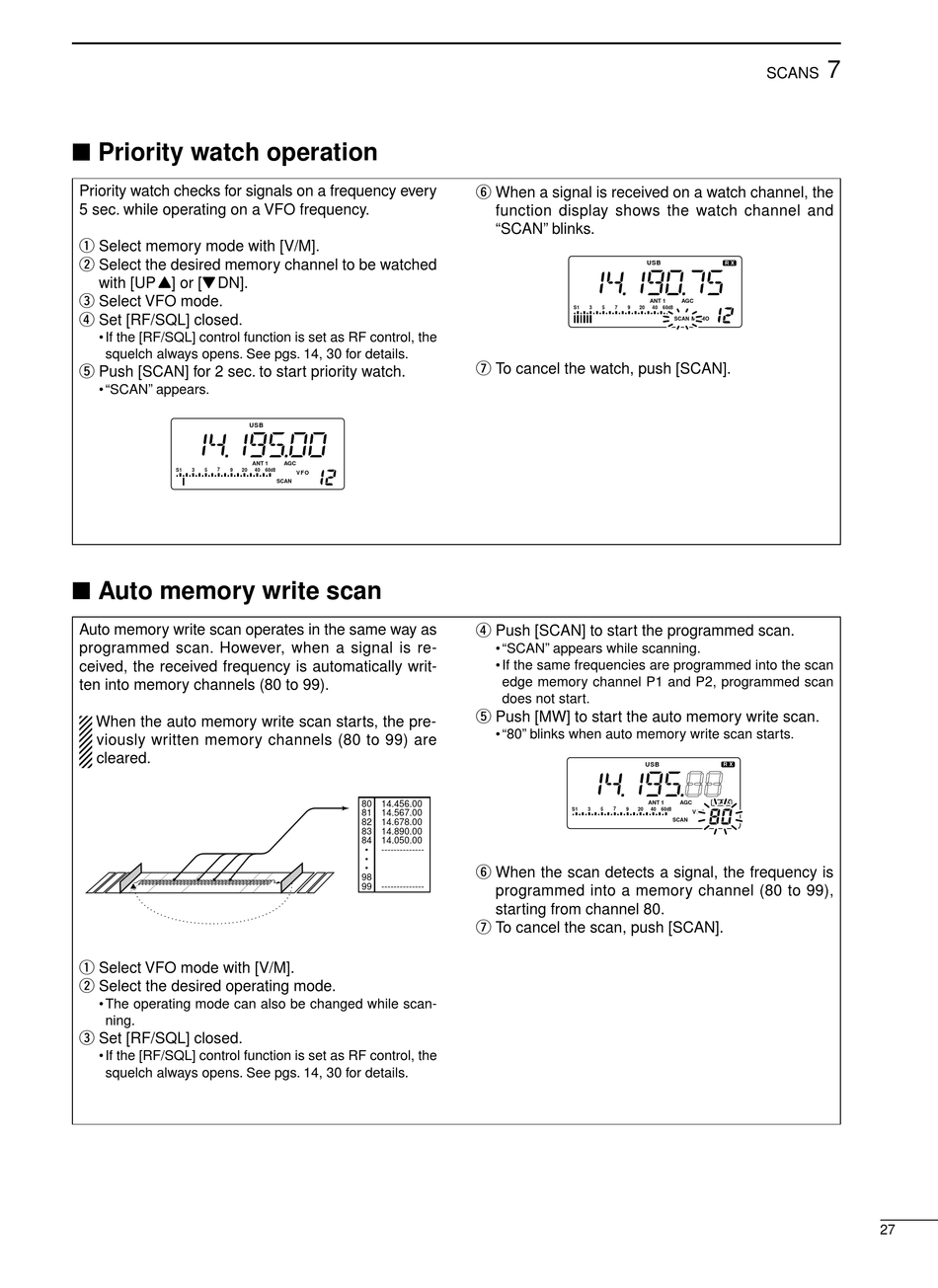

Scans ........................................................ 25; Priority Watch Operation; Auto Memory Write Scan Operation - Icom IC-R75 Instruction Manual

Priority watch operation

Priority watch checks for signals on a frequency every
5 sec. while operating on a VFO frequency.
q Select memory mode with [V/M].
w Select the desired memory channel to be watched
with [UP Y] or [Z DN].
e Select VFO mode.
r Set [RF/SQL] closed.
• If the [RF/SQL] control function is set as RF control, the
squelch always opens. See pgs. 14, 30 for details.
t Push [SCAN] for 2 sec. to start priority watch.
• "SCAN" appears.
USB
ANT 1
S1 3 5 7 9 20 40
Auto memory write scan
Auto memory write scan operates in the same way as
programmed scan. However, when a signal is re-
ceived, the received frequency is automatically writ-
ten into memory channels (80 to 99).
When the auto memory write scan starts, the pre-
viously written memory channels (80 to 99) are
cleared.
q Select VFO mode with [V/M].
w Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
e Set [RF/SQL] closed.
• If the [RF/SQL] control function is set as RF control, the
squelch always opens. See pgs. 14, 30 for details.
AGC
60dB
VFO
SCAN
80 14.456.00
81 14.567.00
82 14.678.00
83 14.890.00
84 14.050.00
• --------------
•
•
98
99 --------------
y When a signal is received on a watch channel, the
function display shows the watch channel and
"SCAN" blinks.
USB
ANT 1
S1 3 5 7 9 20 40
u To cancel the watch, push [SCAN].
r Push [SCAN] to start the programmed scan.
• "SCAN" appears while scanning.
• If the same frequencies are programmed into the scan
edge memory channel P1 and P2, programmed scan
does not start.
t Push [MW] to start the auto memory write scan.
• "80" blinks when auto memory write scan starts.
USB
ANT 1
S1 3 5 7 9 20 40
y When the scan detects a signal, the frequency is
programmed into a memory channel (80 to 99),
starting from channel 80.
u To cancel the scan, push [SCAN].
7
SCANS
R X
AGC
60dB
SCAN MEMO
R X
AGC BLANK BLANK
60dB
VFO
SCAN
27
