- Page 1 INSTRUCTION MANUAL COMMUNICATIONS RECEIVER iR8600...
- Page 2 TRADEMARKS Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries. NXDN is a trademark of Icom Incorporated and JVC KENWOOD Corporation.
- Page 3 FEATURES SUPPLIED ACCESSORIES • Covers 10 kHz to 3 GHz for wide band reception • Receives various digital modes such as D-STAR, P25 (Phase 1), NXDN, dPMR and DCR (Digital Convenience Radio) DC power cable DC power short connector • 12 kHz IF output port for DRM broadcast (3 m: 9.8 ft) •...
- Page 4 Do not dispose of these products as unsorted municipal waste. Dispose of them according to the laws in your area. Icom is not responsible for the destruction, damage to, or performance of any Icom or non-Icom equipment, if the malfunction is because of: •...
- Page 5 ABOUT THE INSTRUCTIONS This manual is described in the following manner. Detailed instruction “ ” (Quotation marks): 1. Push MENU Used to indicate icons, setting items, and screen titles displayed on the screen. The screen titles are also indicated in uppercase letters.
- Page 6 TABLE OF CONTENTS PREFACE ..............i DAbout the Tuning Step (TS) function ... 3-2 IMPORTANT ............... i D About the Programmable Tuning Step function . 3-3 TRADEMARKS ............i DAbout the Auto Tuning Step function ... 3-3 EXPLICIT DEFINITIONS ..........i Selecting the antenna ........
- Page 7 SCANS ............. 9-1 DDigital Code Squelch ........5-9 DNetwork Access Code (NAC) ...... 5-9 Scan types ............9-1 D Group Code (COM ID) and CC ....5-10 Basic scanning ..........9-1 DRadio Access Number (RAN) ....5-10 DVFO scan and Memory scan ....... 9-1 DUser Code (UC).........
- Page 8 11 SET MODE ............. 11-1 Set mode description ........11-1 DEntering the Set mode ......11-1 Tone Control ........... 11-2 Function ............11-2 Digital Set ............11-4 Connectors ............. 11-5 Network ............11-7 Display ............11-9 Time Set ............11-10 SD Card ............
- Page 9 R WARNING! Immediately turn OFF the receiver power period of time. and remove the power cable from the receiver if it emits an abnormal odor, sound or smoke. Contact your Icom dealer The display may have cosmetic imperfections that appear or distributor for advice.

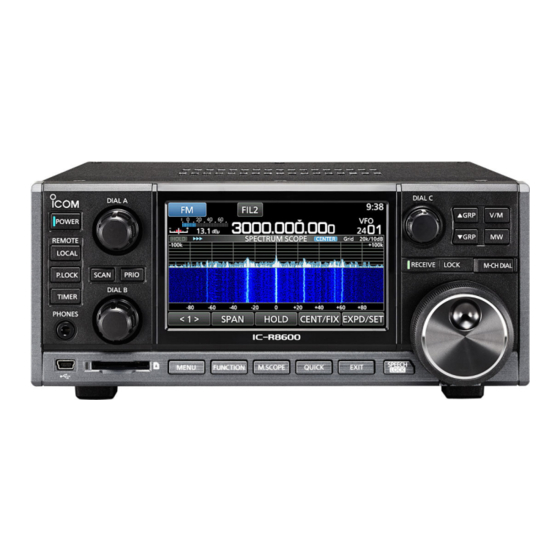

- Page 10 PANEL DESCRIPTION Front panel This section describes the keys, controls and dials that you use to operate the IC-R8600. Refer to the pages posted beside each key, control, or dial for details. q POWER KEY (p. 2-1) o MENU KEY (pp.
- Page 11 PANEL DESCRIPTION Front panel (Continued) !9 !9 !9 MEMORY CHANNEL DIAL KEY (p. 8-2) @3 DIAL C (p. 1-6) Push this key (lights white) then rotate • Push to display the Multi Dial menu. • Turn to change the memory channel number. to change the Memory channel number.
- Page 12 IC-R8600 #03 < Intended Country of Use > (Europe) IC-R8600 #06 < Intended Country of Use > (France) A7375D-1EX-3 Printed in Japan © 2017 Icom Inc. 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan...
