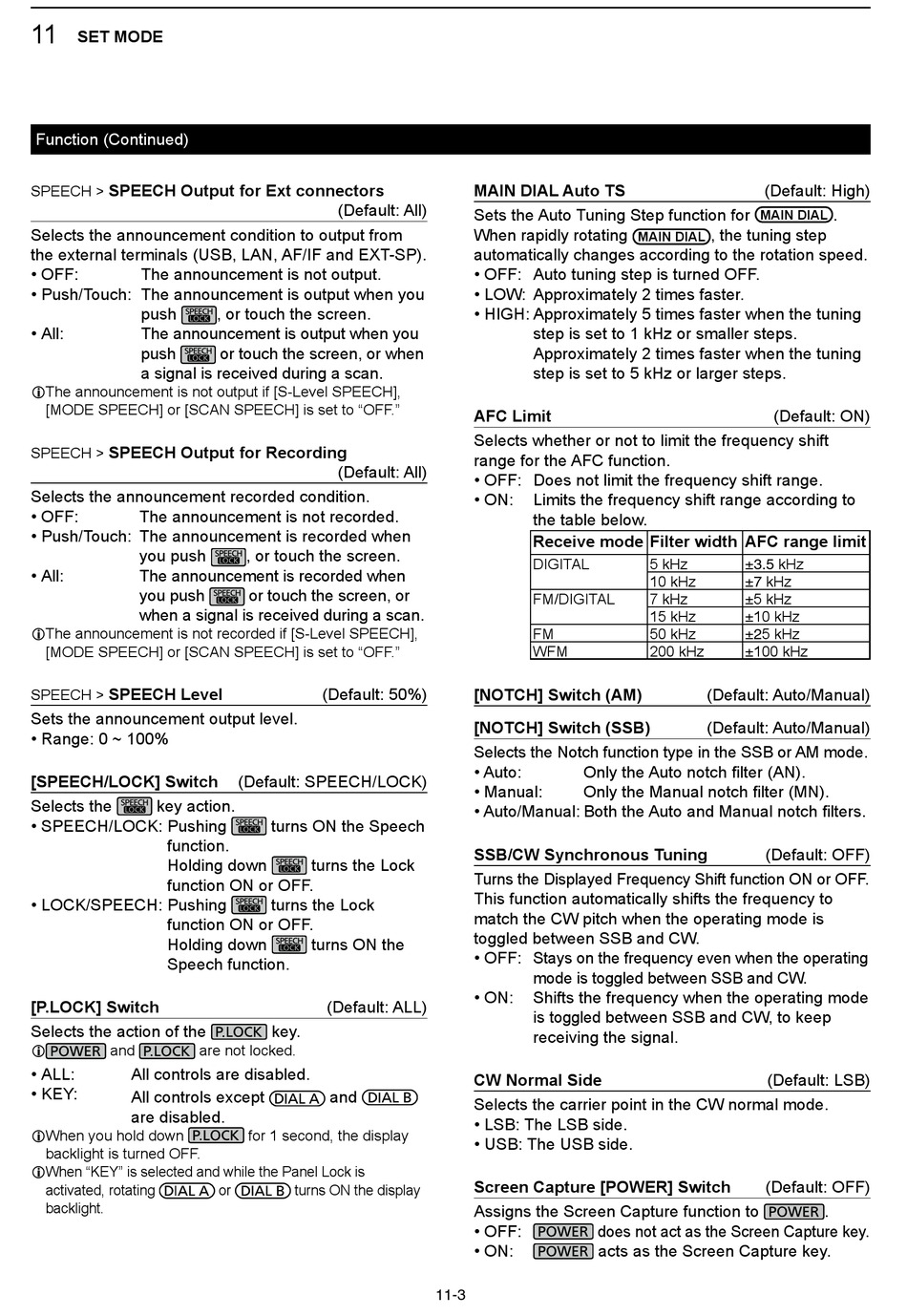

Icom IC-R8600 Instruction Manual page 70

11
SET MODE
Function (Continued)
SPEECH Output nor Ext connectors
SPEECH >
Selects the announcement condition to output from
the external terminals (USB, LAN, AF/IF and EXT-SP).
• OFF: The announcement is not output.
• Push/Touch: The announcement is output when you
push
• All: The announcement is output when you
push
a signal is received during a scan.
L The announcement is not output if [S-Level SPEECH],
[MODE SPEECH] or [SCAN SPEECH] is set to "OFF."
SPEECH Output nor Recording
SPEECH >
Selects the announcement recorded condition.
• OFF: The announcement is not recorded.
• Push/Touch: The announcement is recorded when
you push
• All: The announcement is recorded when
you push
when a signal is received during a scan.
L The announcement is not recorded if [S-Level SPEECH],
[MODE SPEECH] or [SCAN SPEECH] is set to "OFF."
SPEECH Level
SPEECH >
Sets the announcement output level.
• Range: 0 ~ 100%
[SPEECH/LOCK] Switch
Selects the key action.
• SPEECH/LOCK: Pushing
function.
Holding down
function ON or OFF.
• LOCK/SPEECH: Pushing
function ON or OFF.
Holding down
Speech function.
[P.LOCK] Switch
Selects the action of the
and are not locked.
L
• ALL: All controls are disabled.
• KEY:
All controls except
are disabled.
L When you hold down
backlight is turned OFF.
L When "KEY" is selected and while the Panel Lock is
activated, rotating
backlight.
(Default: All)
, or touch the screen.
or touch the screen, or when
(Default: All)
, or touch the screen.
or touch the screen, or
(Default: 50%)
(Default: SPEECH/LOCK)
turns ON the Speech
turns the Lock
turns the Lock
turns ON the
(Default: ALL)
key.
and
for 1 second, the display
or turns ON the display
MAIN DIAL Auto TS
Sets the Auto Tuning Step function for
When rapidly rotating
automatically changes according to the rotation speed.
• OFF: Auto tuning step is turned OFF.
• LOW: Approximately 2 times faster.
• HIGH: Approximately 5 times faster when the tuning
step is set to 1 kHz or smaller steps.
Approximately 2 times faster when the tuning
step is set to 5 kHz or larger steps.
AFC Limit
Selects whether or not to limit the frequency shift
range for the AFC function.
• OFF: Does not limit the frequency shift range.
• ON: Limits the frequency shift range according to
the table below.
Receive mode Filter width AFC rmnge limit
DIGITAL
FM/DIGITAL
FM
WFM
[NOTCH] Switch (AM)
[NOTCH] Switch (SSB)
Selects the Notch function type in the SSB or AM mode.
• Auto: Only the Auto notch filter (AN).
• Manual: Only the Manual notch filter (MN).
• Auto/Manual: Both the Auto and Manual notch filters.
SSB/CW Synchronous Tuning
Turns the Displayed Frequency Shift function ON or OFF.
This function automatically shifts the frequency to
match the CW pitch when the operating mode is
toggled between SSB and CW.
• OFF: Stays on the frequency even when the operating
mode is toggled between SSB and CW.
• ON: Shifts the frequency when the operating mode
is toggled between SSB and CW, to keep
receiving the signal.
CW Normml Side
Selects the carrier point in the CW normal mode.
• LSB: The LSB side.
• USB: The USB side.
Screen Cmpture [POWER] Switch
Assigns the Screen Capture function to
• OFF: does not act as the Screen Capture key.
• ON: acts as the Screen Capture key.
11-3
(Default: High)
MAIN DIAL
, the tuning step
MAIN DIAL
(Default: ON)
5 kHz ±3.5 kHz
10 kHz ±7 kHz
7 kHz ±5 kHz
15 kHz ±10 kHz
50 kHz ±25 kHz
200 kHz ±100 kHz
(Default: Auto/Manual)
(Default: Auto/Manual)
(Default: OFF)
(Default: LSB)
(Default: OFF)
.
.
