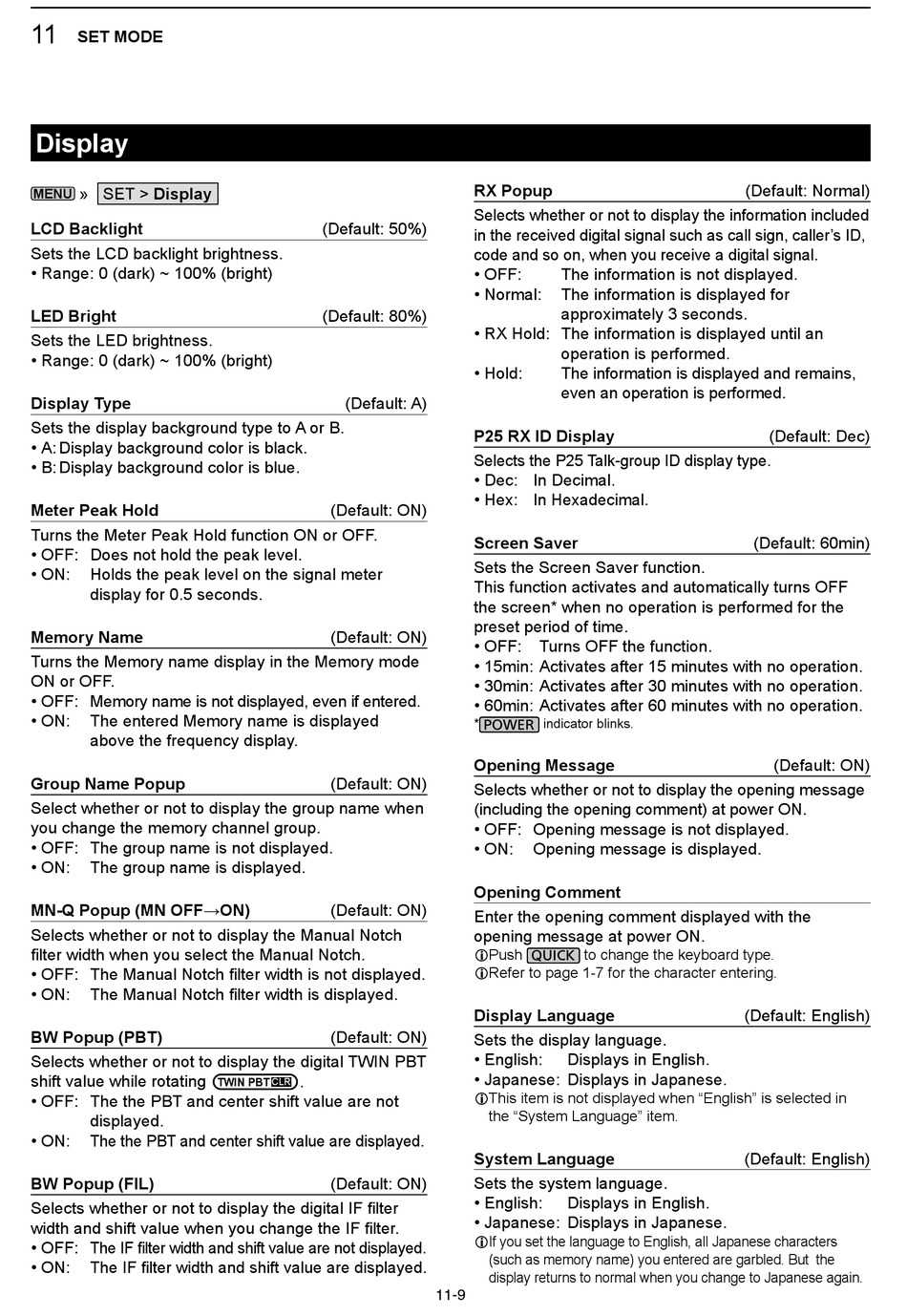

Display - Icom IC-R8600 Instruction Manual

11
SET MODE
Displmy
» SET > Displmy
MENU
LCD Bmcklight
Sets the LCD backlight brightness.
• Range: 0 (dark) ~ 100% (bright)
LED Bright
Sets the LED brightness.
• Range: 0 (dark) ~ 100% (bright)
Displmy Type
Sets the display background type to A or B.
• A: Display background color is black.
• B: Display background color is blue.
Meter Pemk Hold
Turns the Meter Peak Hold function ON or OFF.
• OFF: Does not hold the peak level.
• ON: Holds the peak level on the signal meter
display for 0.5 seconds.
Memory Nmme
Turns the Memory name display in the Memory mode
ON or OFF.
• OFF: Memory name is not displayed, even if entered.
• ON: The entered Memory name is displayed
above the frequency display.
Group Nmme Popup
Select whether or not to display the group name when
you change the memory channel group.
• OFF: The group name is not displayed.
• ON: The group name is displayed.
MN-Q Popup (MN OFF→ON)
Selects whether or not to display the Manual Notch
filter width when you select the Manual Notch.
• OFF: The Manual Notch filter width is not displayed.
• ON: The Manual Notch filter width is displayed.
BW Popup (PBT)
Selects whether or not to display the digital TWIN PBT
shift value while rotating
• OFF: The the PBT and center shift value are not
displayed.
• ON: The the PBT and center shift value are displayed.
BW Popup (FIL)
Selects whether or not to display the digital IF filter
width and shift value when you change the IF filter.
• OFF: The IF filter width and shift value are not displayed.
• ON: The IF filter width and shift value are displayed.
(Default: 50%)
(Default: 80%)
(Default: A)
(Default: ON)
(Default: ON)
(Default: ON)
(Default: ON)
(Default: ON)
.
TWIN PBT
CLR
(Default: ON)
RX Popup
Selects whether or not to display the information included
in the received digital signal such as call sign, caller's ID,
code and so on, when you receive a digital signal.
• OFF: The information is not displayed.
• Normal: The information is displayed for
approximately 3 seconds.
• RX Hold: The information is displayed until an
operation is performed.
• Hold: The information is displayed and remains,
even an operation is performed.
P25 RX ID Displmy
Selects the P25 Talk-group ID display type.
• Dec: In Decimal.
• Hex: In Hexadecimal.
Screen Smver
Sets the Screen Saver function.
This function activates and automatically turns OFF
the screen* when no operation is performed for the
preset period of time.
• OFF: Turns OFF the function.
• 15min: Activates after 15 minutes with no operation.
• 30min: Activates after 30 minutes with no operation.
• 60min: Activates after 60 minutes with no operation.
* indicator blinks.
Opening Messmge
Selects whether or not to display the opening message
(including the opening comment) at power ON.
• OFF: Opening message is not displayed.
• ON: Opening message is displayed.
Opening Comment
Enter the opening comment displayed with the
opening message at power ON.
to change the keyboard type.
LPush
LRefer to page 1-7 for the character entering.
Displmy Lmngumge
Sets the display language.
• English: Displays in English.
• Japanese: Displays in Japanese.
L This item is not displayed when "English" is selected in
the "System Language" item.
System Lmngumge
Sets the system language.
• English: Displays in English.
• Japanese: Displays in Japanese.
L If you set the language to English, all Japanese characters
(such as memory name) you entered are garbled. But the
display returns to normal when you change to Japanese again.
11-9
(Default: Normal)
(Default: Dec)
(Default: 60min)
(Default: ON)
(Default: English)
(Default: English)
