1

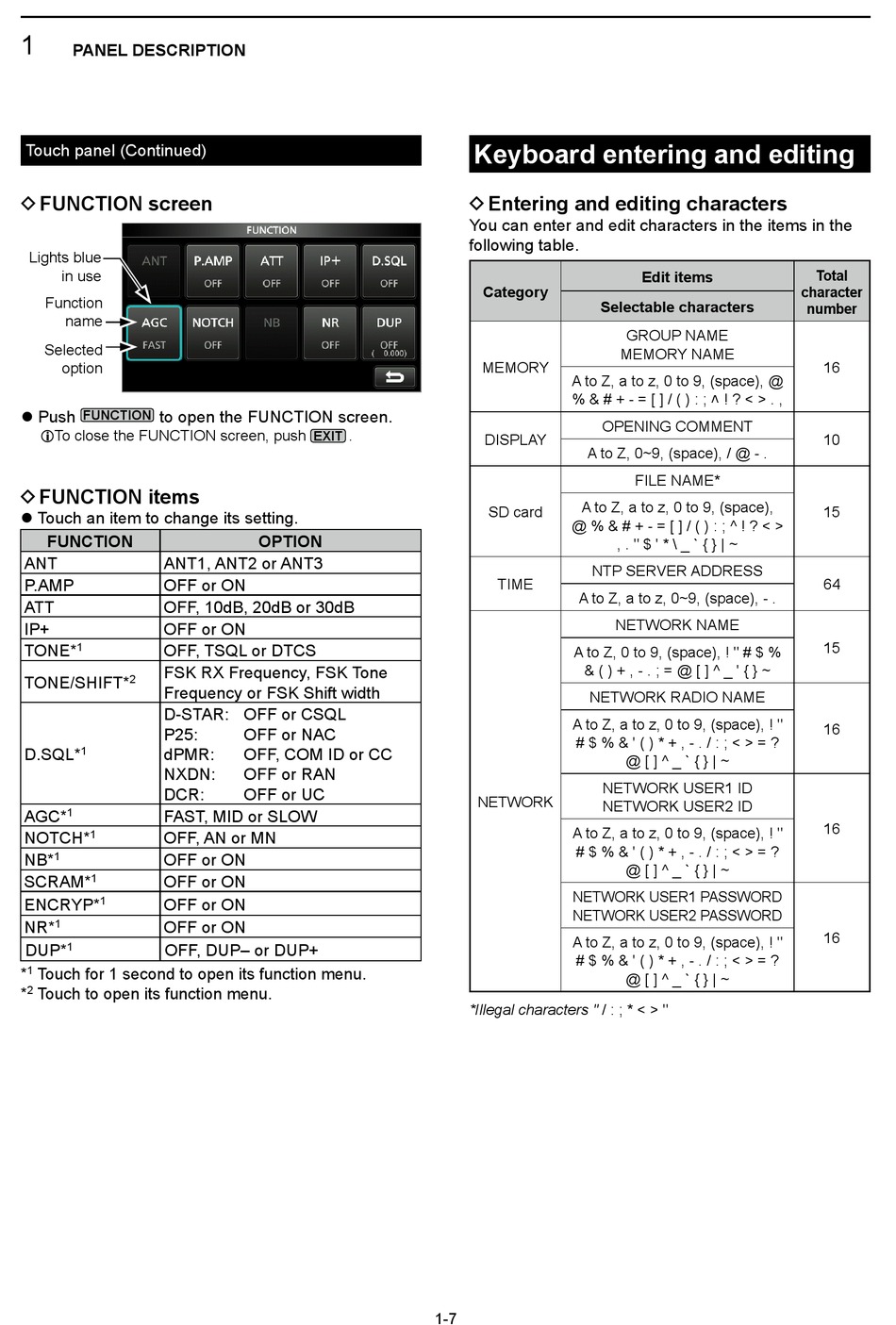

PANEL DESCRIPTION
Touch panel (Continued)
D FUNCTION screen
Lights blue
in use
Function
name
Selected
option
z Push to open the FUNCTION screen.
FUNCTION
LTo close the FUNCTION screen, push
D FUNCTION items
z Touch an item to change its setting.
FUNCTION
ANT ANT1, ANT2 or ANT3
P.AMP OFF or ON
ATT OFF, 10dB, 20dB or 30dB
IP+ OFF or ON
TONE* 1 OFF, TSQL or DTCS
FSK RX Frequency, FSK Tone
TONE/SHIFT* 2
Frequency or FSK Shift width
D-STAR: OFF or CSQL
P25:
D.SQL* 1 dPMR:
NXDN:
DCR:
AGC* 1 FAST, MID or SLOW
NOTCH* 1 OFF, AN or MN
NB* 1 OFF or ON
SCRAM* 1 OFF or ON
ENCRYP* 1 OFF or ON
NR* 1 OFF or ON
DUP* 1 OFF, DUP– or DUP+
* Touch for 1 second to open its function menu.
1
* 2 Touch to open its function menu.
.
EXIT
OPTION
OFF or NAC
OFF, COM ID or CC
OFF or RAN
OFF or UC

Keyboard entering and editing

D Entering and editing characters
You can enter and edit characters in the items in the
following table.
Category
Selectable characters
MEMORY
A to Z, a to z, 0 to 9, (space), @
% & # + - = [ ] / ( ) : ; ˄ ! ? < > . ,
OPENING COMMENT
DISPLAY
A to Z, 0~9, (space), / @ - .
A to Z, a to z, 0 to 9, (space),
SD card
@ % & # + - = [ ] / ( ) : ; ^ ! ? < >
NTP SERVER ADDRESS
TIME
A to Z, a to z, 0~9, (space), - .
A to Z, 0 to 9, (space), ! " # $ %
& ( ) + , - . ; = @ [ ] ^ _ ' { } ~
NETWORK RADIO NAME
A to Z, a to z, 0 to 9, (space), ! "
# $ % & ' ( ) * + , - . / : ; < > = ?
NETWORK USER1 ID
NETWORK
NETWORK USER2 ID
A to Z, a to z, 0 to 9, (space), ! "
# $ % & ' ( ) * + , - . / : ; < > = ?
NETWORK USER1 PASSWORD
NETWORK USER2 PASSWORD
A to Z, a to z, 0 to 9, (space), ! "
# $ % & ' ( ) * + , - . / : ; < > = ?
*Illegal characters " / : ; * < > "
1-7
Edit items
GROUP NAME
MEMORY NAME
FILE NAME*
, . " $ ' * \ _ ` { } | ~
NETWORK NAME
@ [ ] ^ _ ` { } | ~
@ [ ] ^ _ ` { } | ~
@ [ ] ^ _ ` { } | ~
Total
character
number
16
10
15
64
15
16
16
16
