5
OTHER FUNCTIONS
Receiving FSK (RTTY) signal (Continued)

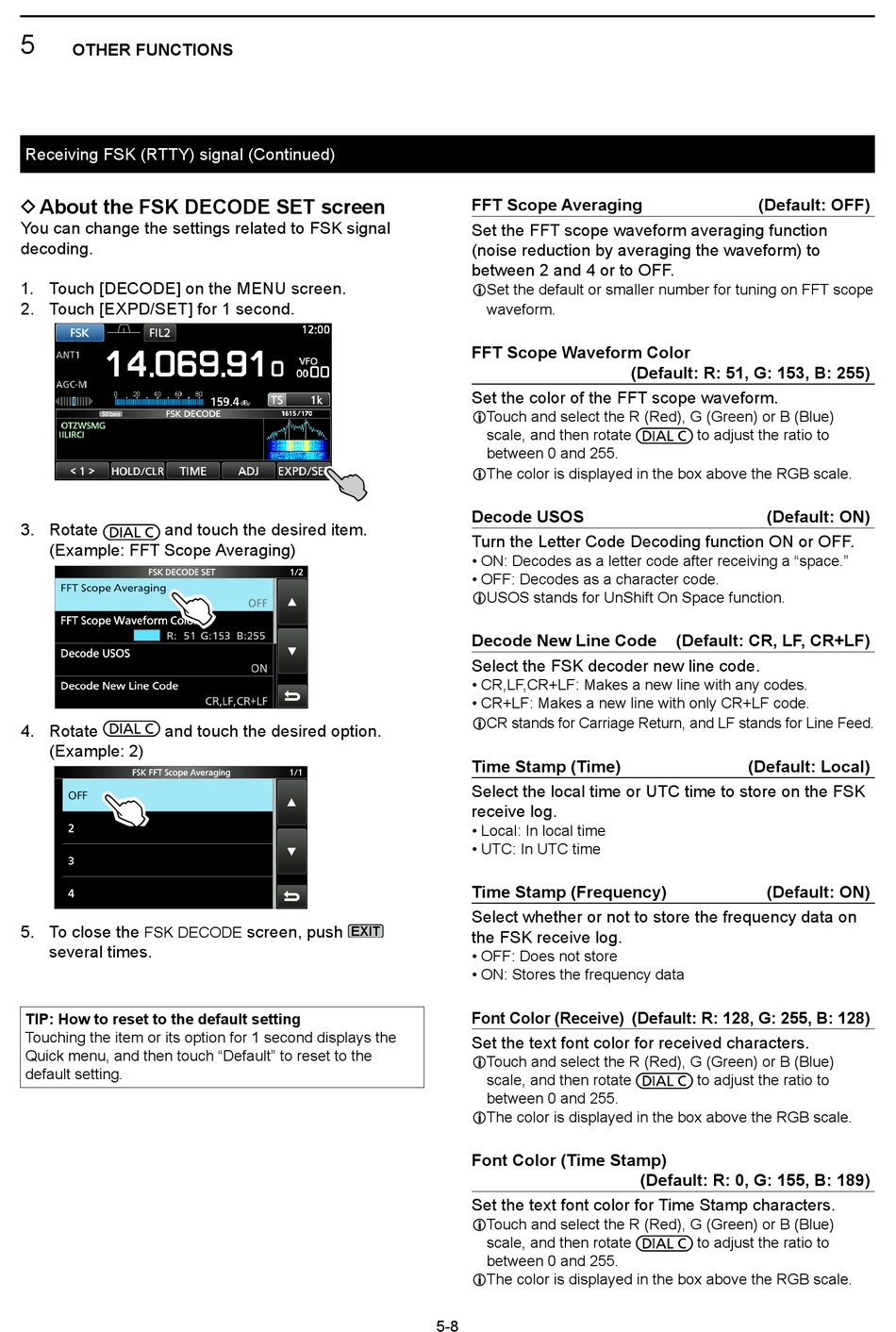

D About the FSK DECODE SET screen
You can change the settings related to FSK signal
decoding.
1. Touch [DECODE] on the MENU screen.
2. Touch [EXPD/SET] for 1 second.
3. Rotate and touch the desired item.
(Example: FFT Scope Averaging)
4. Rotate and touch the desired option.
(Example: 2)
5. To close the
FSK DECODE
several times.
TIP: How to reset to the default setting
Touching the item or its option for 1 second displays the
Quick menu, and then touch "Default" to reset to the
default setting.
screen, push
EXIT
FFT Scope Averaging
Set the FFT scope waveform averaging function
(noise reduction by averaging the waveform) to
between 2 and 4 or to OFF.
L Set the default or smaller number for tuning on FFT scope
waveform.
FFT Scope Waveform Color
Set the color of the FFT scope waveform.
L Touch and select the R (Red), G (Green) or B (Blue)
scale, and then rotate
between 0 and 255.
LThe color is displayed in the box above the RGB scale.
Decode USOS
Turn the Letter Code Decoding function ON or OFF.
• ON: Decodes as a letter code after receiving a "space."
• OFF: Decodes as a character code.
L USOS stands for UnShift On Space function.
Decode New Line Code
Select the FSK decoder new line code.
• CR,LF,CR+LF: Makes a new line with any codes.
• CR+LF: Makes a new line with only CR+LF code.
L CR stands for Carriage Return, and LF stands for Line Feed.
Time Stamp (Time)
Select the local time or UTC time to store on the FSK
receive log.
• Local: In local time
• UTC: In UTC time
Time Stamp (Frequency)
Select whether or not to store the frequency data on
the FSK receive log.
• OFF: Does not store
• ON: Stores the frequency data
Font Color (Receive) (Default: R: 128, G: 255, B: 128)
Set the text font color for received characters.
L Touch and select the R (Red), G (Green) or B (Blue)
scale, and then rotate
between 0 and 255.
LThe color is displayed in the box above the RGB scale.
Font Color (Time Stamp)
Set the text font color for Time Stamp characters.
L Touch and select the R (Red), G (Green) or B (Blue)
scale, and then rotate
between 0 and 255.
LThe color is displayed in the box above the RGB scale.
5-8
(Default: OFF)
(Default: R: 51, G: 153, B: 255)
to adjust the ratio to
(Default: ON)
(Default: CR, LF, CR+LF)
(Default: Local)
(Default: ON)
to adjust the ratio to
(Default: R: 0, G: 155, B: 189)
to adjust the ratio to
