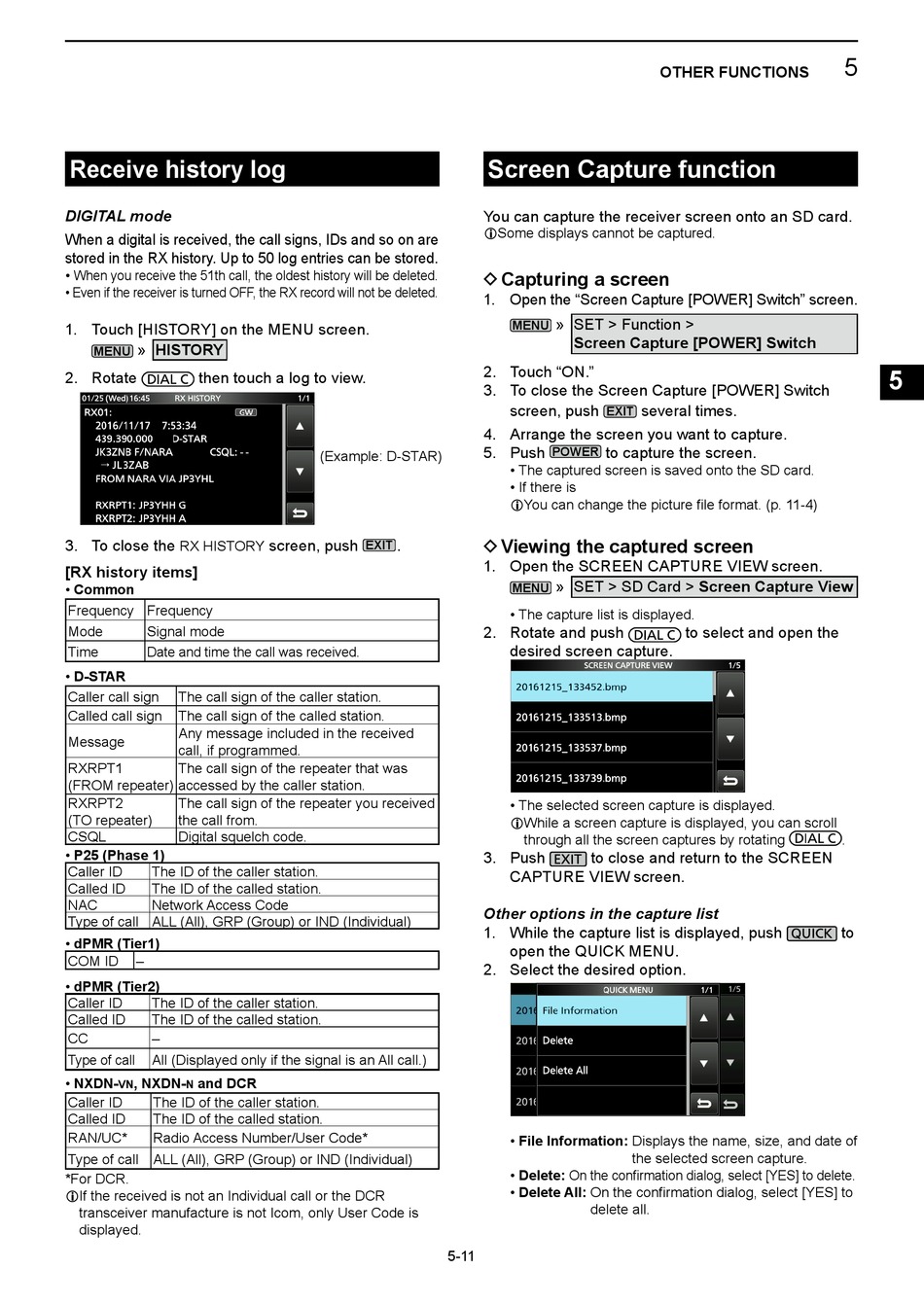

Receive history log

DIGITAL mode
When a digital is received, the call signs, IDs and so on are
stored in the RX history. Up to 50 log entries can be stored.
• When you receive the 51th call, the oldest history will be deleted.
• Even if the receiver is turned OFF, the RX record will not be deleted.
1. Touch [HISTORY] on the MENU screen.
» HISTORY
MENU
2. Rotate then touch a log to view.
3. To close the
RX HISTORY
[RX history items]
• Common
Frequency Frequency
Mode Signal mode
Time Date and time the call was received.
• D-STAR
Caller call sign The call sign of the caller station.
Called call sign The call sign of the called station.
Any message included in the received
Message
call, if programmed.
RXRPT1 The call sign of the repeater that was
(FROM repeater) accessed by the caller station.
RXRPT2 The call sign of the repeater you received
(TO repeater) the call from.
CSQL Digital squelch code.
• P25 (Phase 1)
Caller ID The ID of the caller station.
Called ID The ID of the called station.
NAC Network Access Code
Type of call ALL (All), GRP (Group) or IND (Individual)
• dPMR (Tier1)
COM ID –
• dPMR (Tier2)
Caller ID The ID of the caller station.
Called ID The ID of the called station.
CC –
Type of call All (Displayed only if the signal is an All call.)
• NXDN- , NXDN- and DCR
vn n
Caller ID The ID of the caller station.
Called ID The ID of the called station.
RAN/UC* Radio Access Number/User Code*
Type of call ALL (All), GRP (Group) or IND (Individual)
*For DCR.
L If the received is not an Individual call or the DCR
transceiver manufacture is not Icom, only User Code is
displayed.
(Example: D-STAR)
screen, push .
EXIT

Screen Capture function

You can capture the receiver screen onto an SD card.
LSome displays cannot be captured.
D Capturing a screen
1. Open the "Screen Capture [POWER] Switch" screen.
» SET > Function >
MENU
Screen Capture [POWER] Switch
2. Touch "ON."
3. To close the Screen Capture [POWER] Switch
screen, push
EXIT
4. Arrange the screen you want to capture.
5. Push to capture the screen.
POWER
• The captured screen is saved onto the SD card.
• If there is
L You can change the picture file format. (p. 11-4)
D Viewing the captured screen
1. Open the SCREEN CAPTURE VIEW screen.
» SET > SD Card > Screen Capture View
MENU
• The capture list is displayed.
2. Rotate and push
desired screen capture.
• The selected screen capture is displayed.
L While a screen capture is displayed, you can scroll
through all the screen captures by rotating
3. Push to close and return to the SCREEN
CAPTURE VIEW screen.
Other options in the capture list
1. While the capture list is displayed, push
open the QUICK MENU.
2. Select the desired option.
• File Information: Displays the name, size, and date of
• Delete: On the confirmation dialog, select [YES] to delete.
• Delete All: On the confirmation dialog, select [YES] to
delete all.
5-11
OTHER FUNCTIONS
several times.
to select and open the
the selected screen capture.
