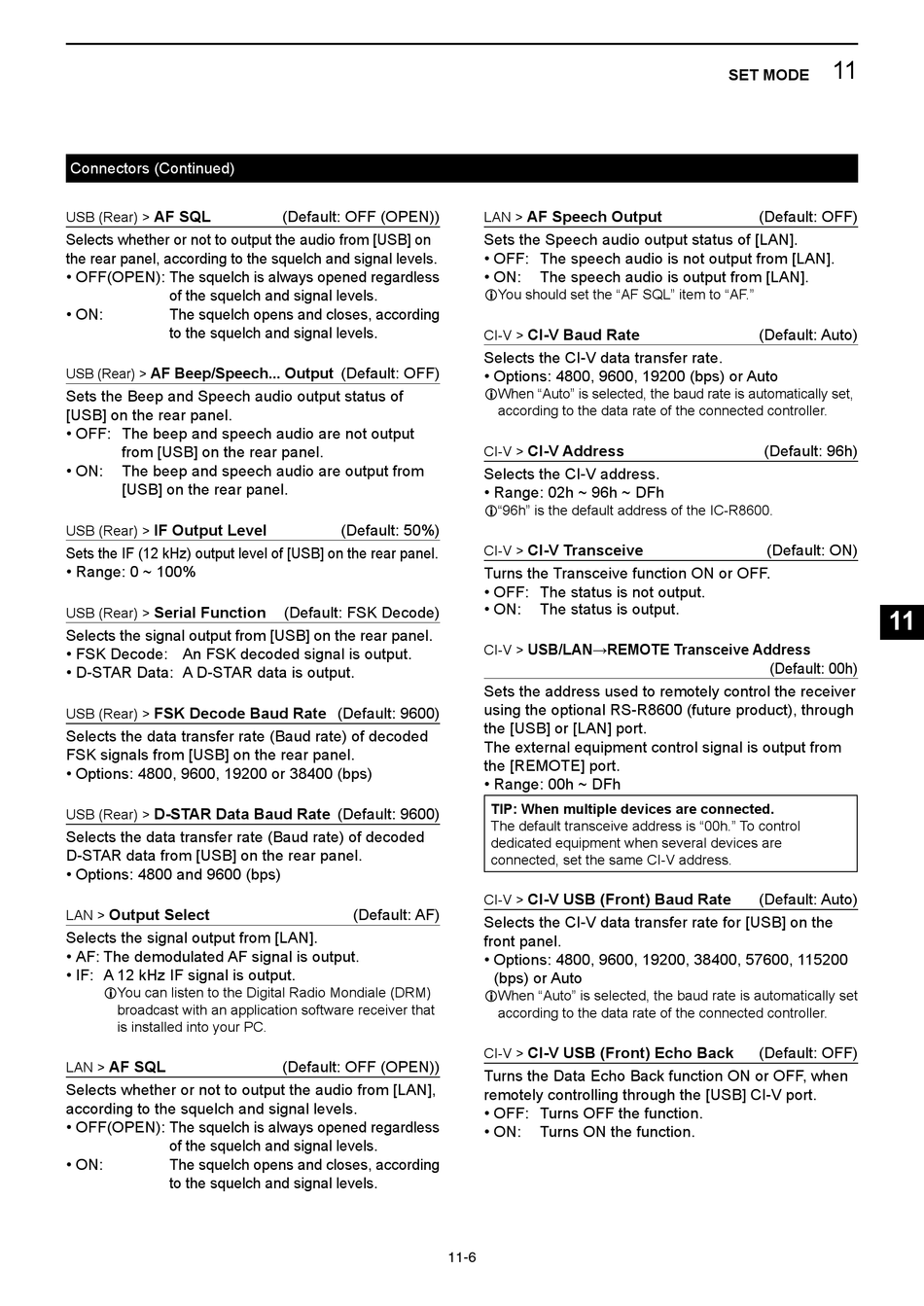

Icom IC-R8600 Instruction Manual page 73

Connectors (Continued)
AF SQL
USB (Rear) >
Selects whether or not to output the audio from [USB] on
the rear panel, according to the squelch and signal levels.
• OFF(OPEN): The squelch is always opened regardless
of the squelch and signal levels.
• ON: The squelch opens and closes, according
to the squelch and signal levels.
AF Beep/Speech... Output (Default: OFF)
USB (Rear) >
Sets the Beep and Speech audio output status of
[USB] on the rear panel.
• OFF: The beep and speech audio are not output
from [USB] on the rear panel.
• ON: The beep and speech audio are output from
[USB] on the rear panel.
IF Output Level
USB (Rear) >
Sets the IF (12 kHz) output level of [USB] on the rear panel.
• Range: 0 ~ 100%
Seriml Function
USB (Rear) >
Selects the signal output from [USB] on the rear panel.
• FSK Decode: An FSK decoded signal is output.
• D-STAR Data: A D-STAR data is output.
FSK Decode Bmud Rmte (Default: 9600)
USB (Rear) >
Selects the data transfer rate (Baud rate) of decoded
FSK signals from [USB] on the rear panel.
• Options: 4800, 9600, 19200 or 38400 (bps)
D-STAR Dmtm Bmud Rmte (Default: 9600)
USB (Rear) >
Selects the data transfer rate (Baud rate) of decoded
D-STAR data from [USB] on the rear panel.
• Options: 4800 and 9600 (bps)
Output Select
LAN >
Selects the signal output from [LAN].
• AF: The demodulated AF signal is output.
• IF: A 12 kHz IF signal is output.
L You can listen to the Digital Radio Mondiale (DRM)
broadcast with an application software receiver that
is installed into your PC.
AF SQL
LAN >
Selects whether or not to output the audio from [LAN],
according to the squelch and signal levels.
• OFF(OPEN): The squelch is always opened regardless
of the squelch and signal levels.
• ON: The squelch opens and closes, according
to the squelch and signal levels.
(Default: OFF (OPEN))
(Default: 50%)
(Default: FSK Decode)
(Default: AF)
(Default: OFF (OPEN))
11-6
AF Speech Output
LAN >
Sets the Speech audio output status of [LAN].
• OFF: The speech audio is not output from [LAN].
• ON: The speech audio is output from [LAN].
L You should set the "AF SQL" item to "AF."
CI-V Bmud Rmte
CI-V >
Selects the CI-V data transfer rate.
• Options: 4800, 9600, 19200 (bps) or Auto
L When "Auto" is selected, the baud rate is automatically set,
according to the data rate of the connected controller.
CI-V Address
CI-V >
Selects the CI-V address.
• Range: 02h ~ 96h ~ DFh
L"96h" is the default address of the IC-R8600.
CI-V Trmnsceive
CI-V >
Turns the Transceive function ON or OFF.
• OFF: The status is not output.
• ON: The status is output.
USB/LAN→REMOTE Transceive Address
CI-V >
Sets the address used to remotely control the receiver
using the optional RS-R8600 (future product), through
the [USB] or [LAN] port.
The external equipment control signal is output from
the [REMOTE] port.
• Range: 00h ~ DFh
TIP: When multiple devices mre connected.
The default transceive address is "00h." To control
dedicated equipment when several devices are
connected, set the same CI-V address.
CI-V USB (Front) Bmud Rmte
CI-V >
Selects the CI-V data transfer rate for [USB] on the
front panel.
• Options: 4800, 9600, 19200, 38400, 57600, 115200
(bps) or Auto
L When "Auto" is selected, the baud rate is automatically set
according to the data rate of the connected controller.
CI-V USB (Front) Echo Bmck
CI-V >
Turns the Data Echo Back function ON or OFF, when
remotely controlling through the [USB] CI-V port.
• OFF: Turns OFF the function.
• ON: Turns ON the function.
11
SET MODE
(Default: OFF)
1
2
3
(Default: Auto)
4
5
6
(Default: 96h)
7
8
9
(Default: ON)
10
11
12
(Default: 00h)
13
14
15
16
17
18
(Default: Auto)
19
20
21
(Default: OFF)
