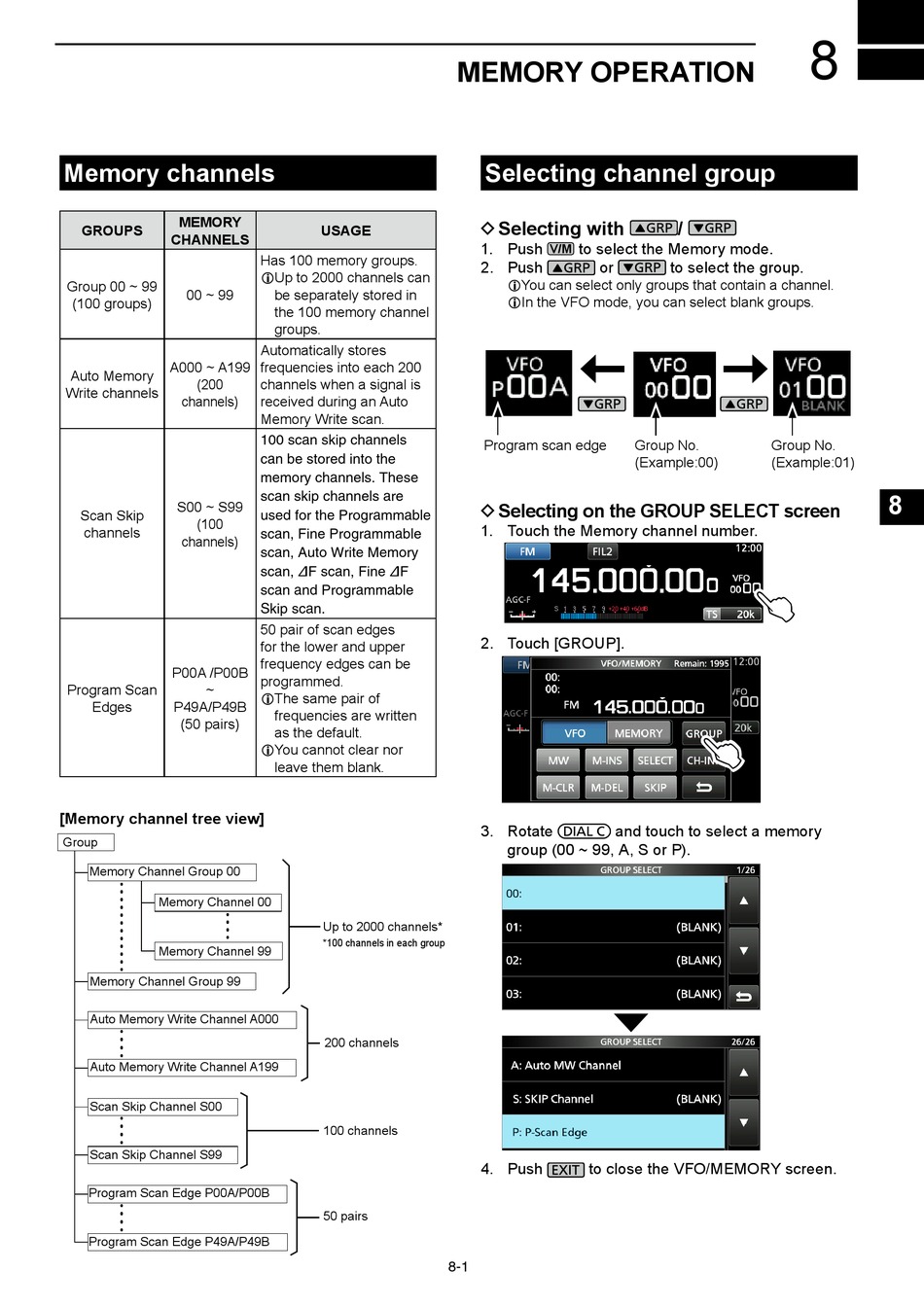

Memory channels

MEMORY
GROUPS
CHANNELS
Group 00 ~ 99
00 ~ 99
(100 groups)
A000 ~ A199
Auto Memory
(200
Write channels
channels)
S00 ~ S99
Scan Skip
(100
channels
channels)
P00A /P00B
Program Scan ~
Edges P49A/P49B
(50 pairs)
[Memory channel tree view]
Group
Memory Channel Group 00
Memory Channel 00
Memory Channel 99
Memory Channel Group 99
Auto Memory Write Channel A000
Auto Memory Write Channel A199
Scan Skip Channel S00
Scan Skip Channel S99
Program Scan Edge P00A/P00B
Program Scan Edge P49A/P49B
USAGE
Has 100 memory groups.
L Up to 2000 channels can
be separately stored in
the 100 memory channel
groups.
Automatically stores
frequencies into each 200
channels when a signal is
received during an Auto
Memory Write scan.
100 scan skip channels
can be stored into the
memory channels. These
scan skip channels are
used for the Programmable
scan, Fine Programmable
scan, Auto Write Memory
scan, ∂F scan, Fine ∂F
scan and Programmable
Skip scan.
50 pair of scan edges
for the lower and upper
frequency edges can be
programmed.
L The same pair of
frequencies are written
as the default.
L You cannot clear nor
leave them blank.
Up to 2000 channels*
*100 channels in each group
200 channels
100 channels
50 pairs
MEMORY OPERATION

Selecting channel group

D Selecting with
1. Push to select the Memory mode.
V/M
2. Push or
L You can select only groups that contain a channel.
L In the VFO mode, you can select blank groups.
Program scan edge

D Selecting on the GROUP SELECT screen

1. Touch the Memory channel number.
2. Touch [GROUP].
3. Rotate and touch to select a memory
group (00 ~ 99, A, S or P).
4. Push to close the VFO/MEMORY screen.
8-1
8
/
to select the group.
