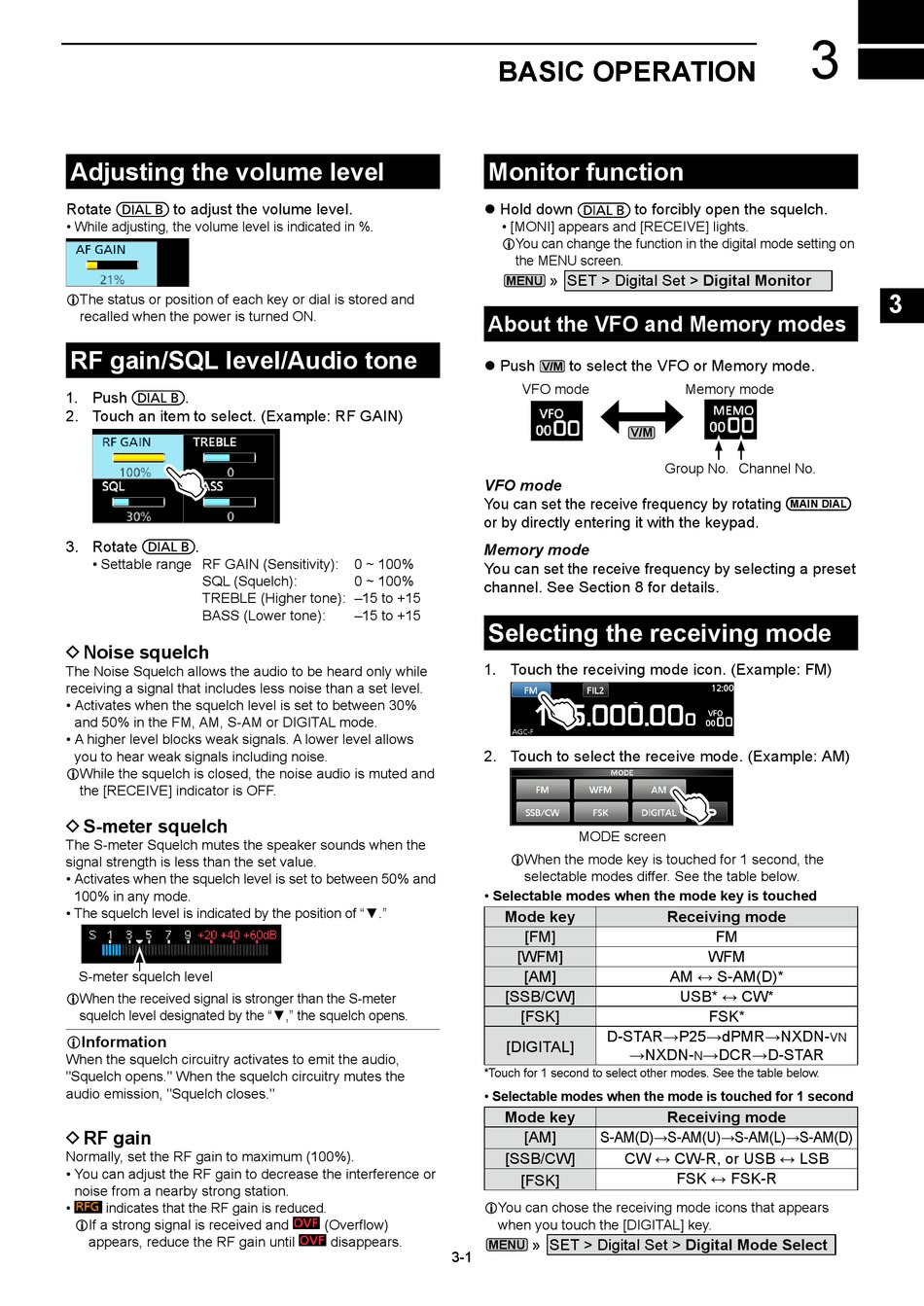

Adjusting The Volume Level; Rf Gain/Sql Level/Audio Tone; Dnoise Squelch; Ds-Meter Squelch - Icom IC-R8600 Instruction Manual

Adjusting the volume level

Rotate to adjust the volume level.
• While adjusting, the volume level is indicated in %.
L The status or position of each key or dial is stored and
recalled when the power is turned ON.

RF gain/SQL level/Audio tone

1. Push .
2. Touch an item to select. (Example: RF GAIN)
3. Rotate .
• Settable range RF GAIN (Sensitivity):
SQL (Squelch):
TREBLE (Higher tone): –15 to +15
BASS (Lower tone):
D Noise squelch
The Noise Squelch allows the audio to be heard only while
receiving a signal that includes less noise than a set level.
• Activates when the squelch level is set to between 30%
and 50% in the FM, AM, S-AM or DIGITAL mode.
• A higher level blocks weak signals. A lower level allows
you to hear weak signals including noise.
L While the squelch is closed, the noise audio is muted and
the [RECEIVE] indicator is OFF.
D S-meter squelch
The S-meter Squelch mutes the speaker sounds when the
signal strength is less than the set value.
• Activates when the squelch level is set to between 50% and
100% in any mode.
• The squelch level is indicated by the position of "▼."
S-meter squelch level
L When the received signal is stronger than the S-meter
squelch level designated by the "▼," the squelch opens.
Lnformation
L
When the squelch circuitry activates to emit the audio,
"Squelch opens." When the squelch circuitry mutes the
audio emission, "Squelch closes."
D RF gain
Normally, set the RF gain to maximum (100%).
• You can adjust the RF gain to decrease the interference or
noise from a nearby strong station.
• indicates that the RF gain is reduced.
L If a strong signal is received and
appears, reduce the RF gain until
