INStALLAtIoN

Cables

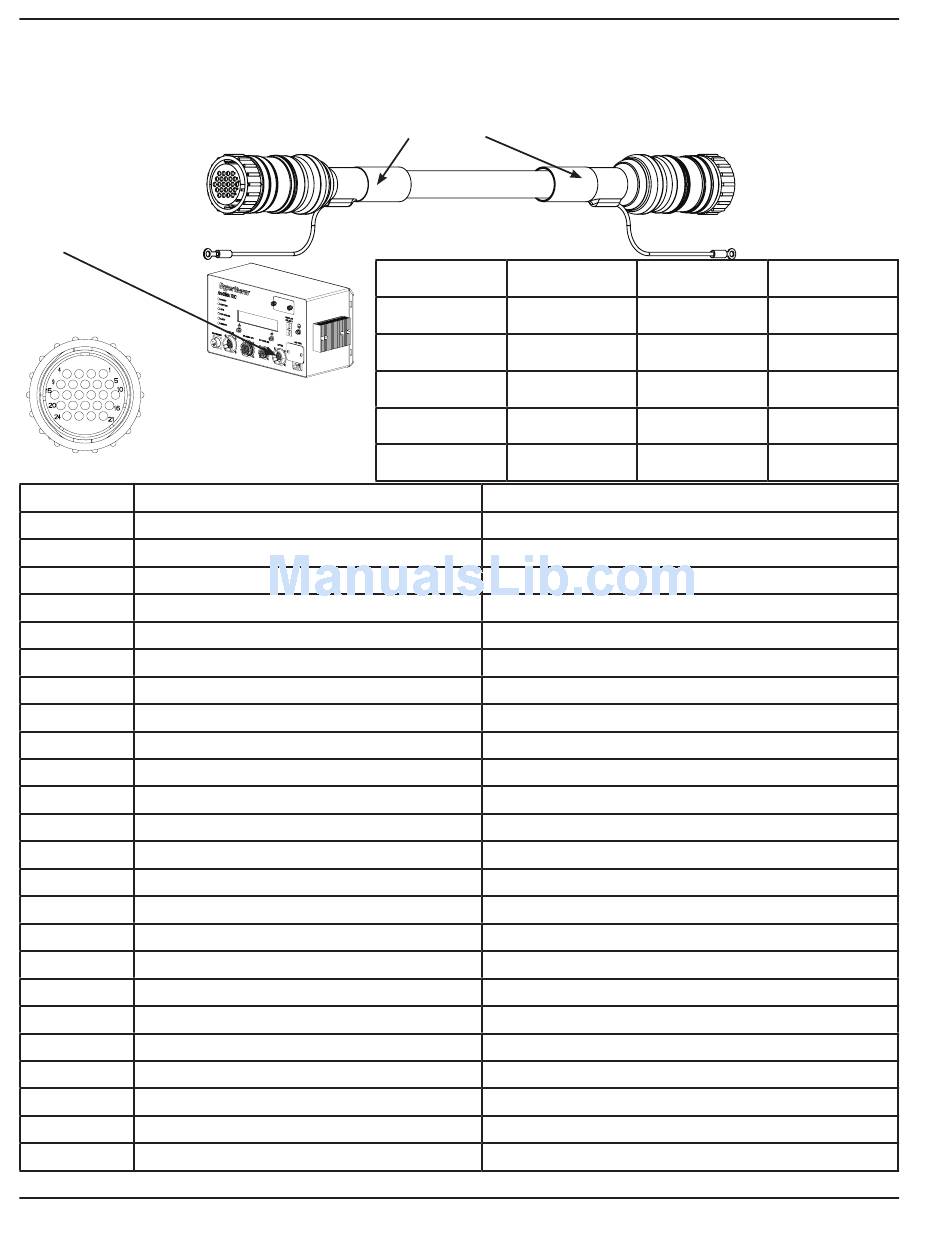

Lifter interface cable

Connect one end to the
connector on the control
module with the red
circle.
Pin number* Color
1 Red (16 AWG)
2 Black (16 AWG)
3 Black (18 AWG)
4 Brown (22 AWG)
5 Brown (18 AWG)
6 Gray (22 AWG)
7 White (22 AWG)
8 Violet (22 AWG)
9 Black (22 AWG)
10 Red (22 AWG)
11 White/Blue (22 AWG)
12 Blue (22 AWG)
13 White/Yellow (22 AWG)
14 Yellow (22 AWG)
15 White/Black (22 AWG)
16 White/Red (22 AWG)
17 Green (22 AWG)
18 Orange (22 AWG)
19 White/Violet (22 AWG)
20 White/Orange (22 AWG)
21 White/Green (22 AWG)
22 White/Gray (22 AWG)
23 White/Brown (22 AWG)
24
* Pin numbers are the same on both ends of the cable.
2-38
Red band
Part number Length
223219 3.0 m (10 ft)
223220 6.0 m (20 ft)
223120 7.5 m (25 ft)
223221 10.5 m (35 ft)
223007 15.0 m (50 ft)
Signal name
Motor +
Motor –
Brake –
Common –
Power +24 VDC
Ohmic contact sense common
Ohmic contact sense
Ohmic contact sense bias +12 VDC
Encoder common
Lifter station active
Encoder input B –
Encoder input B +
Encoder input A –
Encoder input A +
Common –
Change consumables switch+
Lifter down switch +
Lifter up switch +
Breakaway switch+
Upper limit switch +
Lower limit switch +
Not connected
Common –
Not connected
Connect one end to
the top of the lifter.
Part number Length
223115 23.0 m (75 ft)
223116 30.5 m (100 ft)
223117 45.5 m (150 ft)
223118 61.0 m (200 ft)
