Arcglide Thc With Discrete Connection To A Picopath Cnc And Hpr Or Hpr Xd Plasma System - Hypertherm ArcGlide Torch Height Control Instruction Manual

to CNC RS-422
port, terminate as
required
oeM-supplied
serial cable
Db37 female
HPR control PCb
Db37 male
Cable 223192
without serial
Db37 female
(with red
heatshrink)
ArcGlide THC Instruction Manual
ArcGlide
HMI address
1
CNC with Picopath interface and serial communication
ArcGlide HMI
Axes 3,4
AXES 3,4
address 1
Axes 1,2
AXES 1,2
I/o
I/O
RS-422 serial
port
oeM-
supplied
serial cable
to plasma interface assembly

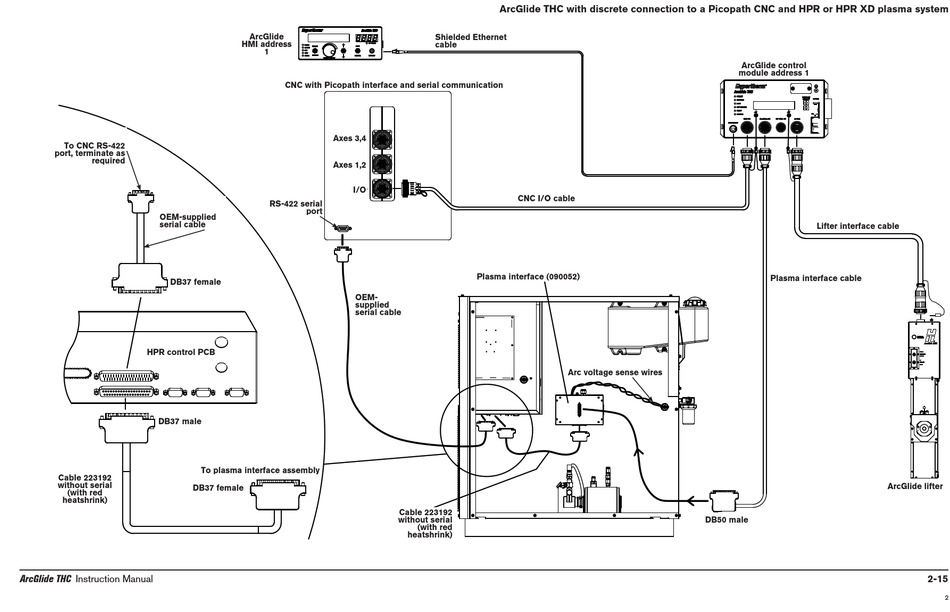

ArcGlide tHC with discrete connection to a Picopath CNC and HPR or HPR XD plasma system
Shielded ethernet
cable
CNC I/o cable
Plasma interface (090052)
Arc voltage sense wires
Cable 223192
without serial
(with red
heatshrink)
ArcGlide control
module address 1
Lifter interface cable
Plasma interface cable
Db50 male
ArcGlide lifter
2-15
2
