Arcglide Cnc Interface With Discrete Connection To A Picopath Cnc - Hypertherm ArcGlide Torch Height Control Instruction Manual

CNC with Picopath interface
Axes 3, 4
Axes 1,2
I/o
Picopath CNC end (A), terminated during installation
Pin function Phoenix mapping name
32 Output 12 Cut control
31 Output 11 Hold ignition
30 Output 10 Torch height disable
12 Input 12 Cut sense 1
⊂
Jumper together
11 Input 11 Torch collision
⊂
Jumper together
External switch
37 24 V Common
Backshell Ground
• Start with Hypertherm-supplied ArcGlide CNC interface cable and terminate the Picopath end.
• This example uses CNC outputs 10, 11, 12, and inputs 11 and 12. Map I/O in Phoenix software accordingly.
• Multiple wires are the same color. Verify pin-to-pin connections before plugging cables into equipment.
• Incorrect wiring can cause permanent damage to Picopath or ArcGlide circuits.
• Set ArcGlide CNC inputs to dry with the slide switch on the control module.
• ArcGlide interlock must be satisfied (closed) to enable ArcGlide motion.
ArcGlide THC Instruction Manual
Picopath connector kit
(228490)
A
ArcGlide end (b), terminated by Hypertherm
Wire color Pin Signal
Red 1 Cycle start input+
Blue 7 IHS sync input+
Green 5 AVC disable input +
Green 17 Machine motion output A
Red 18 Machine motion output B
Blue 29 Common
Yellow 21 Torch breakaway output A
Red 22 Torch breakaway output B
Green 30 Common
Orange 25 Interlock input+
Red 26 Interlock input -
Yellow 31 Common
Ground

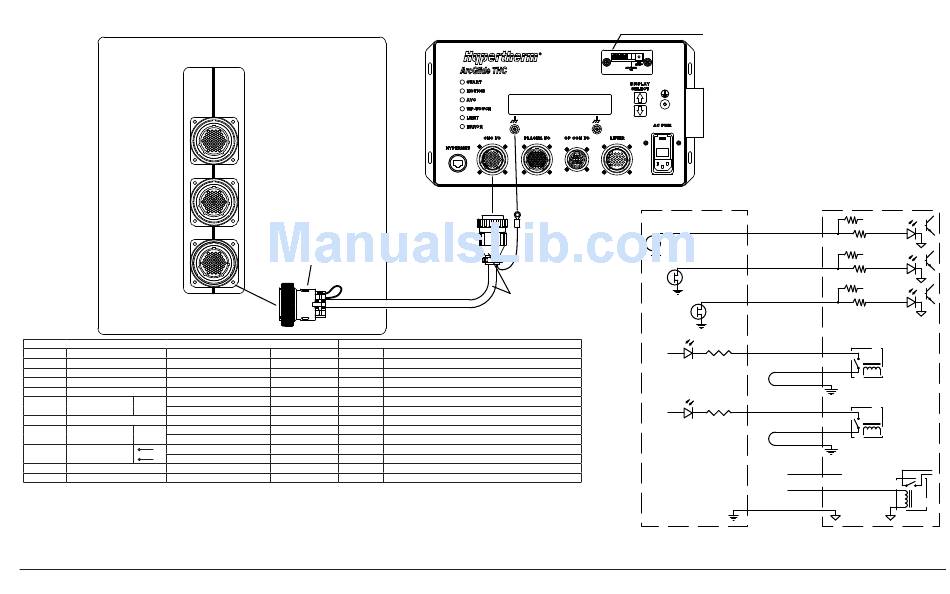

ArcGlide CNC interface with discrete connection to a Picopath CNC
