Arcglide Thc With Discrete Communication To Picopath Cnc And Hsd130 Plasma System - Hypertherm ArcGlide Torch Height Control Instruction Manual

Voltage sensing, torch height control (thc) system that is designed for plasma cutting applications on an x-y cutting table
Hide thumbs
Table of Contents

Advertisement

ArcGlide HMI address 1
CNC with Picopath interface
Axes 3,4
Axes 1,2
I/o
Plasma
interface
(090052)
Arc voltage sense wires. Use ~0.9 mm squared (18 AWG) twisted pair
wire, rated 600 V or greater
ArcGlide THC Instruction Manual
ArcGlide control
module address 1
Shielded ethernet cable
CNC I/o cable
Plasma interface I/o cable
Db50
Db37
Db37
Interface cable 123209

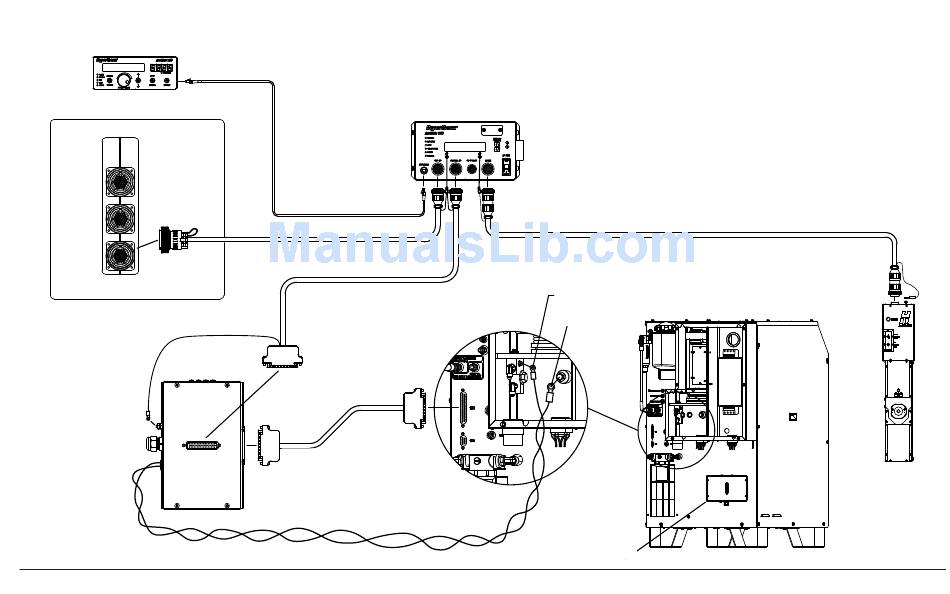

ArcGlide tHC with discrete communication to Picopath CNC and HSD130 plasma system

Lifter interface cable
electrode (-)
Work (+)
Plasma interface,
mounted externally by
customer.
HSD130
ArcGlide lifter
2-19
2
