Main parameters

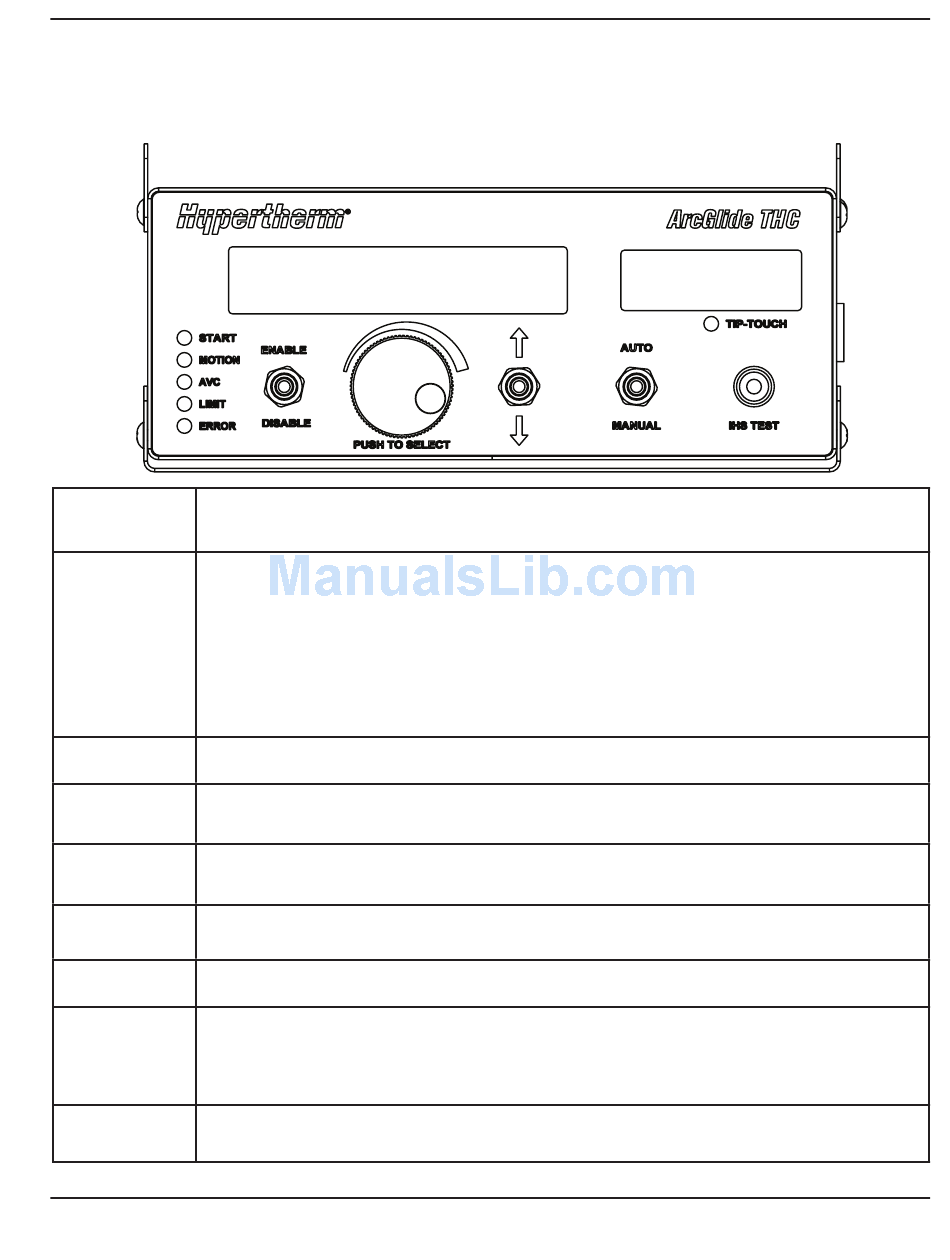

The Main screen is the primary display that the operator sees during normal operation.
HMI Parameter Value
Use the Auto/Manual switch to select automatic or manual operation:
• Auto = Automatic torch height sequencing ( IHS, Cut Height, AVC, Retract). See Diagnostics
Operation mode
• Manual = Torch height changes with manual commands only.
and the current
THC state
Use the Enable/Disable switch to enable or disable the torch:
• Disabled = The torch retracts to Home position and Parks. If it is capable, the plasma system
Errors The latest, and currently active error condition, sent from the control module.
50 V to 300 V with 0.1-volt resolution. This line displays only if Sampled Arc Voltage is not
Set Volts
enabled.
Inch or equivalent mm – 0.254 mm to 25.40 mm (0.01 in to 1.0 in) with 0.254 mm (0.01 in)
Cut Height
resolution
Inch or equivalent mm – 0.254 mm to 25.40 mm (0.01 in to 1.0 in) with 0.254 mm (0.01 in)
Pierce Height
resolution
Pierce Delay 0 to 10 seconds with 0.01 second resolution
When AVC is enabled (ON), Automatic Height Control is active in Auto mode. When AVC is
AVC Enabled disabled (OFF), the torch height sequences in Auto mode (IHS, Cut Height, Retract) but the torch
height remains fixed during the cut.
<Setup
Select this line to display the Setup Parameters menu.
Parameters>
ArcGlide THC Instruction Manual
Auto
NO ERRORS
Set Volts
Cut Height
for more information on control states.
powers down.
IDLE PARK
133.5v
0.13in
oPeRAtIoN
