Diagnostics screen

The Diagnostics display on the HMI provides information about errors that the HMI receives from the control module, the
control state of the cutting system, as well as whether Hypernet is enabled and diagnostics for the switches on the front
panel of the HMI. The following table provides details for the parameters that can appear on the Diagnostics display.
For detailed information about resolving errors, see the Maintenance section.

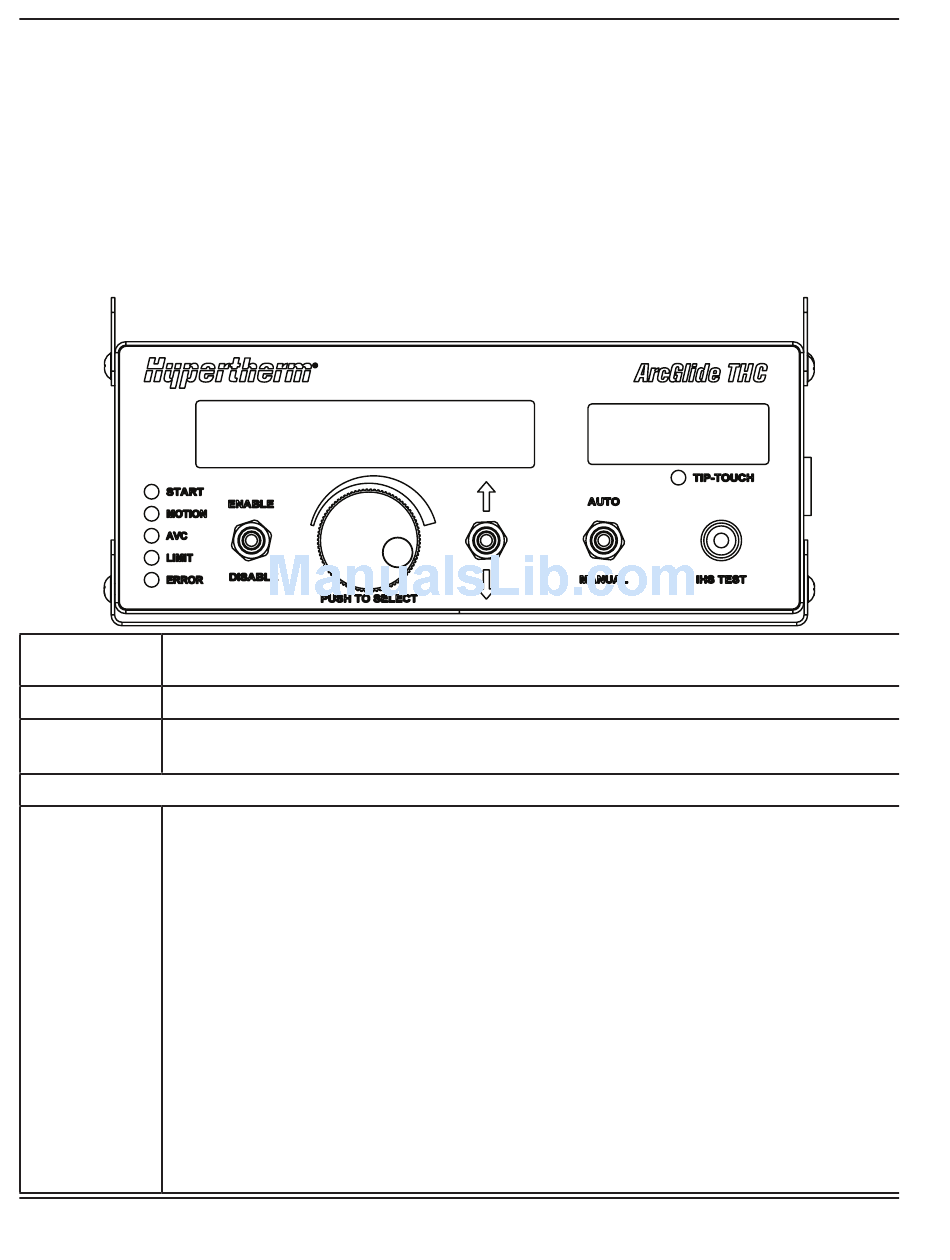

Diagnostics
HMI Parameter Value
<back> Return to Main display
Errors The latest and currently active error condition. Normal errors are cleared on the next start. Critical
errors must be corrected before the next start.
NO ERRORS
ERR 1 FLASH SETUPS
ERR 2 MAX SPEED EXCEEDED
ERR 3 LIFTER HOME TIMEOUT
ERR 4 PLATE CONTACT AT HOME
ERR 5 HOME LIM DURING OPR
ERR 6 LOWER LIM DURING OPR
3-14
2
<back>
NO ERRORS
Control State
Normal errors
0
Ready to start.
Checksum failed on stored setups in flash memory, the
THC is using default values.
A speed regulation problem occurred — the value for
Maximum Speed was exceeded.
Lifter did not return to home position within 20 seconds.
Ohmic contact with the workpiece at home position —
an invalid condition.
The Lifter reached the Home limit during auto operation.
The lifter reached the Lower limit during auto operation.
