Connect the ohmic wire to HPR XD plasma systems

Note Do not splice Ohmic wires.
To connect the Ohmic wire from an HPR XD torch to the ArcGlide lifter:
1. Remove the top cover of the motor compartment on the lifter.
2. Disconnect the existing Ohmic wire from the J5 connector on the underside of the lifter interface.
3. Remove the Ohmic wire from the motor compartment of the lifter.
4. Cut the terminal end off the Ohmic wire from the HPR XD torch and strip 5 mm (0.2 in) of the covering.
5. Insert the end of the Ohmic wire from the HPR XD system through the grommet in the bottom of the motor
compartment of the lifter.
6. Insert the stripped HPR XD Ohmic wire into the J5 connector on the underside of the lifter interface PCB.
7. Use tywraps to fasten the wire to the tywrap mounts on the inside back wall of the lifter compartment.
8. Refasten the top cover of the motor compartment.
ArcGlide THC Instruction Manual

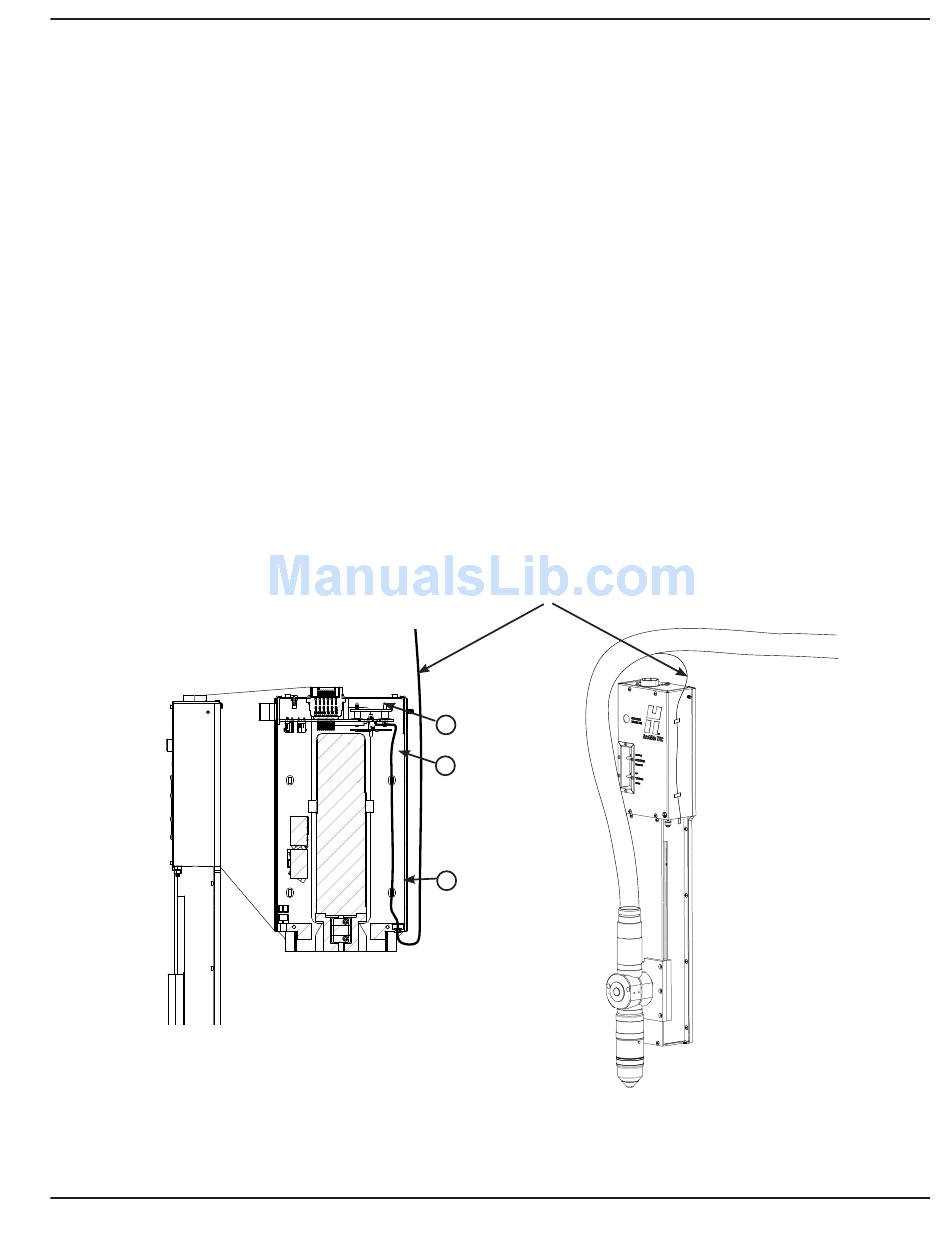

ohmic wire from HPR XD plasma system
Rear half of lifter compartment
Side of lifter
Connect the ohmic wire for an HPR XD plasma system
6
7
5
INStALLAtIoN
2-27
2
