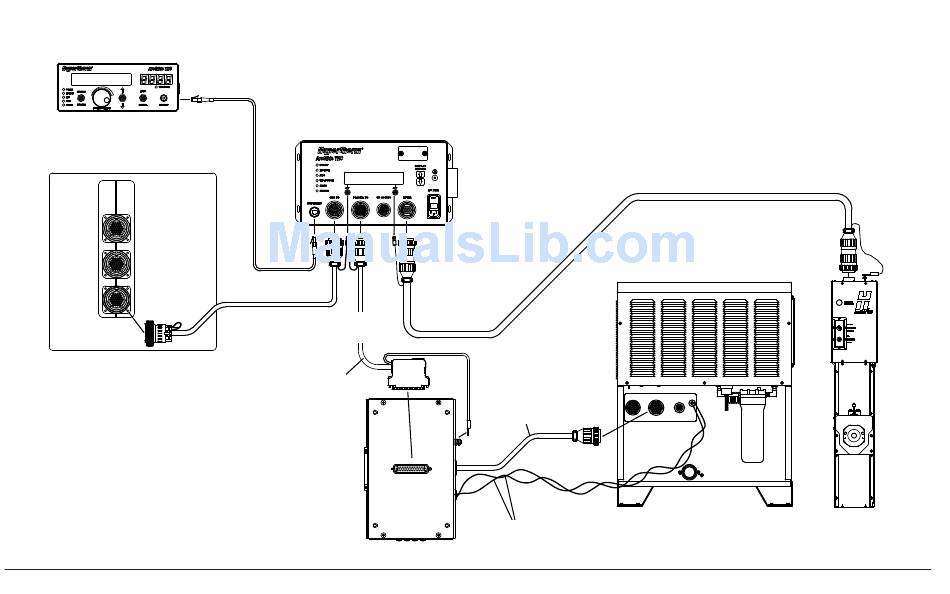

ArcGlide tHC with discrete connections to Picopath CNC and MAX200, Ht2000, or Ht2000 LHf plasma system
ArcGlide HMI
address set to 1
CNC with Picopath interface
Axes 3,4
Axes 1,2
I/o
2-20
2
Shielded ethernet cable
ArcGlide control module
address set to 1
CNC I/o cable
Plasma interface I/o cable
Plasma interface (090052)
MACHINE
1x6 Machine interface cable 1X6
to plasma system
Use ~0.9 mm squared (18 AWG) twisted pair wire, rated 600 V or greater
Lifter interface cable
MAX200
ArcGlide lifter
ArcGlide THC Instruction Manual
