MAINteNANCe

flow of ArcGlide operations

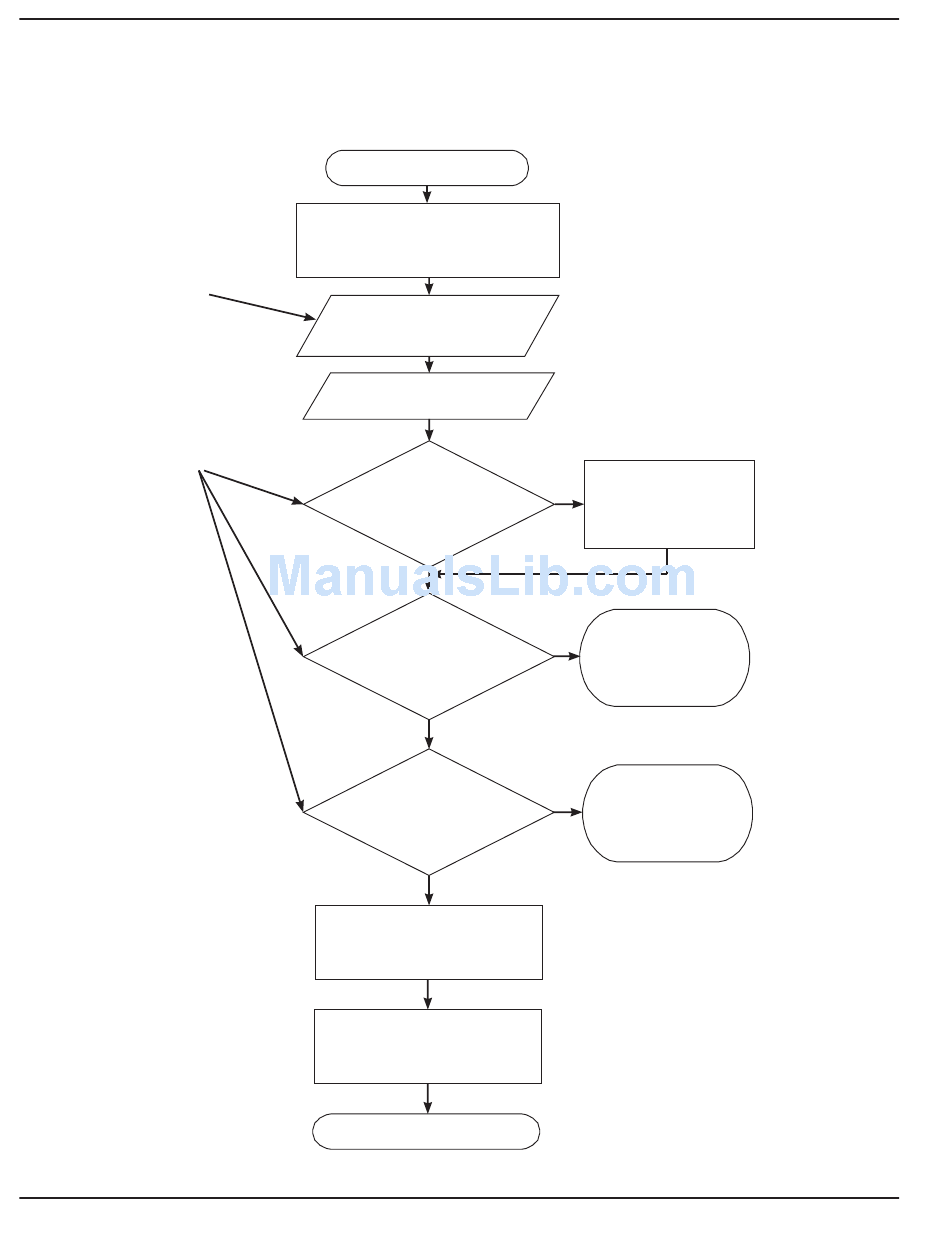

The flowchart on the following pages illustrate the sequence of states in the operation of an ArcGlide THC.
Setups were saved the last
time the THC shut down.
Immediately after the
THC powers ON, hold
the display select arrows
on the front of the control
module to restore defaults
or to enter built-in test
modes.
4-6
Power ON reset
Initialize uP clock, on-chip I/O, expansion
I/O.
Read stored setup parameters from
Flash.
Display splash screen.
Both up and down
display arrows?
no
Up display arrow?
no
Down
display
arrow?
no
Initialize Hypernet links.
Initialize watchdog timer.
Main loop

flow of ArcGlide operations

yes
Restore default setup
parameters
yes
Lifter friction test
yes
Lifter cycle test
ArcGlide THC Instruction Manual
Power OFF then
power ON to end test
mode.
Power OFF then
power ON to end test
mode.
