Configuration Examples; Multiple Arcglide Thcs With Hypernet Connection To An Edge Pro Cnc And Hpr Or Hpr Xd Plasma System - Hypertherm ArcGlide Torch Height Control Instruction Manual

(optional) HMI
(optional) HMI
eDGe Pro CNC
HYPERNET
ArcGlide THC Instruction Manual
Rotary address
switch, set to 1
Shielded ethernet cable, up to 61 m (200 ft)
Rotary address
switch, set to 2
5-, 8-, or 16-port industrial
ethernet switch
Hypernet plasma interface
(141161), installed in plasma
system (below)
Rotary address
switch set to 1

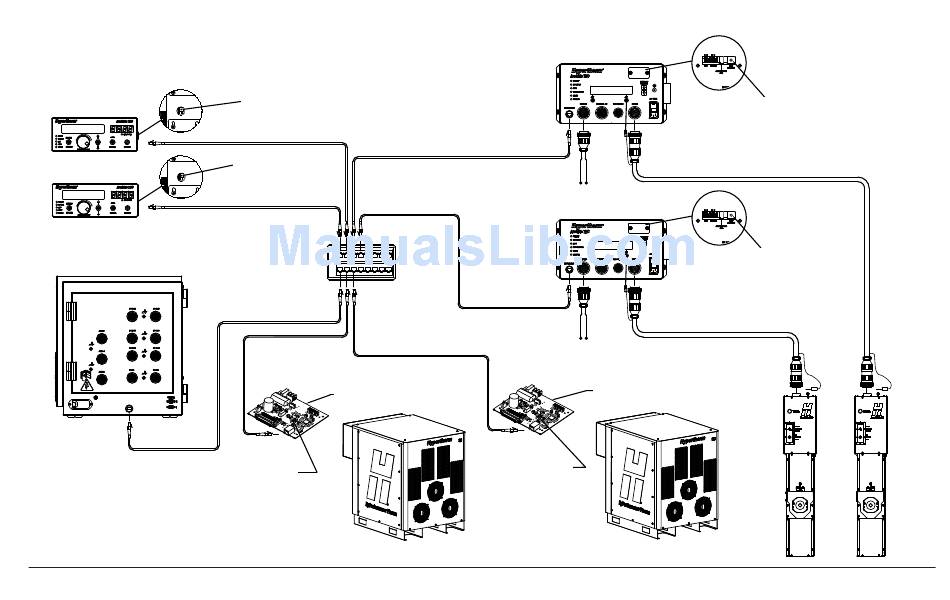

Multiple ArcGlide tHCs with Hypernet connection to an eDGe Pro CNC and HPR or HPR XD plasma system
ArcGlide control module
Interlock
ArcGlide control module
Interlock
Hypernet plasma interface
(141161) installed in plasma
system (below)
Rotary address
switch set to 2
HPR130, HPR260, HPR130XD,
HPR260XD, HPR400XD with
a built-in ethernet adapter or
optional ethernet kit.

Configuration examples

Rotary address
switch set to 1
Lifter interface cable
Rotary address
switch set to 2
Lifter interface cable
ArcGlide
lifters
2-13
2
