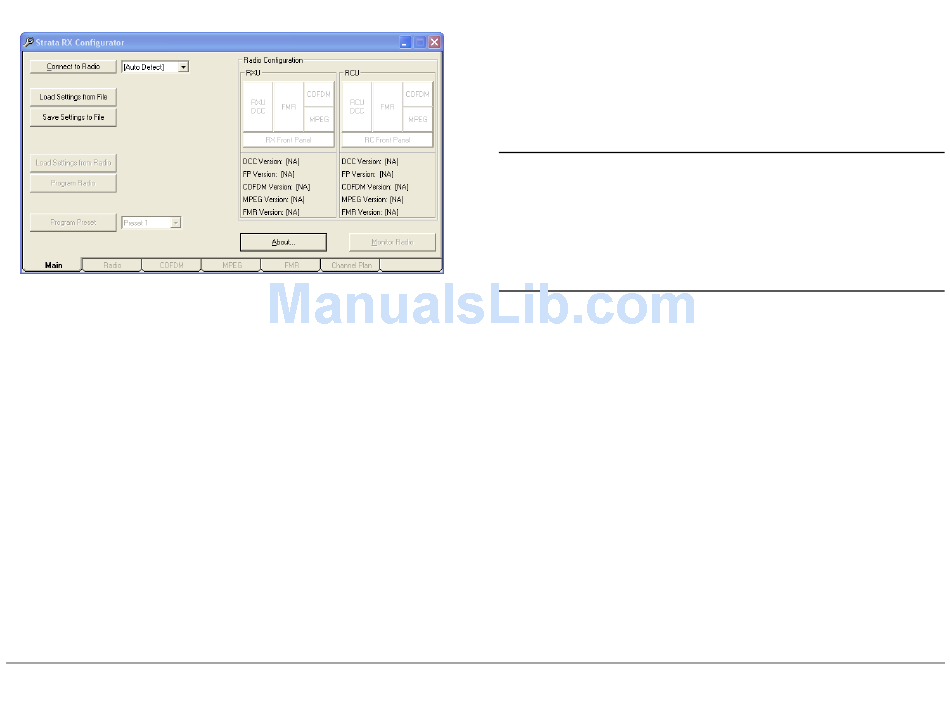

Figure 5-1: Main Page
3. Click on the system components for which you are
creating a configuration.
If you have an RXU, be sure to click on the RXU DCC
-
and RX Front Panel blocks. Also click on any other
blocks you wish to configure.
See Figure 5-2 for an example of an RXU-only
configuration.
If you have an RCU, be sure to click on the RCU DCC
-
and RC Front Panel blocks. Also click on any other
blocks you wish to configure.
See Figure 5-3 for an example of an RCU-only
configuration.
4. Select each Tab and make your choices for
Strata RX Technical Reference Manual
settings on that Page.
See Figure 5-4 for an example of a configuration
containing both an RXU and an RCU.
See Appendix C for details of the choices on each
page.
Note
5. When your configuration is complete, save it to a
file.
See "Saving the Configuration to a File" on page 5-8.
Advanced Operation
You may notice that some of the choices on the
Pages are greyed out and not operating. This is
typically because the Operation Mode setting for
that Preset (on the Radio Page) is set to a mode
that does not use this choice.
For more details see Appendix C.
5-3
