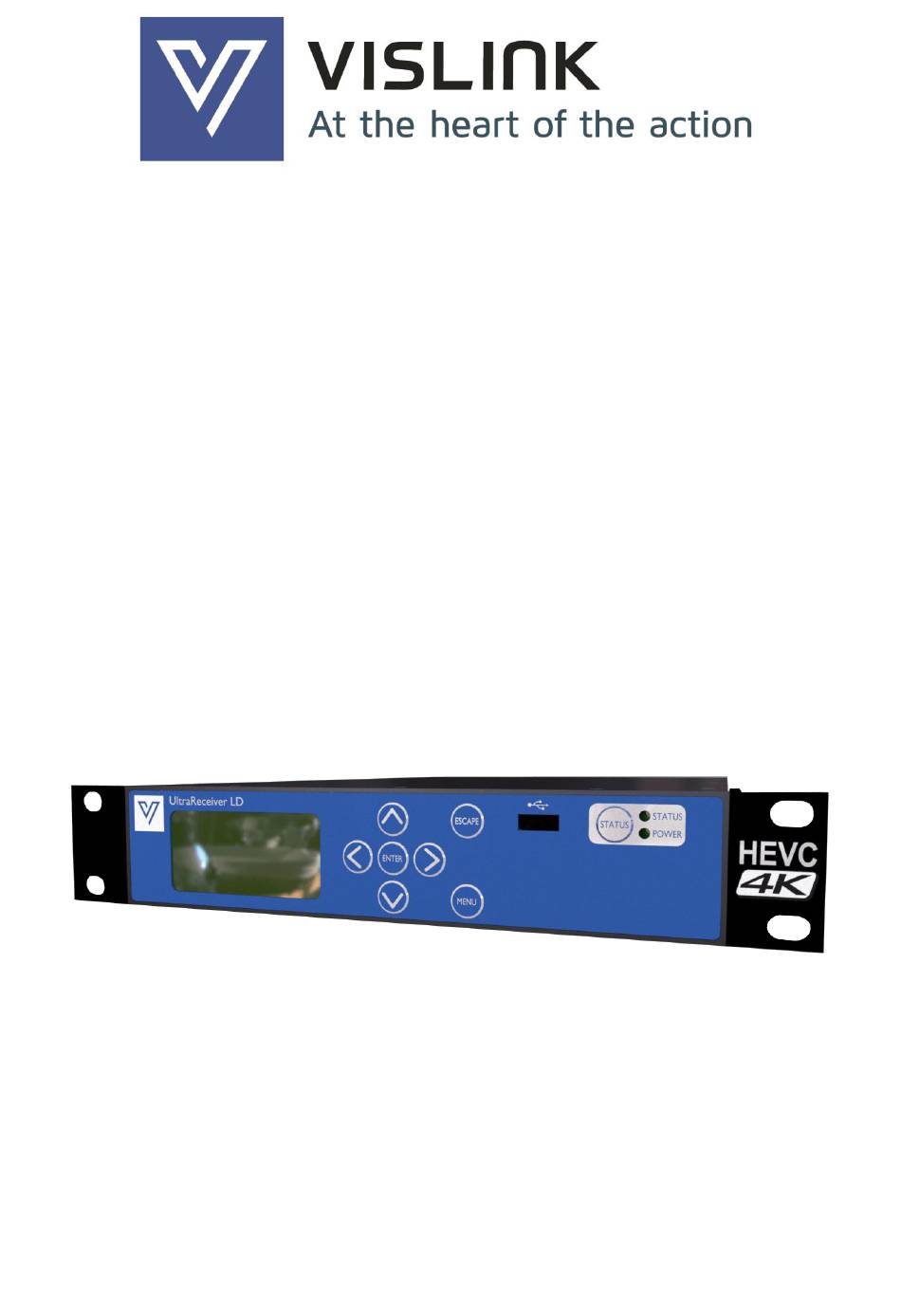

UltraReceiver LD
User Manual
Vislink Technologies, Inc., Waterside House, Earls Colne Business Park, Colchester, Essex, CO6 2NS, UK
Telephone: +44 (0)1442 431300 ● Facsimile: +44 (0) 1494 775356 ● Email: sales@vislink.com ● Website: www.vislink.com
Company Registered in England & Wales no. 10523708 ● VAT registration no. GB 260 012 169
Registered Office: Waterside House, Earls Colne Business Park, Colchester, Essex, CO6 2NS, UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraReceiver LD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vislink UltraReceiver LD

Summary of Contents for Vislink UltraReceiver LD

  • Page 1 Vislink Technologies, Inc., Waterside House, Earls Colne Business Park, Colchester, Essex, CO6 2NS, UK Telephone: +44 (0)1442 431300 ● Facsimile: +44 (0) 1494 775356 ● Email: sales@vislink.com ● Website: www.vislink.com Company Registered in England & Wales no. 10523708 ● VAT registration no. GB 260 012 169...
  • Page 2 Document Disclaimer The information contained in this manual remains the property of Vislink and may not be used, disclosed or reproduced in any other form whatsoever without the prior written permission of Vislink. Vislink reserves the right to alter the equipment and specification appertaining to the equipment described in this manual without notification.
  • Page 3 Updated section 5.7.2 with new webpage example. Updated Section 5.6 Menu Overview V7008 2.01 30/01/2020 Minor update to Table 5-3 correcting the AAC audio pair numbering. V7008 decoder only variant Issue No: 2.01 Page: iii Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 4: Table Of Contents

    3.12.10. Ethernet – Control ....................... 12 4. Controls ......................... 13 4.1. Selection Keys ........................13 4.2. Menu Scroll Keys ........................13 4.3. Hot Keys ..........................14 4.4. LEDs ............................14 Issue No: 2.01 Page: iv Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.
  • Page 5 Down-Converter Type ......................29 6.3. Decoder ........................... 29 6.4. Decryption ..........................29 7. Licenses and Upgrades ..................31 7.1. Licensing ..........................31 7.2. Firmware Upgrades ......................31 Issue No: 2.01 Page: v Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.
  • Page 6 Figure 2-1 Internal Architecture Overview ................6 Figure 3-1 Input / Output Connections ..................9 Figure 4-1 UltraReceiver LD Front Panel ................13 Figure 4-2 MER (Modulation Error Ratio) Display ..............14 Figure 5-1 Web Page Example ....................25 Table of Tables Table 1-1 Minimum Safe Distance Recommendations Table ..........

  • Page 7: Safety And Compliance

    RF power may be present. CAUTION: We strongly recommended returning all RF equipment to Vislink for servicing. WARNING: GaAs / BeO Hazard: Certain components inside the equipment contain Gallium Arsenide and Beryllium Oxide that are toxic substances.

  • Page 8: Disposal Instructions

    NOTE: In Europe dispose of all equipment in accordance with the European Environmental directive. 1.3. Environmental CAUTION: Protect the unit from dripping or splashing water/fluids. When used outdoors, protect the unit using a rain cover. Issue No: 2.01 Page: 2 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 9: Health & Safety

    It is important to note that the guidelines adopted differ throughout the world and are from time-to- time re-issued with revised guidelines. For Vislink use, when calculating minimum safe working distances, apply a maximum power density limit (w) of 1w/m².

  • Page 10: Maximum Rf Power Density Limits

    Different power density / frequency characteristics are presented in the two documents. To avoid complexity and to avoid areas of uncertainty, Vislink recommends the use of a single power density limit across the frequency range 100 kHz to 300 GHz. The 1w/m² power density limit we recommend satisfies the most stringent of the guidelines published to date.

  • Page 11: Introduction

    UltraReceiver LD User Manual Introduction 2. Introduction The UltraReceiver LD is a flexible, high performance product, based on compact DVB-T and LMS-T demodulators. It uses the Vislink Maximum Ratio Combining diversity algorithm and a combined MPEG-2, H.264 and HEVC UHD/HD/SD decoder.

  • Page 12: Figure 2-1 Internal Architecture Overview

    RF inputs and/or the external ASI. The ASI Stream routes to the Decoder board to generate the Video and Audio outputs. The Decoder also extracts embedded (or ’wayside’) RS232 data (if present in the transmission). It also handles return data to a VISLINK Camera Control System, such as FocalPoint. Issue No: 2.01 Page: 6 Ref: ULRXLD-ASUM-700X Copyright ©...

  • Page 13: Specification

     4 x 3G-SDI SMPTE-424M (UHD)  1 x HD-SDI SMPTE-424M (HD) 3.7. Video Decode Standards  HEVC (H.265) UHD & HD  MPEG-4 AVC (H.264) HD  MPEG-2 Issue No: 2.01 Page: 7 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 14: Audio Decode Standards

     3.10. Optional Licenses NOTE: Licenses are available to purchase online via www.vislink.shop or contact your local Regional Sales Manager (RSM) or email sales@vislink.com.  HEVC 4K, UHD  HEVC Dual HD  H.264, SD/HD  Demodulator 4 channel inputs ...

  • Page 15: Input / Output Connections

     1 x Switchable confidence monitor / ASI output  1 x ASI output (complies with ISO/IEC 13818-2 – 188-byte mode)  Wayside data channel output  IP Video connection (Ethernet RJ45) (not used) Issue No: 2.01 Page: 9 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 16: Pinout Information

    75Ω mini-BNC chassis mounted socket. Complies with ISO/IEC 13818-2 – 188- byte mode. Route the ASI output from the Demodulator or external ASI input for decoding by an external decoder or chaining to another UltraReceiver LD. Issue No: 2.01 Page: 10 Ref: ULRXLD-ASUM-700X Copyright ©...

  • Page 17: Ctrl/Data

     Clip level 18dB  THD < 0.1%  20Hz to 18kHz ±0.25dB  Crosstalk >60dB minimum  Signal to noise ratio >66dB RMS 3.12.8. Audio 2 Not used. Issue No: 2.01 Page: 11 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 18: Alarm

    SNMP MIB link as the reference for any SNMP application. To configure the unit via the inbuilt web page, see Section 5.7 to connect to the unit. Issue No: 2.01 Page: 12 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 19: Controls

    Some menus display ‘V’ at the side of the list, this indicates there are more options. Use the down arrow to show more options. Pressing ESCAPE in this instance takes you back to the previous menu. Issue No: 2.01 Page: 13 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 20: Hot Keys

    Use the front panel USB port to update the unit software. Use a suitable USB memory stick for code updates. NOTE: The USB port is not for remote control or for charging mobile devices. Issue No: 2.01 Page: 14 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 21: Main Display

    The unit allows configuration to select the downconverter type and to turn on power to the downconverter. The unit lists all current Vislink downconverters. You can enter the Local Oscillator (LO) frequency of any unlisted downconverter by selecting the OTHER option.

  • Page 22: Decoder Menus

    Adjust Video PTS and Audio PTS values to correct for A/V delay errors. Set any Vislink HEVC transmitter values to zero. See Table 5-1 or Table 5-2 for Video PTS values when decoding Vislink H.264 Clip-on4 or L17xx transmitters. Clip-on4 – H.264 PTS Settings...

  • Page 23: Service

    Adjust the analogue audio output levels using the Audio level menus. 5.2.5. De-Scrambling Configure BISS-1 or BISS-E decryption keys. NOTE: De-Scrambling not available in HEVC Dual HD. Issue No: 2.01 Page: 17 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 24: Genlock

     Video 1  Video 3 Decoder 2 Outputs:  Video 2  Video 4 NOTE: Analogue Audio 1 XLR connections are only rooted from Decoder 1. Issue No: 2.01 Page: 18 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 25: Unit Setup Menu

    Reboot Table 5-6 Defaults Menu Overview 5.3.4. Licenses Enter license codes and display which features you have licensed in the unit. See Section 7.1 for more details. Issue No: 2.01 Page: 19 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 26: Time

    5.4. Support Menu The Support menus display useful information. This information helps if you need to contact Vislink. In particular, the versions of the various modules in the unit. 5.4.1. Diagnostics The unit can display detailed information on the performance of the unit.
  • Page 27 Audio 1..8 PID Video rate AUDIO Audio 1..2 mode Analogue source Audio level (Left) Audio level (Right) DE-SCRAMBLING Mode GENLOCK Genlock mode Line offset Pixel offset Genlock status Issue No: 2.01 Page: 21 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.
  • Page 28 Restore Defaults Reboot Unit LICENCES Licence state Licence state Licence state FEATURES 4K and UHD H.264 4 Input Demod 4 Input Dual Pedestal Diversity De-scrambling De-interleaving TIME Issue No: 2.01 Page: 22 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.
  • Page 29 Input 4 MER TEMPERATURES Unit temperature Decoder temp DOWN CONVERTER LNB 1 Current LNB 2 Current LNB 3 Current LNB 4 Current CONTACT SUPPORT PORTAL Support information Issue No: 2.01 Page: 23 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 30: Webserver Operation Over Rj45 Port

    Ethernet network using a standard or crossover Ethernet cable. 5.7.1. How Do I Set Up a Basic Connection? To make individual UltraReceiver LD configuration easier, access the inbuilt menu system using the integrated webserver. To connect to the webserver over the RJ45 network port, follow this procedure: 1.

  • Page 31: Accessing The Ultrareceiver Low Delay Via Web Browser

    3. Now make your required configuration changes to the unit using the webpage. Figure 5-1 Web Page Example 5.7.3. Routing Page This webpage gives a diagrammatic view of the signal routing within the receiver. Issue No: 2.01 Page: 25 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.
  • Page 32 UltraReceiver LD User Manual Main Display This page is intentionally unused. Issue No: 2.01 Page: 26 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 33: Receiver Setup

    The DVB-T bandwidths:  6, 7 & 8 MHz Please Wait NOTE: After any change, a screen stating “ ” displays while the unit loads the new settings. Issue No: 2.01 Page: 27 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 34: Dvb-T Operation

    21.112 14.929 16.588 17.564 18.096 19.906 22.118 23.419 24.128 22.394 24.882 26.346 27.144 64-QAM 24.882 27.647 29.273 30.16 26.126 29.029 30.737 31.668 Table 6-2 DVB-T Bitrate Operation Issue No: 2.01 Page: 28 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 35: Lms-T Operation

    The receiver can provide various decryption options depending on the license options for the unit. First, select the required decryption algorithm then enter the appropriate key. Enter the key from the front panel or web page. NOTE: Contact Vislink for decryption availability. Issue No: 2.01 Page: 29 Ref: ULRXLD-ASUM-700X...
  • Page 36 UltraReceiver LD User Manual Receiver Setup This page is intentionally unused. Issue No: 2.01 Page: 30 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.

  • Page 37: Licenses And Upgrades

    Hardware serial numbers are located on the unit’s chassis. 7.2. Firmware Upgrades To upgrade the unit’s firmware, refer to the firmware release note for your unit. Firmware update information is available from the Vislink FTP site, via the Vislink website: ...
  • Page 38 UltraReceiver LD User Manual Licenses and Upgrades This page is intentionally unused. Issue No: 2.01 Page: 32 Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.
