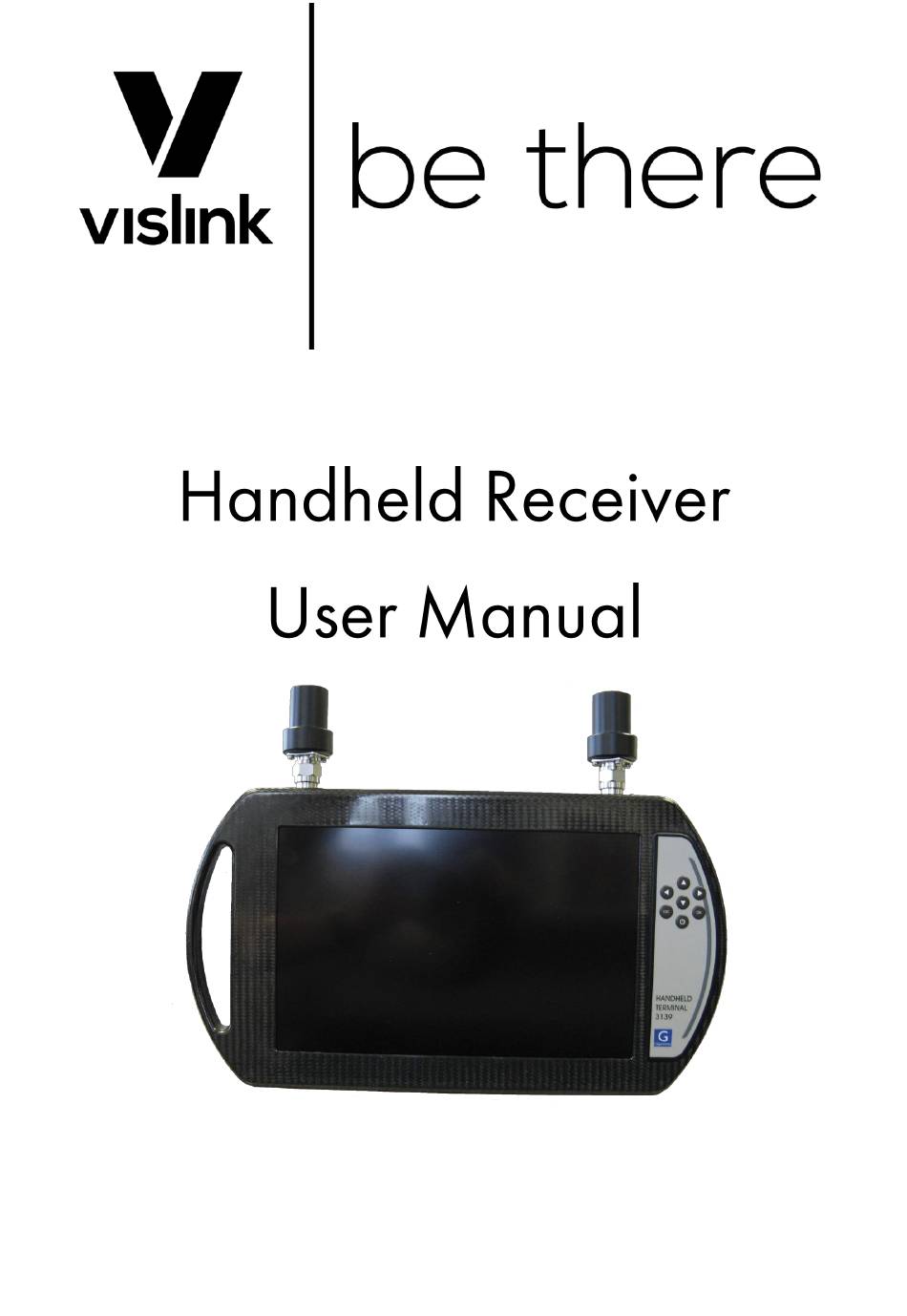

Vislink HHT3 User Manual

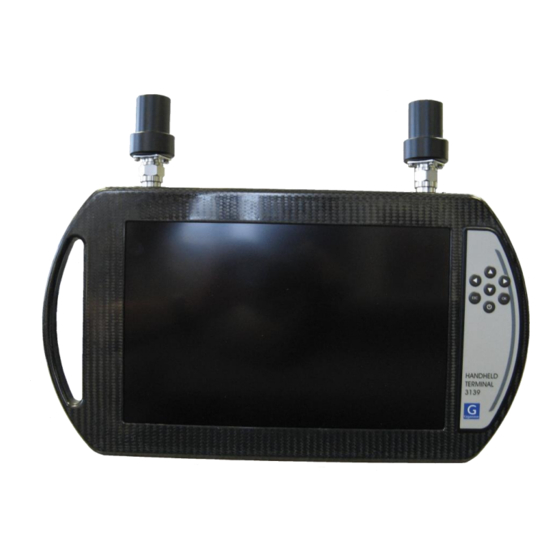

Handheld receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Vislink, Waterside House, Earls Colne Business Park, Colchester, Essex, CO6 2NS, UK
Telephone: +44 (0)1442 431300 ● Facsimile: +44 (0) 1494 775356 ● Email: sales@vislink.com ● Website: www.vislink.com
Company Registered in England & Wales no. 10523708 ● VAT registration no. GB 260 012 169
Registered Office: Waterside House, Earls Colne Business Park, Colchester, Essex, CO6 2NS, UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HHT3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vislink HHT3

Summary of Contents for Vislink HHT3

  • Page 1 Vislink, Waterside House, Earls Colne Business Park, Colchester, Essex, CO6 2NS, UK Telephone: +44 (0)1442 431300 ● Facsimile: +44 (0) 1494 775356 ● Email: sales@vislink.com ● Website: www.vislink.com Company Registered in England & Wales no. 10523708 ● VAT registration no. GB 260 012 169...
  • Page 2 The information contained in this manual remains the property of Vislink and may not be used, disclosed or reproduced in any other form whatsoever without the prior written permission of Vislink. Vislink reserves the right to alter the equipment and specification appertaining to the equipment described in this manual without notification.
  • Page 3 RD000579 number. Updated front page business details 1/5/2018 Minor non-technical updates. Minor update to show the FAT32 SD card format. 12/7/2018 Other non-technical updates. Issue :No. 7b Page : iii Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 4: Table Of Contents

    Setup Menus ..........................16 5.5.1. Channel / Frequency Menu ..................... 16 5.5.1.1. Channel ..........................16 5.5.1.2. Frequency ..........................16 5.5.1.3. Spectrum and Bandwidth ..................... 16 Issue :No. 7b Page : iv Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
  • Page 5 7.1.3. DVB-T Bitrates 8MHz ....................... 27 7.2. ISDB-T bit rates ......................... 28 7.2.1. ISDB-T Bit Rates - 6MHz ......................28 7.2.2. ISDB-T Bit Rates - 7MHz ......................28 Issue :No. 7b Page : v Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
  • Page 6 Figure 4-1 HHT3 Connector Panel and SD Card Overview ............. 9 Figure 5-1 Overview Screens ......................13 Figure 5-2 Signal Status Screen ....................14 Figure 5-3 Transport Stream and Video Status ................14 Figure 5-4 Service and PID Status ....................15 Figure 5-5 Unit Status and Alarms ....................

  • Page 7: General Information

    Electro-Static Discharge (ESD) precautions. CAUTION: The Handheld Receiver does not contain user serviceable parts. Return the unit to Vislink Customer Support for any repairs required. CAUTION: Do not open the main unit. CAUTION: Do not expose the Handheld Receiver to dripping or splashing water/liquid. You should use the (normally) supplied rain cover, when using the unit outside.

  • Page 8: General Safety Information

    The RF power density value is determined by reference to safety guidelines for exposure of the human body to non-ionizing radiation. The guidelines adopted differ throughout the world and are revised from time-to-time. For Vislink (Gigawave) use, a maximum power density limit (w) of 1w/m² is applied when calculating minimum safe working distances.
  • Page 9 Different power density / frequency characteristics are presented in the two documents. To avoid complexity and to avoid areas of uncertainty, Vislink (Gigawave) recommends the use of a single power density limit across the frequency range 100 KHz to 300 GHz.
  • Page 10 HHT3 Operators Manual General Information This page is intentionally unused. Issue :No. 7b Page : 4 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 11: External Battery

    Built-in Li-ion battery for one-hour autonomy, plus rear mounted IDX battery clip for increased operating time.  Battery state indication, plus ext. DC input/charging.  External battery.  Decryption BISS 1 and E or AES256 (option) Issue :No. 7b Page : 5 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 12: General Description

    HHT3 Operators Manual General Description This page is intentionally unused. Issue :No. 7b Page : 6 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 13: Specifications

    SD Card recording option. Compatible SD cards:  SDHC compatible Recording  Formatted to FAT32  Max. 32GB Approx. 30Hrs duration of H.264 with 8Gb card Issue :No. 7b Page : 7 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 14: Handheld Receiver Specifications

    Environmental Altitude: 4500m Humidity: 90% long term Table 3-1 Handheld Receiver Specifications NOTE: Specifications may alter at the discretion of Vislink (Gigawave) or to meet customer-specific requirements. Issue :No. 7b Page : 8 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 15: Pin Connections

    HHT3 Operators Manual Pin Connections Figure 4-1 HHT3 Connector Panel and SD Card Overview Configurable either CVBS composite or SDI. See Section 5.5.2. 75 BNC connector Analogue SD video, Composite PAL/NTSC (CVBS) or component YC / YUV Connector Type: 6-pin LEMO connector EGG.1B.306.CLN...

  • Page 16: Audio Channel 1&2

    Table 4-3 Remote/User Data Connector Connector Type: 4-pin LEMO connector EGG.1B.304.CLN Input range: 12V to 18V DC. Function +12V +12V Table 4-4 12-18V DC Connector Issue :No. 7b Page : 10 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 17: Hdmi

    Pin 4 Black USB_p Pin 3 Green USB_n Pin 2 White +5v out Pin 1 Red Table 4-5 USB / Ethernet Connector ™ Connector Type: HDMI. Issue :No. 7b Page : 11 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
  • Page 18 HHT3 Operators Manual Pin Connections This page is intentionally unused. Issue :No. 7b Page : 12 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 19: Configuring The Receiver

    Channel number and Rx frequency. Provided the receiver is receiving a signal from the transmitter, the display will show the modulation, the spectrum bandwidth and the receiver input levels for the two antenna inputs. Issue :No. 7b Page : 13 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 20: Transport Stream And Video Status

    Transport Stream and Video Status The following functions are displayed:  Received video format.  Video delay.  ASI input OK.  Encryption status.  Audio format. Issue :No. 7b Page : 14 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 21: Service And Pid Status

    Figure 5-5 Unit Status and Alarms The Unit Status and Alarms pages provide the alarm status of individual modules within the receiver. Issue :No. 7b Page : 15 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
  • Page 22 The video output from the 6-pin Lemo connector on the receiver front panel may be set to:  Composite video (CVBS) plus Component Y/C.  Component Y, U, V. Issue :No. 7b Page : 16 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
  • Page 23 NOTE: This method should only be used by skilled operators, the PIDs contained in the transport stream coming from the transmitter must be known by the operator prior to selecting this option. Issue :No. 7b Page : 17 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
  • Page 24 This feature is greyed out. The Advanced mode is password protected. The factory default is 0000. You can change the password if required. Issue :No. 7b Page : 18 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
  • Page 25 A detailed explanation of the principles of BISS encryption, plus the selection and operation of encryption is given in a separate Vislink (Gigawave) manual, which is available from the factory on request. NOTE: This function is only available in Advanced/Enabled mode. See Section 5.5.6.3.

  • Page 26: Channel

    (0) Auto (1) PID Based (2) Service Based ) Selection (0) Service ID (1) Service Name (2) Name ) Service ID ) Program Map Issue :No. 7b Page : 20 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
  • Page 27 ) State (0) Enabled (1) Disabled (1) MAC Address ) IP Allocation (0) DHCP (1) Manual (3) IP Address ) Subnet Mask ) Gateway Issue :No. 7b Page : 21 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 28: Outputs

    ) Unit Name ) Advanced Mode (0) State (1) Change PIN (6) USB Upgrade (0) File (1) Go ) Decryption ) Configure BISS Keys Issue :No. 7b Page : 22 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
  • Page 29 (4) Buried ID ) Channel 1..16 Setup (0) BISS-Level (1) BISS-1 KEY (2) BISS-E ESW (3) Injected ID (4) Buried ID Table 5-1 Software Menu Layout Issue :No. 7b Page : 23 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
  • Page 30 HHT3 Operators Manual Configuring the Receiver This page is intentionally unused. Issue :No. 7b Page : 24 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 31: Preparing For Operation

    We advise completing basic checks at base, so you can make any required adjustments and corrective actions before you leave for operation. The Handheld receiver can be used with a variety of Vislink (Gigawave) antennas: ...
  • Page 32 HHT3 Operators Manual Preparing for Operation This page is intentionally unused. Issue :No. 7b Page : 26 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 33: Table Of Cofdm Bitrates

    22.39 10.05 20.11 30.16 9.21 18.43 27.64 8.29 16.59 24.88 10.55 21.11 31.67 9.67 19.35 29.03 8.71 17.41 26.12 Table 7-3 DVB-T Bitrates 8MHz Issue :No. 7b Page : 27 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...

  • Page 34: Isdb-T Bit Rates - 6Mhz

    17.21 25.82 7.89 15.77 23.66 7.11 14.20 21.27 9.03 18.07 27.10 8.28 16.57 24.85 7.46 14.91 22.37 Table 7-5 ISDB-T Bit Rates - 7MHz Issue :No. 7b Page : 28 Ref: HHT3-ASUM-7000 Copyright © 2018 IMT Ltd, trading as Vislink...
