Vislink Strata RX Technical Reference Manual page 152

Tabs
There are 6 Tabs across the bottom of the Configurator
screen. These tabs correspond to the 6 Pages of settings
available. See Figure C-1.
To select a Page, click on a Tab.
Greyed-out Tabs If the Page is unavailable, the Tab label will
appear in grey. For example, in Figure C-1, the COFDM and
MPEG tabs are grey. That is because this offline configuration
has no CPOFDM or MPEG selected.

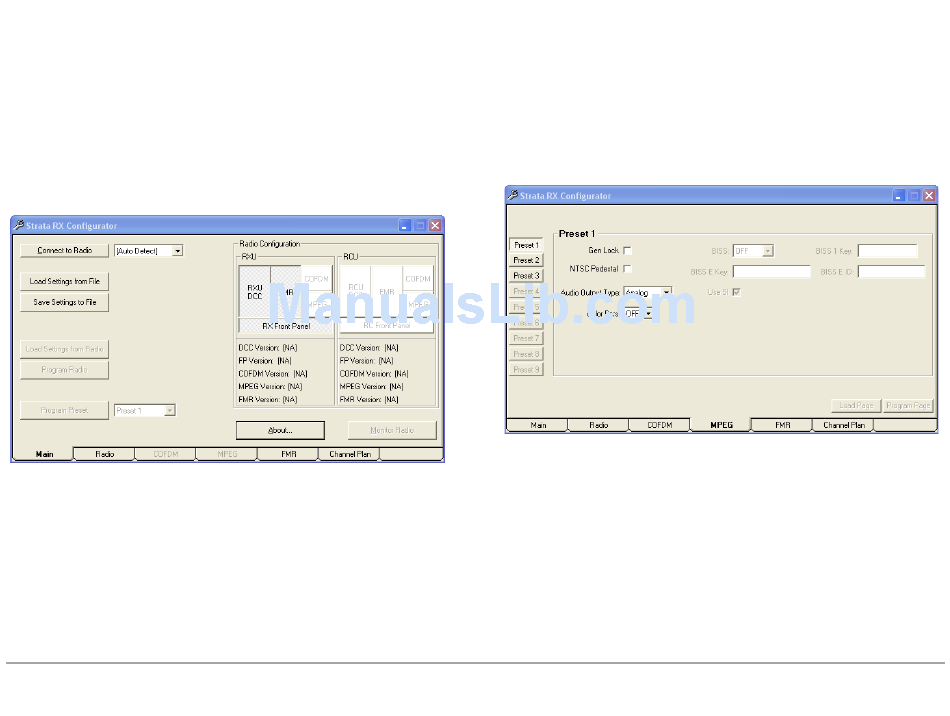

Figure C-1: Main Page with Greyed-Out Tabs
Strata RX Technical Reference Manual
Pages
Each page contains the settings that apply to that
function. For example, the FMR page contains all the settings
that apply to the analog demodulator.
Greyed-out Choices If some choices do not apply, they will
appear in grey. For example, in Figure C-2, the BISS Encryption
choices are all grey. That is because this radio does not have
encryption enabled.
Figure C-2: MPEG Page with Greyed-Out Choices
Configurator Reference C-2
