Vislink Strata RX Technical Reference Manual page 155

Load/Program a Single Page Loading or programming a
single page is done on the Configurator page you want to work
with. Each page (except the Main Page) has buttons for Load
Page and Program Page.
For example, if you are changing settings only on the Radio
Page, you would use the Load Page and Program Page
buttons on that page. See Figure C-6.
When you program a single Page, the Configurator only
programs that Page's settings to the radio - even if you changed
settings on other Pages as well.

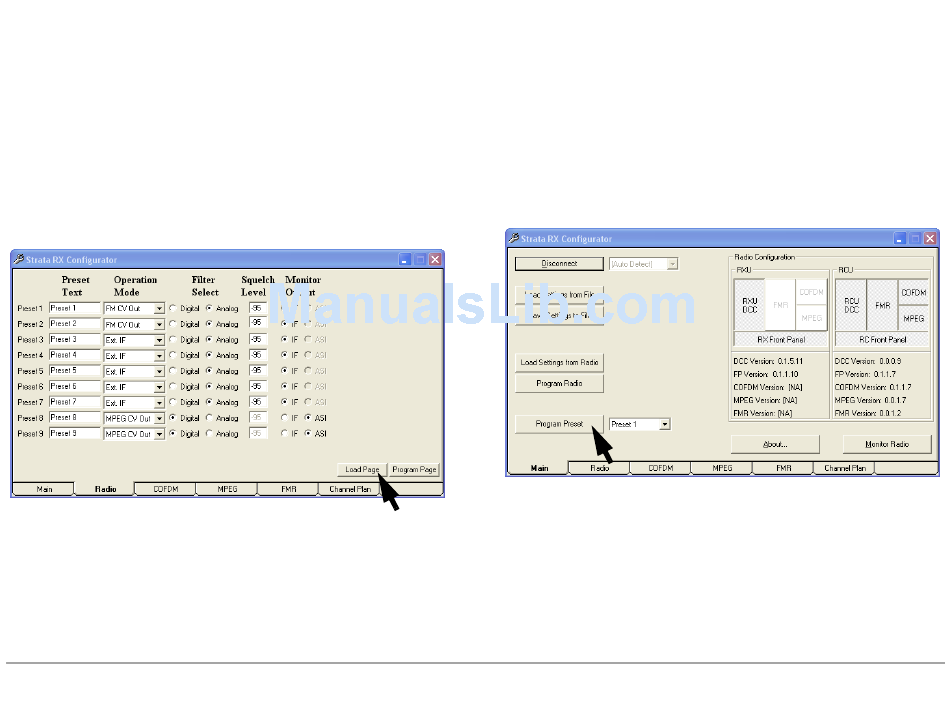

Figure C-6: Radio Page - Load a Single Page
Strata RX Technical Reference Manual
Load/Program Individual Presets Loading or programming an
individual Preset is done on the Main Page. You would first set
up the details of that preset using the other Configurator pages.
Then you would return to the Main Page, select the preset using
the drop down button, and click the Program Preset button. See
Figure C-7.
When you program an individual Preset, the Configurator only
programs that Preset's settings to the radio - even if you
changed settings on other presets as well.
Figure C-7: Main Page - Program an Individual Preset
Configurator Reference C-5
