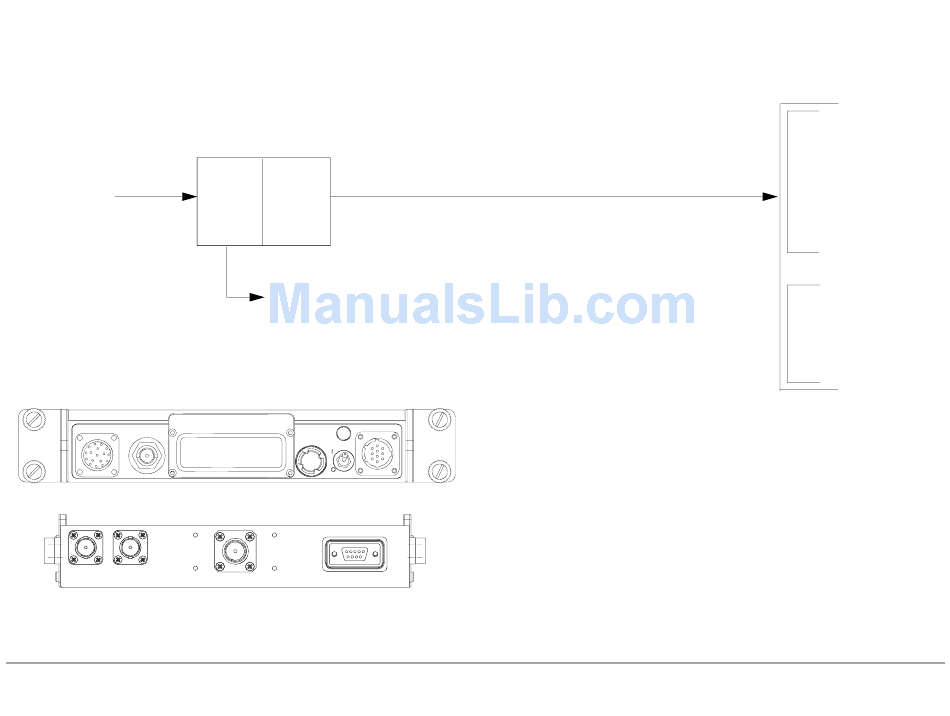

Figure 2-6: RF + Digital Demodulation (RXU Only)
SYSTEM
INPUT
RF from
Antenna
MON.
AUDIO SIGNAL OUTPUT
GEN
MON.
LOCK
Strata RX Operator's Guide/Tech Ref Manual
RXU
Digital
RF
Demod
Front
COFDM
End
(+ MPEG)
70 MHz IF
or ASI
STRATA STRATA
RX
PWR/RS-485
RXU
PWR
RS-232
Product Description
SYSTEM
OUTPUT
SDI
- or -
ASI (output of
COFDM demod)
- or -
External IF
- or -
Composite Video
(NTSC or PAL)
+
4 Channels analog audio
- or -
2 Channels analog audio +
2 Channels digital audio
- or -
4 channels digital audio
