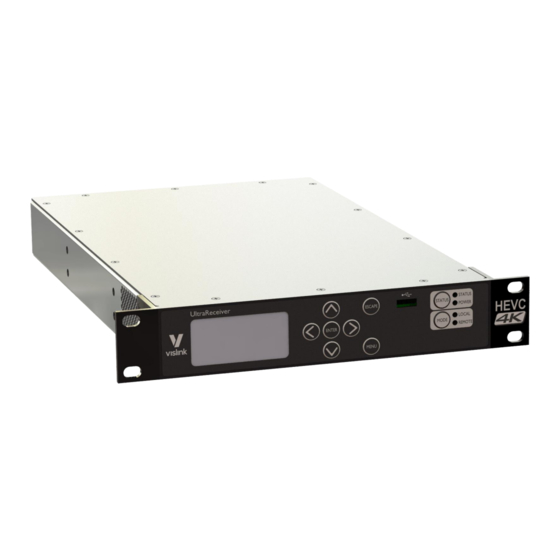

Summary of Contents for Vislink UltraReceiver

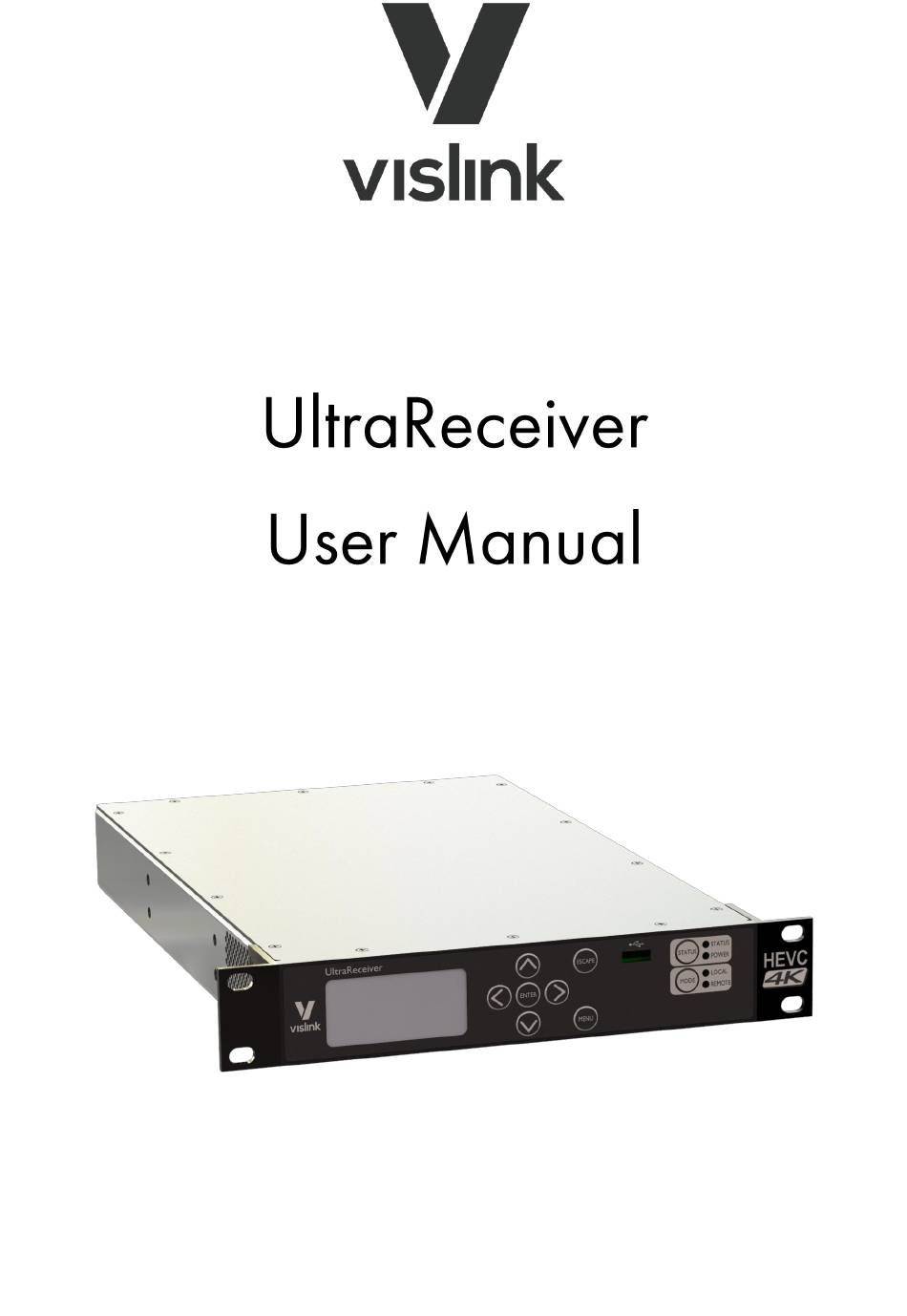

Page 1 Vislink, Waterside House, Earls Colne Business Park, Colchester, Essex, CO6 2NS, UK Telephone: +44 (0)1442 431300 ● Facsimile: +44 (0) 1494 775356 ● Email: sales@vislink.com ● Website: www.vislink.com Company Registered in England & Wales no. 10523708 ● VAT registration no. GB 260 012 169...
Page 2 The information contained in this manual remains the property of Vislink and may not be used, disclosed or reproduced in any other form whatsoever without the prior written permission of Vislink. Vislink reserves the right to alter the equipment and specification appertaining to the equipment described in this manual without notification.
Page 3 Updated Section 6.3 Down-Converter Type removed table and replaced with updated content. Removed Firmware update procedure from Section 7.2. Now refer users to the firmware release notes on the FTP site. Issue No: 3 Page: iii Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 4 Controls ........................13 4.1. Selection Keys .......................... 13 4.2. Menu Scroll Keys ........................13 4.3. Hot Keys ........................... 14 4.4. LEDs ............................14 4.5. USB Port ........................... 14 Issue No: 3 Page: iv Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 5: Table Of Contents
Menu Overview ........................18 5.8. UltraReceiver Webserver Operation over RJ45 Port ............... 26 5.8.1. Setting up a Basic Connection....................26 5.8.2. Accessing the UltraReceiver via Web Browser ................ 26 5.8.1. Routing Page ..........................27 Receiver Setup ......................29 6.1. Demodulation Options ......................29 6.1.1.
Page 6 Figure 2-1 Internal Architecture Overview ..................5 Figure 3-1 Input / Output Connections ..................9 Figure 4-1 UltraReceiver Front Panel ................... 13 Figure 4-2 MER (Modulation Error Ratio) Display ................ 14 Figure 5-1 Web Page Example ...................... 27 Table 3-1 CTRL/Data Pinout Information ..................
Page 7 CAUTION: This system contains MOS devices. Electro-Static Discharge (ESD) precautions should be employed to prevent accidental damage. Issue No: 3 Page: 1 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 8 NOTE: In Europe dispose of all equipment in accordance with the European Environmental directive. CAUTION: Protect the unit from dripping or splashing water/fluids. When used outdoors, protect the unit using a rain cover. Issue No: 3 Page: 2 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 9 It is important to note that the guidelines adopted differ throughout the world and are from time-to-time re-issued with revised guidelines. For Vislink use, a maximum power density limit (w) of 1w/m² is to be applied when calculating minimum safe working distances. Appendix A refers.
Page 10 UltraReceiver User Manual Safety and Compliance Vislink base the RF Radiation Power Density limit figure recommended in the following published guideline levels: a. IEEE standard C95.1 1999 - IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
Page 11 UltraReceiver User Manual Introduction The UltraReceiver is a highly flexible, high performance product based on compact DVB-T and LMS-T demodulators. It uses the Vislink Maximum Ratio Combining diversity algorithm and a combined HEVC UHD/HD/SD decoder. Ignore any reference to the RF and Demodulator functions in this manual for the decoder- only variant of this product.
Page 12 Audio outputs. In addition, the Decoder extracts embedded (or ’wayside’) RS232 data if it is present in the transmission, as well as return data from a VISLINK Camera Control System. There are two ASI connections between the boards to allow extra configuration flexibility.
Page 13 2160p@23.98/24/25/29.97/ 30/50/59.94   Main 10-8/10bits 4.2.0/4.2.2  1.0-90Mbps   Main 10-8/10bits 4.2.0 /4.2.2  1.0-90Mbps  SD (*Future Option)  4.2.0 Main 0.5-90Mbps  4.2.2 Main 2.0-90Mbps Issue No: 3 Page: 7 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 14 AC input option 90 VAC to 264 VAC 50Hz to 60Hz; max current 1A(rms) DC input option 9 VDC to 36 VDC (-ve chassis earth); max current 10A 70Watts excluding the downconverters requirements.  100W max allowing for downconverters and cables. Issue No: 3 Page: 8 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 15 1 x ASI output (complies with ISO/IEC 13818-2 – 188-byte mode)  2 x Audio channel outputs (analogue or digital)  Data channel output  Video over IP connection (Ethernet RJ45) Issue No: 3 Page: 9 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 16 For supported video formats, see Section 3.3. 75Ω BNC chassis mounted socket. Complies with ISO/IEC 13818-2 – 188-byte mode. ASI output from the Demodulator or ASI input for decoding by an external decoder or chaining to another UltraReceiver. Issue No: 3 Page: 10 Ref: ULRX-ASUM-700X Copyright ©...
Page 17 Analogue Mode:  48kHz sampling  Clip level 18dB  THD < 0.1%  20Hz to 18kHz ±0.25dB  Crosstalk >60dB minimum  Signal to noise ratio >66dB RMS Issue No: 3 Page: 11 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 18 Always use this link as the reference for any SNMP application, to ensure that the version relevant to the current code release is used. To configure the unit via the inbuilt web page, see Section 5.8 to connect to the unit. Issue No: 3 Page: 12 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 19 Some menus display ‘V’ at the side of the list, this indicated there are more options. Scroll down to show the options. Pressing ESCAPE in this instance will take you back to the previous menu, not up a level. Issue No: 3 Page: 13 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 20 Remote device, as set by the MODE key. Use this to insert a USB memory stick for code updates. This port is not used for remote control, or for use as a phone charger. Issue No: 3 Page: 14 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 21: Main Display
For each RF input, select the downconverter type, and turn on power to the downconverter. All current Vislink downconverters are listed, or the Local Oscillator (LO) frequency of any unlisted downconverter may be entered by selecting OTHER. To enter the incoming UHF frequency directly, select NONE.
Page 22 0 and 540, for positive offsets use the formula, 1124 – the offset required as the front panel value. NOTE: The “lock” status displays and can take 10 seconds to complete. Issue No: 3 Page: 16 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 23 Enter license codes and display which features you have licensed in the unit. See Section 7.1 for more details. Set unit Time and Date, and display the accumulated run-time of the unit in hours. Issue No: 3 Page: 17 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 24 UltraReceiver User Manual Main Display These menus display useful information if you need to contact the Vislink. In particular, the versions of the various modules in the unit. The unit can display detailed information on the performance of the unit.
Page 25: Downconverters
16MHz (Dual) 20MHz (Dual) 24MHz (Dual) Guard Interval 1/32 1/16 Auto Polarity Normal Inverted Constellation QPSK 16QAM 64QAM Squelch Setup Downconverters Down Converter L3010Lo L3010H L3014 L3030 L3033 L3034 Issue No: 3 Page: 19 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 26: Inputs
L3025-3236 3025-3239E L3025-4450 L3025-5459 L3025-6471 L3025-6875 L3025-7277 L3025-6368 Other None Enable Downconverters LNB 1..4 Diversity Diversity Bitrate 00..48Mb/s Decoder Input Demodulator Ext ASI Diversity Service Service Selection Manual Issue No: 3 Page: 20 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 27 Linear PCM Audio 1..2 Source Decoder Test Tone Audio 1..2 Level +18dBu +24dBu Setup Format UHDp60 UHDp59 UHDp50 UHDp30 UHDp29 UHDp25 UHDp24 UHDp23 1080p60 1080p59 1080p50 1080PsF30 1080PsF29 1080PsF25 Issue No: 3 Page: 21 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 28: Genlock
Chroma 4:2:2 4:2:0 Bit Depth 10 bit 8 bit Video Output Video Fail Blue Freeze Error Concealment 00..50 Delay Standard Standard H.264 HEVC Genlock Genlock Mode On (External) Issue No: 3 Page: 22 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 29: Unit Setup Menu
0000..8190 Unit Setup Presets Preset number 001..016 Name input Clear preset Name Recall preset Store preset Delete all presets Copy presets to USB Copy presets from USB Control Issue No: 3 Page: 23 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 30: Defaults
Mode Alarm Manual Defaults Restore defaults Reboot Licences Licence Code Line 1 Line 2 Licence State Features 4K and UHD H.264 4 Input Demod Diversity Time Time input Issue No: 3 Page: 24 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 31 Packet errors Power 1..4 MER 1..4 Temperatures Unit temp Down converter LNB 1..4 Contact Support portal View QR code US Support View QR code Worldwide Support View QR code Issue No: 3 Page: 25 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 32  Subnet mask: 255.255.255.000  Gateway: 192.168.000.001 4. If using the default UltraReceiver settings, modify the network settings of your PC to use the same subnet mask and an address from the same subnet e.g.:  PC subnet mask: 192.168.000.100 ...
Page 33 UltraReceiver User Manual Main Display Figure 5-1 Web Page Example This webpage gives a diagrammatic view of the signal routing within the receiver. Issue No: 3 Page: 27 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 35 4, 6, 8, 10, 12, 14, 16, 20 & 24 MHz The DVB-T bandwidths:  6, 7 & 8 MHz NOTE: After any change, a screen stating “Please Wait” displays while the unit saves the new settings. Issue No: 3 Page: 29 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 36: Receiver Setup
20.491 21.112 14.929 16.588 17.564 18.096 19.906 22.118 23.419 24.128 22.394 24.882 26.346 27.144 64-QAM 24.882 27.647 29.273 30.16 26.126 29.029 30.737 31.668 Table 6-2 DVB-T Bitrate Operation Issue No: 3 Page: 30 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 37 Selecting the downconverter type will automatically define the frequency ranges and spectral inversion. Switch the decode to decode a transport stream from either the demodulator output or an external source from the rear panel ASI-In socket. Issue No: 3 Page: 31 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 38 The UltraReceiver can encapsulate an ASI stream into an IP (Internet Protocol) stream for transport over Ethernet infrastructure. It can also receive such streams and recover the ASI stream from within it.
Page 39 Downconverter menu, then select the required LO frequency and polarity. These can be set individually for each of the RF inputs. These can then be stored as any one of the Config memories to be re-loaded as required. Issue No: 3 Page: 33 Ref: ULRX-ASUM-700X Copyright © 2018 Vislink plc...
Page 41: Licenses And Upgrades
UltraReceiver User Manual Licenses and Upgrades In common with many Vislink products, you can add features to the receiver by purchasing additional licenses from your local representative. Before ordering your license, you will need to provide the serial numbers of the boards in the unit.
