Fuel Systems

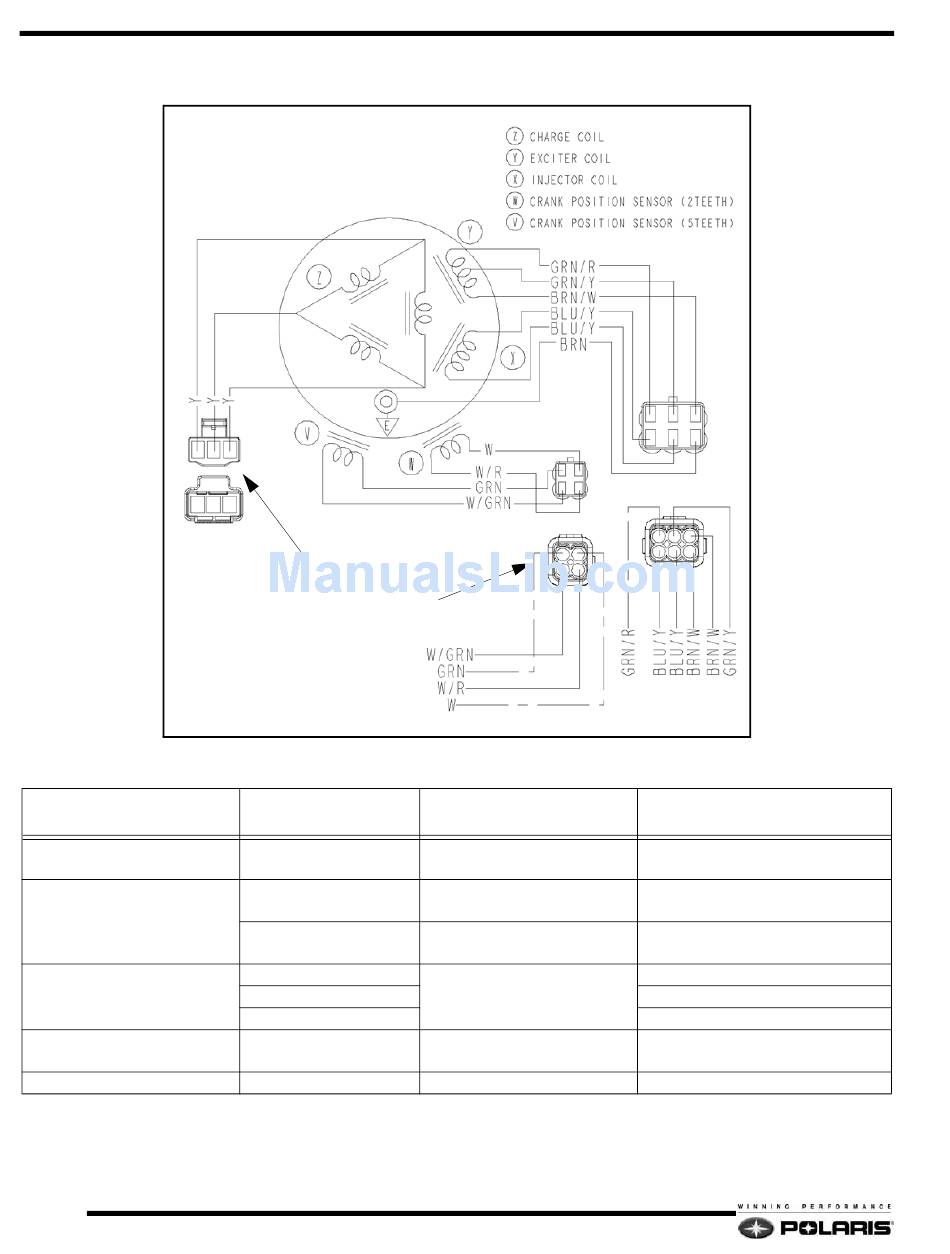

Stator Assembly

ITEM
CHARGE / LIGHTING COIL
CRANK POSITION SENSOR
(CPS)
COILS
INJECTOR POWER COIL
ENGINE GROUND
4.26
REG REC
CRANK POSITION
SENSORS
Stator Specifications
COLOR
YELLOW
GRN to WHT/GRN
WHT to WHT/RED
GRN/RED
GRN/YEL
BRN/WHT
BLU/YEL TO BLU/YEL
BROWN
SYSTEM FUNCTION
CHASSIS / BATTERY
POWER
Crank Position Sensor (5
Tooth) Ignition timing.
Crank Position Sensor (2
Tooth) Locates TDC and RPM.
Exciter Coil - Powers the
Ignition Coils / ECU
Supplies power to fuel
injectors.
ENGINE GROUND
RESISTANCE
+/- 15% @68 F (20
° °
YEL TO YEL = 0.13Ω
NO CONTINUITY TO GROUND
GRN to WHT/GRN = 190Ω
WHT to WHT/RED = 190Ω
GRN/RED to GRN/YEL = 15Ω
GRN/RED to BRN/WHT = 30Ω
BRN/WHT to Ground = 0Ω
BLU/YEL to BLU/YEL = 2.4Ω
0Ω
C)
