CHAPTER 13

Connecting the Switch to the Network

Connecting a Device to a Network for Out-of-Band Management

Copyright © 2016, Juniper Networks, Inc.
Connecting a Device to a Network for Out-of-Band Management on page 167
Connecting a Device to a Management Console by Using an RJ-45 Connector on page 168
Connecting a Fiber-Optic Cable on page 169
You can monitor and manage these devices by using a dedicated management channel.
Each device has a management port to which you can connect an Ethernet cable with
an RJ-45 connector. Use the management port to connect the device to the management
device.
Ensure that you have an Ethernet cable that has an RJ-45 connector at either end.
Figure 40 on page 167 shows the RJ-45 connector of the Ethernet cable supplied with the
device.

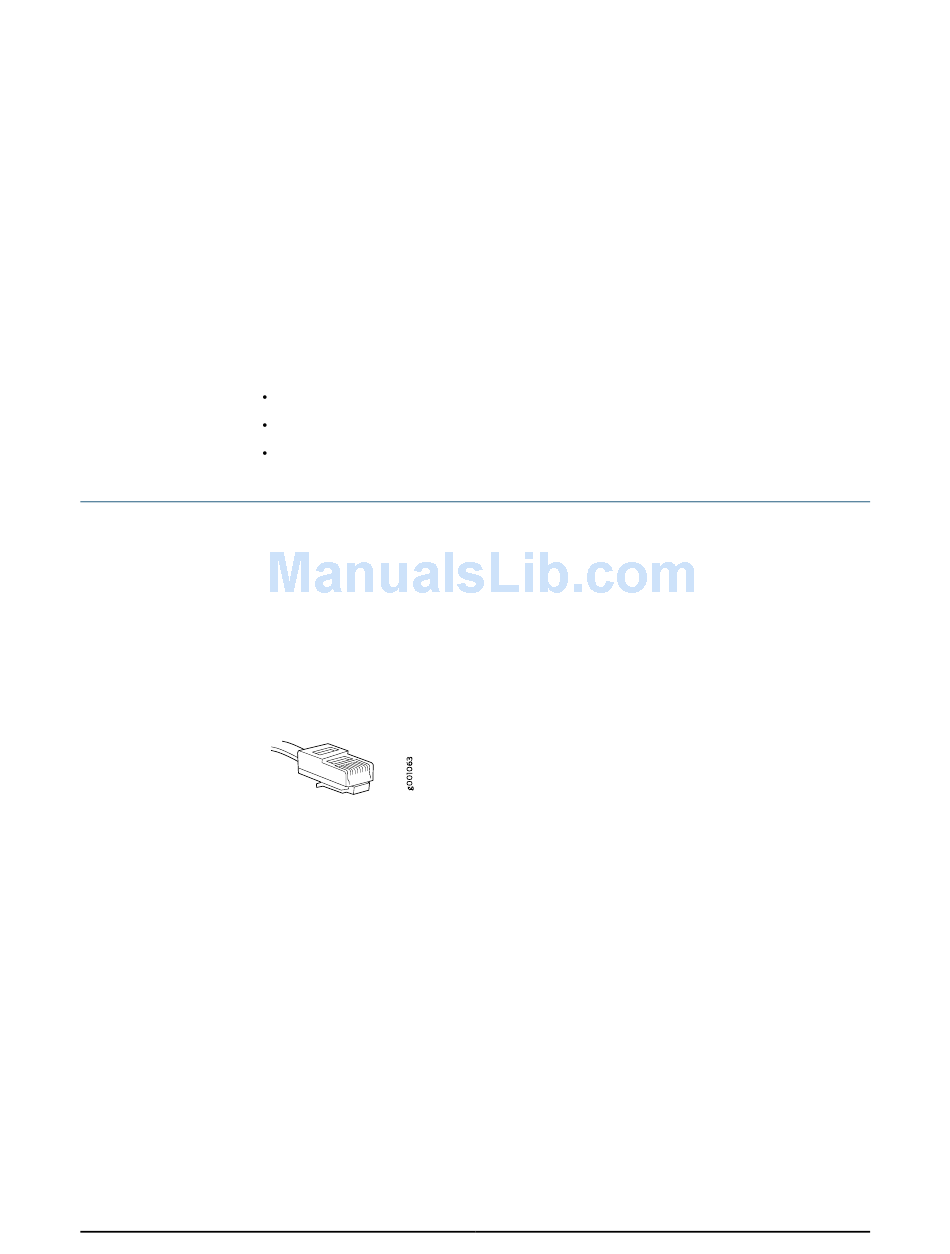

Figure 40: RJ-45 Connector on an Ethernet Cable

To connect a device to a network for out-of-band management (see
Connect one end of the Ethernet cable to the management port (labeled
1.
) on the device.
ETHERNET
Connect the other end of the Ethernet cable to the management device.
2.
Figure 41 on page 168):
MGMT or
167
