Figure 27: Attaching The Front-Mounting Bracket To The Side Mounting-Rail; Figure 28: Attaching The Side Mounting-Rail To The Switch Chassis - Juniper EX3200 Hardware Manual

EX3200 Switch Hardware Guide
148
To mount the switch on four posts in a rack:
Attach the front-mounting brackets (either the flush or the 2-in.-recess brackets) to
1.
the side mounting-rails using six 4-40 flat-head Phillips mounting screws. See
Figure 27 on page 148.

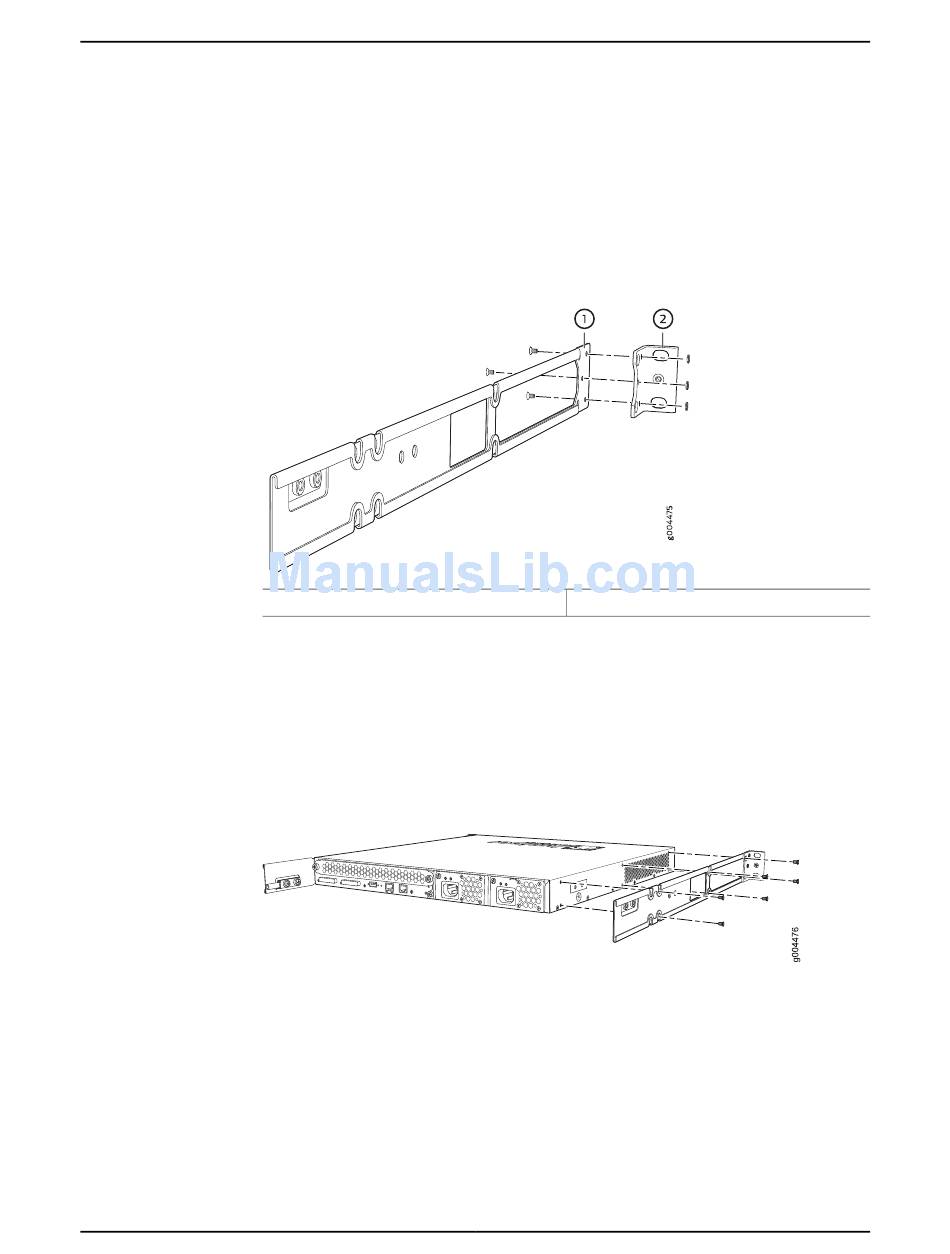

Figure 27: Attaching the Front-Mounting Bracket to the Side Mounting-Rail

1— Side mounting-rail
Place the switch on a flat, stable surface.
2.
Align the side mounting-rails along the side panels of the switch chassis. Align the
3.
two holes in the rear of the side mounting-rails with the two holes on the rear of the
side panel.
Insert 4x6-mm Phillips flat-head mounting screws into the two aligned holes and
4.
tighten the screws. Ensure that the remaining four holes in the side mounting-rails are
aligned with the four holes in the side panel. See

Figure 28: Attaching the Side Mounting-Rail to the Switch Chassis

Insert the 4x6-mm Phillips flat-head mounting screws into the remaining four holes
5.
in the side mounting-rails and tighten the screws.
Have one person grasp both sides of the switch, lift the switch, and position it in the
6.
rack, aligning the side mounting-rail holes with the threaded holes in the front post
of the rack. Align the bottom hole in both the front-mounting brackets with a hole in
each rack rail, making sure the chassis is level. See
2— Front-mounting bracket
Figure 28 on page 148.
Figure 29 on page
