Copyright © 2016, Juniper Networks, Inc.

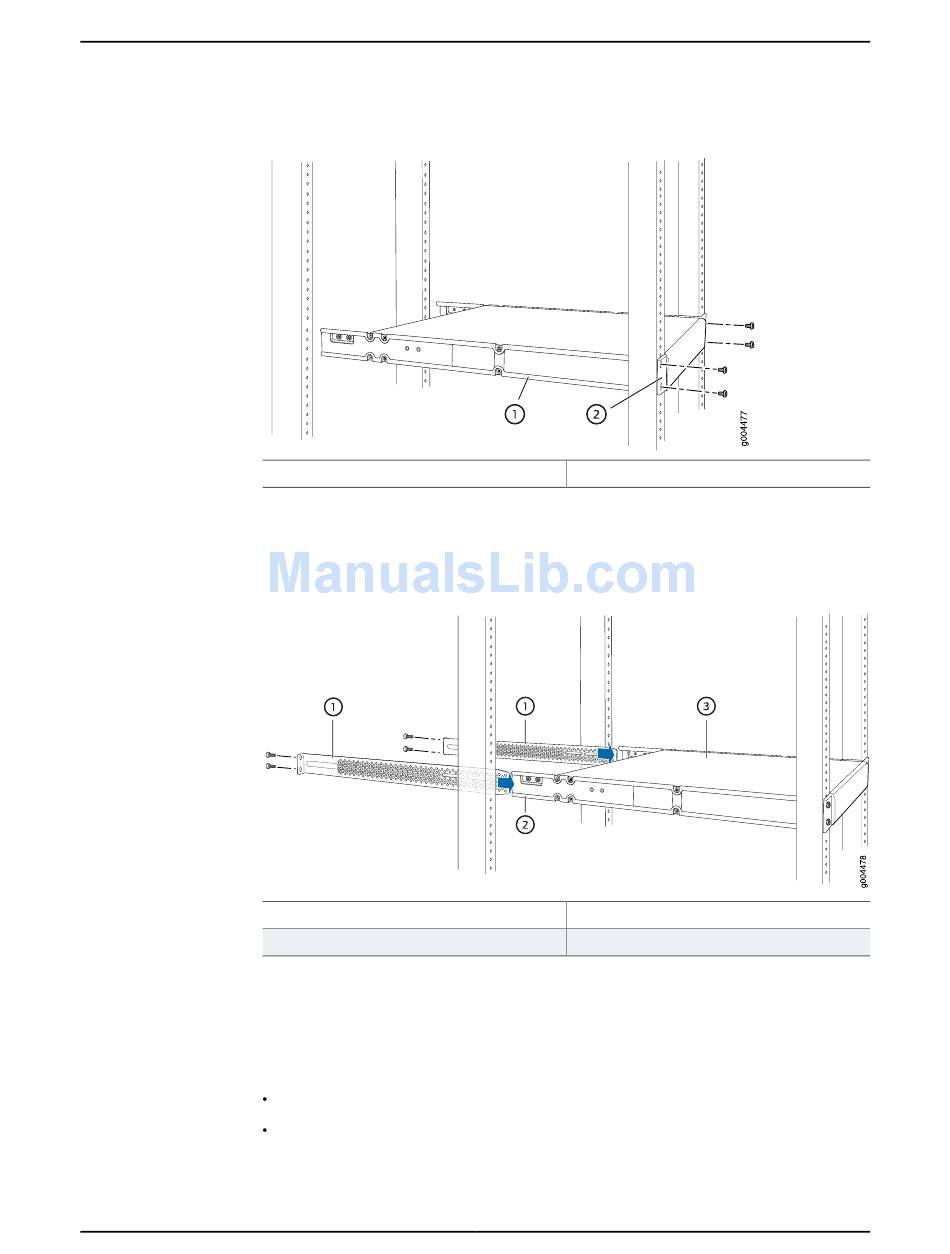

Figure 29: Mounting the Switch to the Front Posts in a Rack

1— Side mounting-rail
Have a second person secure the front of the switch to the rack by using the appropriate
7.
screws for your rack.
Slide the rear mounting-blades into the side mounting-rails. See
8.

Figure 30: Sliding the Rear Mounting-Blades into the Side-Mounting Rail

1— Rear mounting-blade
2—Side mounting-rail
Attach the rear mounting-blades to the rear post by using the appropriate screws for
9.
your rack. Tighten the screws.
Ensure that the switch chassis is level by verifying that all the screws on the front of
10.
the rack are aligned with the screws at the back of the rack.
Connecting Earth Ground to an EX Series Switch on page 155
Connecting AC Power to an EX3200 Switch on page 161
Chapter 11: Installing the Switch
2— Front-mounting bracket
Figure 30 on page
3— Switch
149.
149
