CHAPTER 15

Replacing Cooling System Component

Installing a Fan Tray in an EX3200 Switch

Related
Documentation
Copyright © 2016, Juniper Networks, Inc.
Installing a Fan Tray in an EX3200 Switch on page 187
Removing a Fan Tray from an EX3200 Switch on page 188
EX3200 switches have a single fan tray on the rear panel. The fan tray is a hot-removable
and hot-insertable field-replaceable unit (FRU): You can remove and replace it without
powering off the switch or disrupting switch functions.
Ensure that you have the following parts and tools available:
A Phillips (+) screwdriver, number 2
To install a fan tray in an EX3200 switch chassis (see
CAUTION: If you are installing a fan tray in an EX3200 switch, ensure the fan
faces upwards.
Remove the fan tray from its bag. Using both hands, align the tray with the fan tray
1.
guides on the fan tray slot on the rear panel of the chassis and slide it in until it is fully
seated.
Tighten the screw or screws on the fan tray by using the screwdriver.
2.

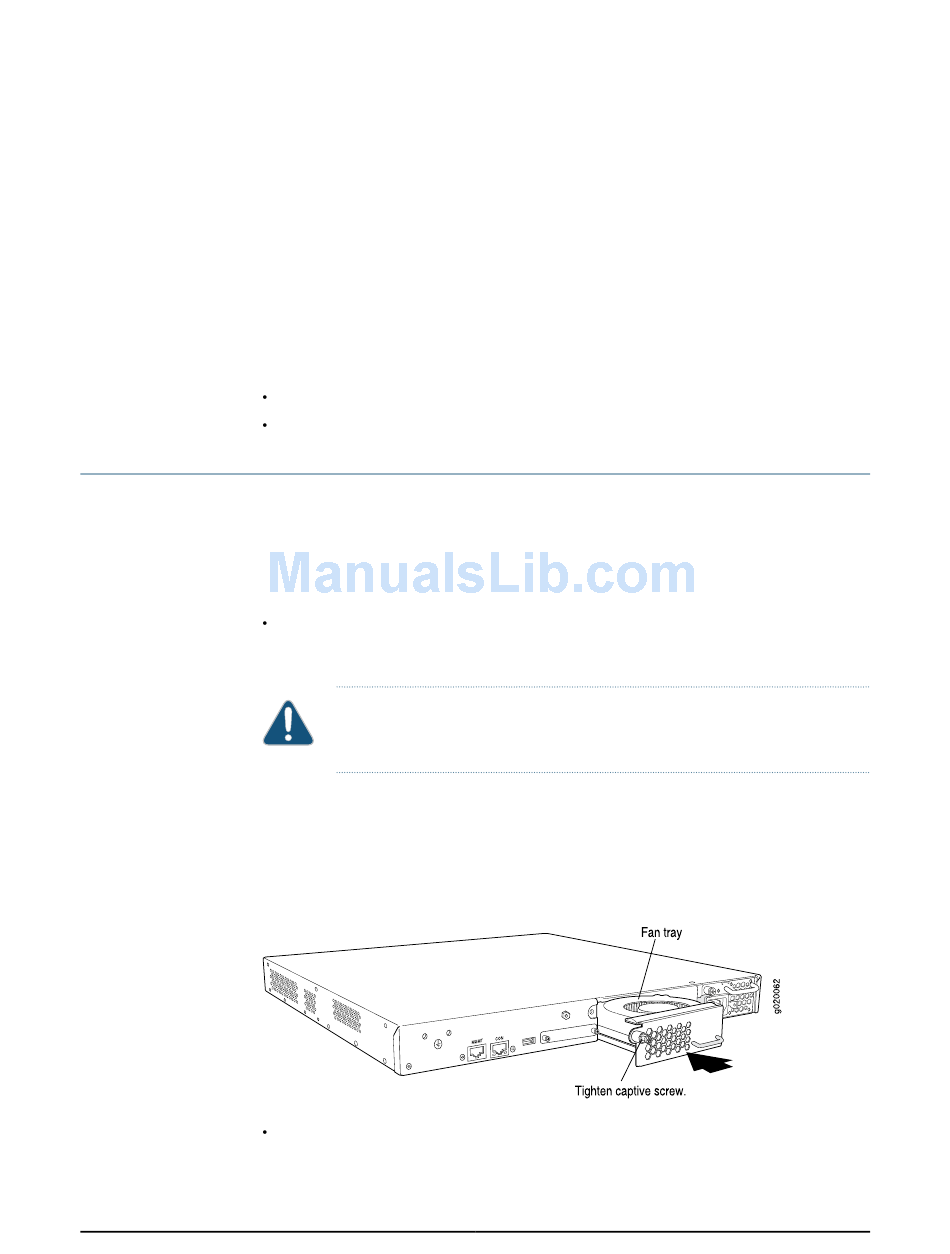

Figure 48: Installing a Fan Tray in an EX3200 Switch

Removing a Fan Tray from an EX3200 Switch on page 188
Figure 48 on page 187):
187
