Air Flow
5-9-1

Air Flow Distribution

The four air flow passes allow the scanner to be cooled down as shown in the figure above.
• Pass A (Bottom right> BEP Assy> Rear upper left) for BEP Assy cooling.
• Pass B (Front lower left > Filter > LV unit > Rear lower left) for HV unit cooling.
• Pass C (Bottom left> RLY Box Assy > Rear upper right) for RLY Box Assy cooling.
• Pass D (Bottom left> Filter >Nest Assy> Rear upper right) for Nest Assy cooling.
5-9-2

Filters

The scanner contains the four filters located at:
-
-
-
5-38
7
A
B

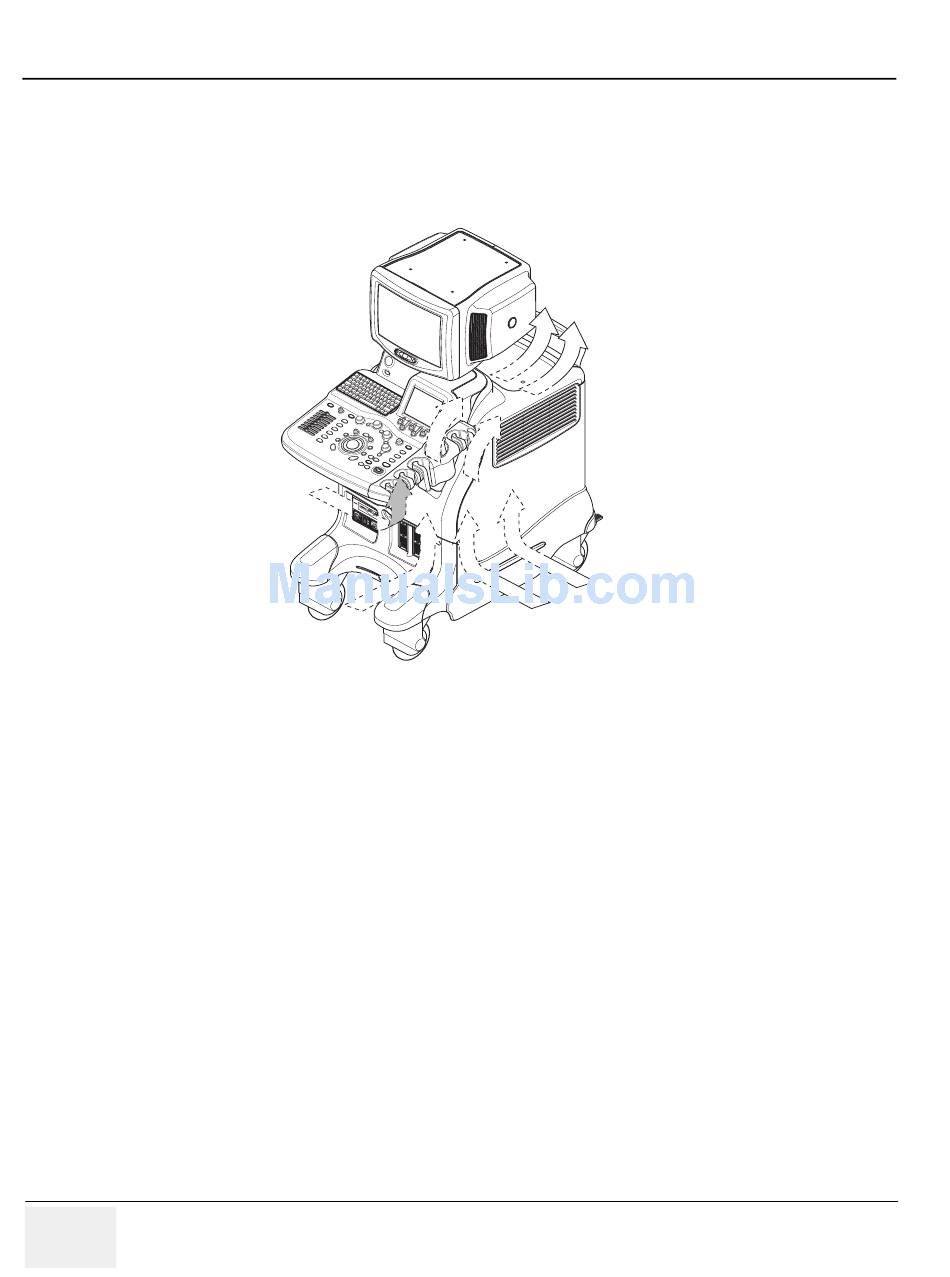

Figure 5-30 Air Flow Inside the Scanner
Front bottom for air flow of the BEP Assy and Nest Assy.
Rear bottom for air flow of BEP Assy.
Left and Right side for airflow of the AC power Assy.
