8-8-1-4 General Procedures of BEP Assy Disassembly. (cont'd)
General Procedures of BT05 BEP3 Assy Disassembly
NOTE: BEP2 and BEP3 FUR include applicable FRU CD SET, APPLICATION CD [2.06 Version], VGA
VIC CABLE ,which consider BEP1 User
NOTE: BT05 BEP3 FRU include no CD SET, VGA VIC CABLE. Because BT05 BEP3 FRU is
interchanged with only BTO5 SYSTEM (Use CD SET of Install Based system )
NOTE: BEP2 and BEP3 FRU can be interchanged with all of Install based system exclude BTO5
SYSTEM, That is to say, BT05 BEP3 FRU can be alternated with only BTO5 Install Based
system
NOTE: BEP FRU include CD set and VGA to VIC cable because the CD set and cable for BEP1 can
not be used for BEP
NOTE: If the BEP1 is replaced with BEP FRU, the CD set on the EMI metal cover also should be
replaced with new CD set which is included in the BEP FRU kits
8 - 102
7
Option Dongle

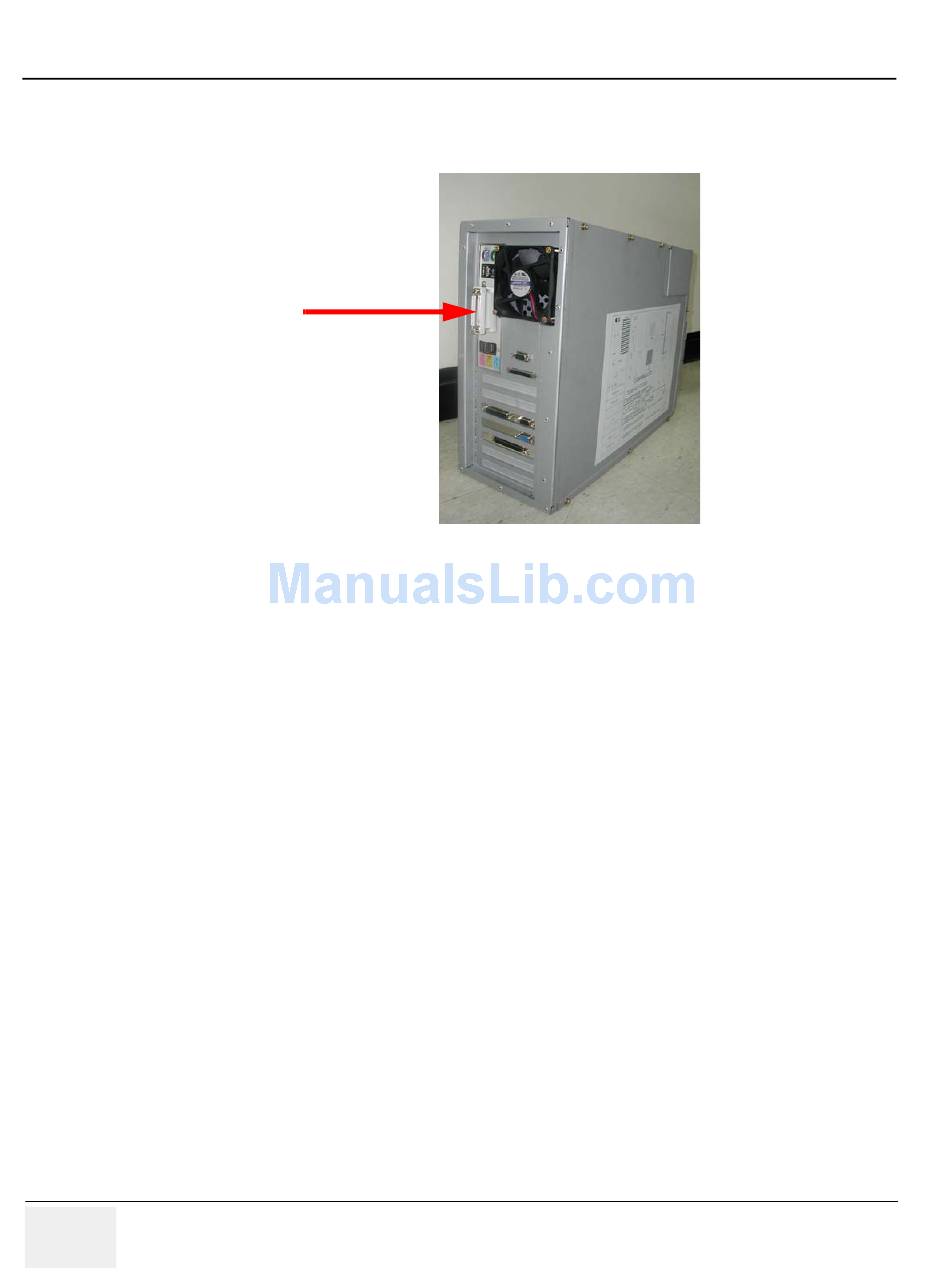

Figure 8-92 BT05 BEP3 Option Dongle replacement
