4-11-1 Main Keyboard Assy validation
6.) Write the 'scfpapitest.exe' on the command prompt and press 'Enter' button to pop up the
scfpapitest program.
7.) Press the keyboard button and rotate rotary button. When you press or rotary keys, Log dialog box
displays the key log. Button name and displaying log name is like the table.
Button or
Rotary Name
Record
Userdefine 1
Userdefine 2
Userdefine 3
3D
Userdefine 4
Harmonic
Table 4-25
7

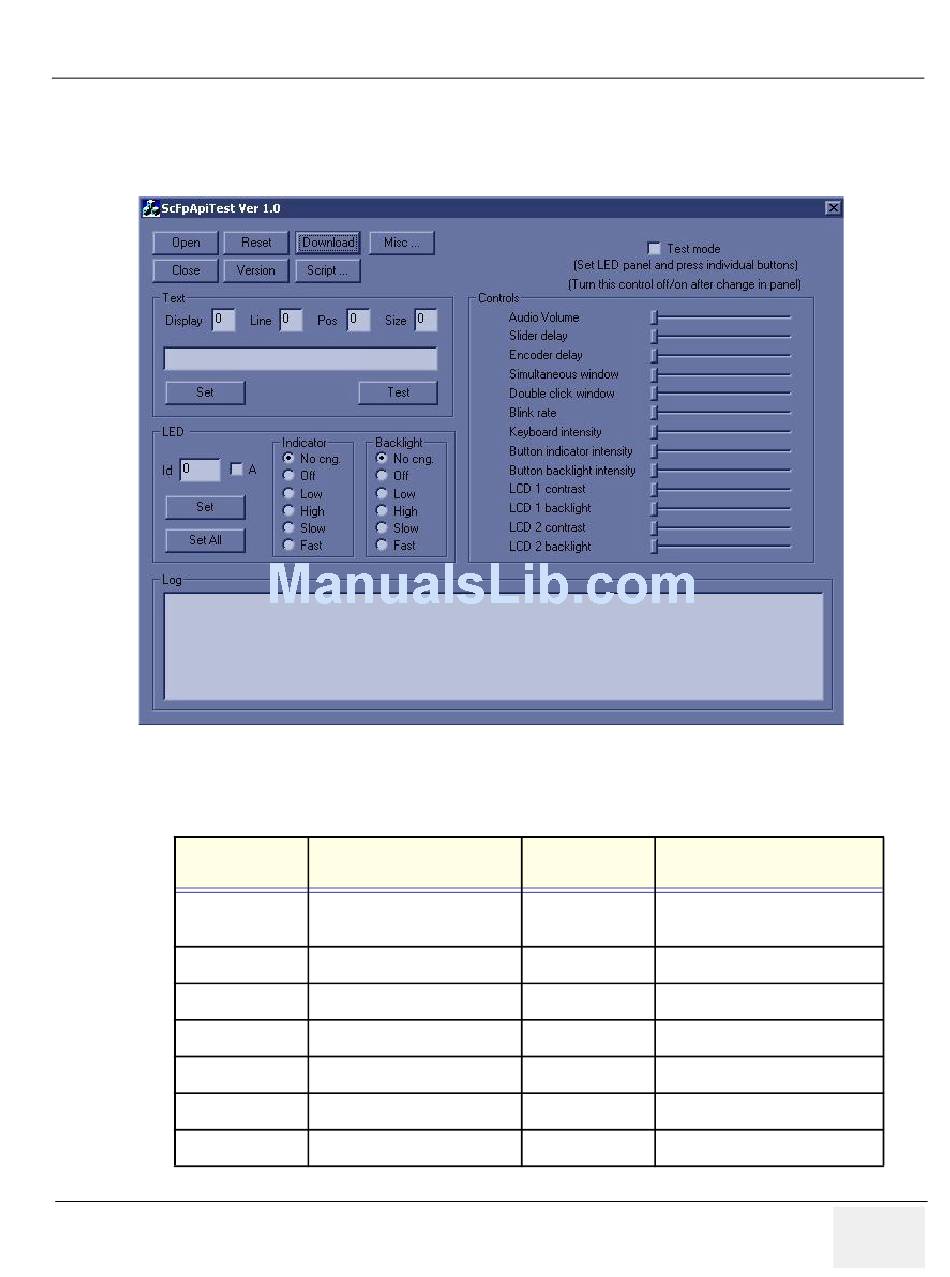

Figure 4-45 scfpapitest program
The Name displayed in Log
External Output or VCR
button
Userdefine 1 Button
Userdefine 2 Button
Userdefine 3 Button
3D Button
Userdefine 4 Button
Harmonics Button
Button and Rotary table
Chapter 4 Functional Checks
LOGIQ™ 5 PRO S
(cont'd)
Button or
Rotary Name The Name displayed in Log
B pause
Depth (Button) Depth PushEncoder Button
Depth (Rotary) Depth PushEncoder Button
B (Button)
B (Rotary)
CF (Button) CFM PushEncoder Button
CF (Rotary) CFM PushEncoder Rotary
M
ERVICE
B Pause Button
B PushEncoder Button
B PushEncoder Rotary
ANUAL
4 - 29
