8-4-5-4 Removal Procedure (cont'd)
2.) Using longnose, pull out encoder nuts and encoder washers from each encoder. Refer to Figure 8-
25.
3.) Turn the keyboard to back side.
4.) Disconnect each of the encoders from the back side of the keyboard. Refer to Figure 8-26.
7

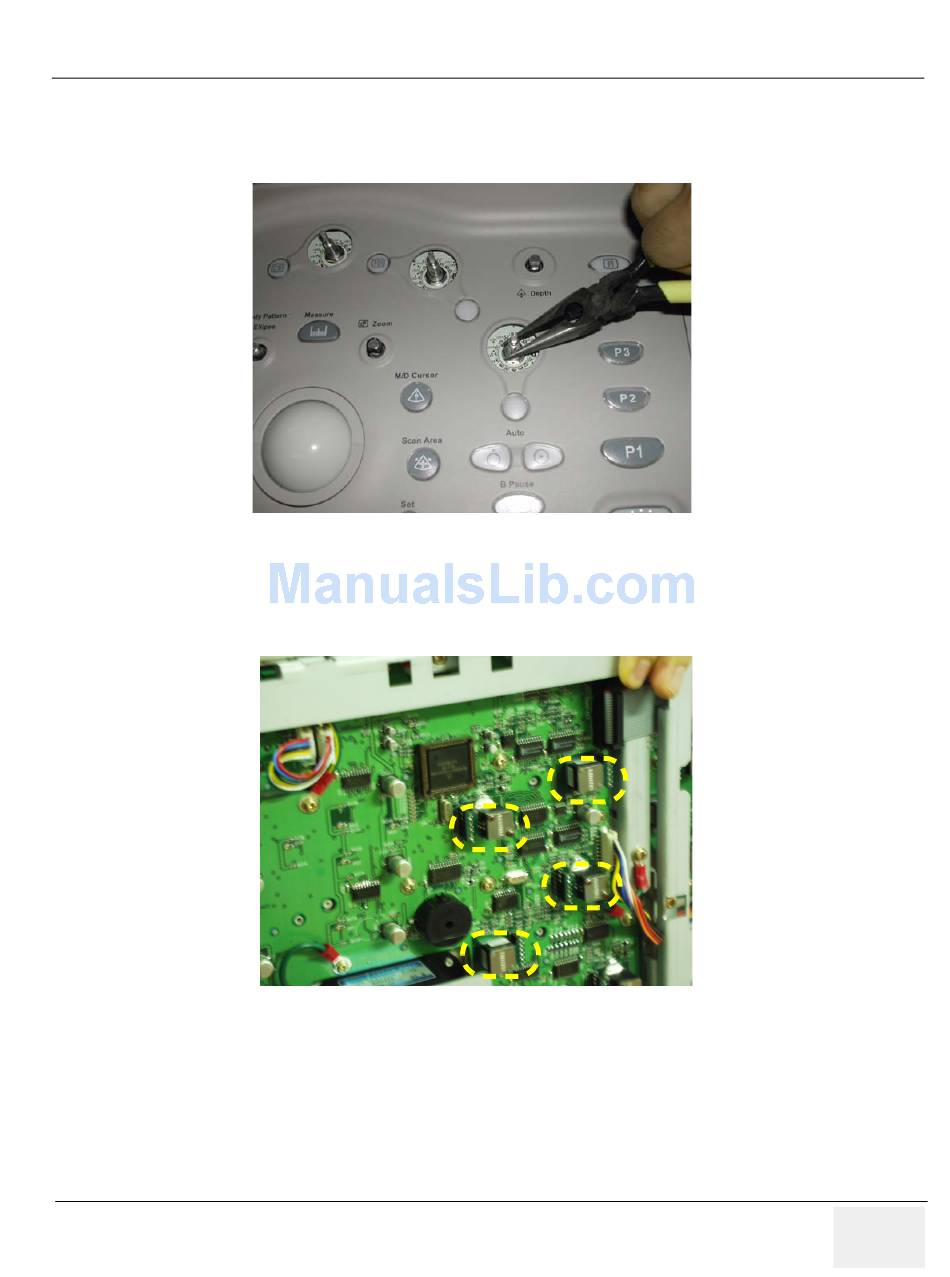

Figure 8-25 Pulling Out encoder nuts
Encoder Assy
Figure 8-26 Removing Encoders
Chapter 8 Replacement Procedures
back side
