8-9-1-4 Removal Procedure (cont'd)
3.) Unscrew ten (10) screws (11-20) to remove AC Power assy. Refer to Figure 8-173.
4.) Remove the AC Power Assy.
The weight of the AC Power Assy is approximately 20 kg. Two person is needed in the
WARNING WARNING
next step.
8 - 154
7
11
12
13
14

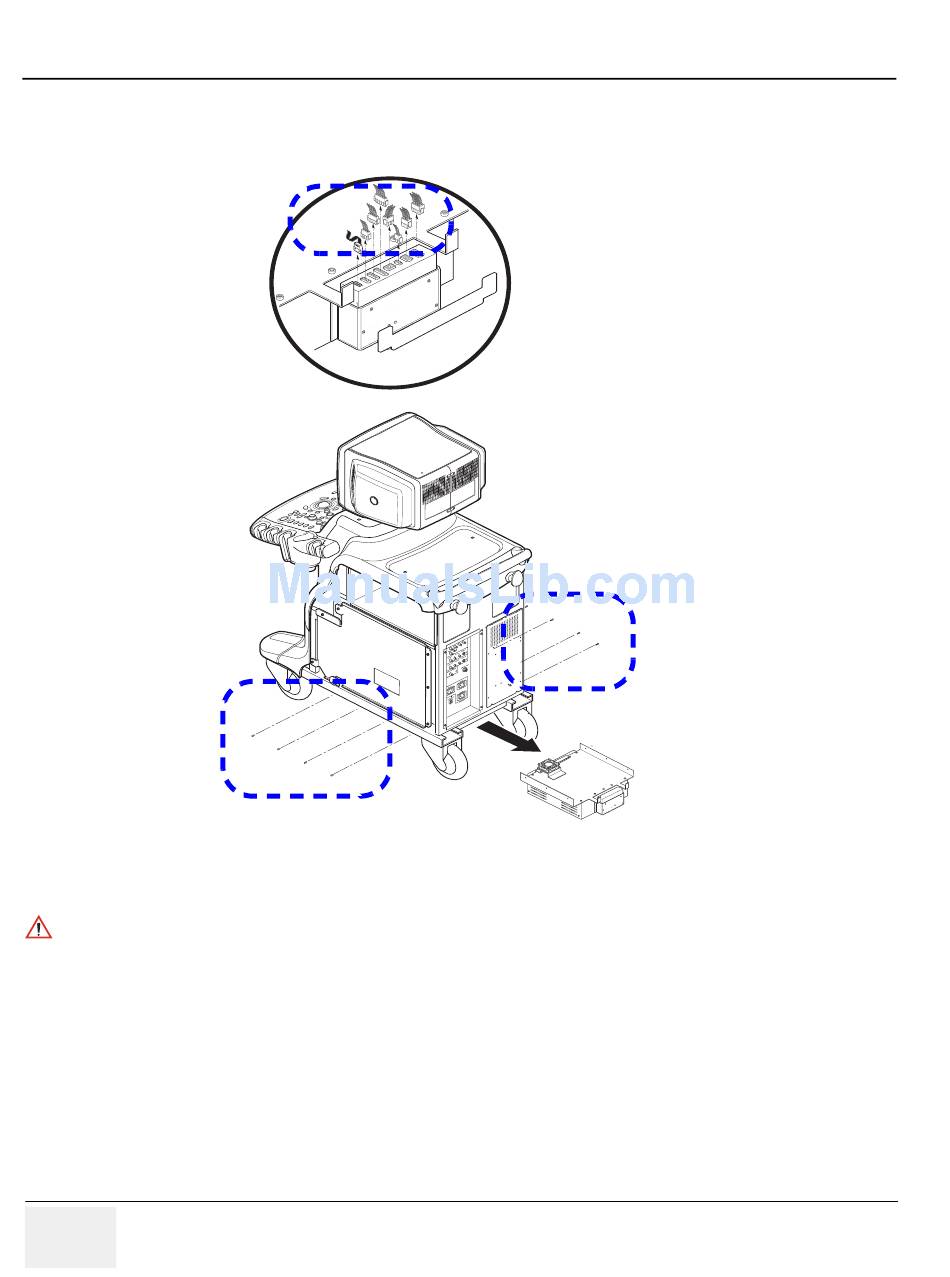

Figure 8-173 Removing the AC Power Assy
