8-7-4-4 Removal Procedure (cont'd)
6.) Disconnect one connector (1) if removing the FEC Assy. Otherwise skip this step. Refer to Figure
8-86.
7.) Move the upper and lower stopper in the direction indicated by the arrow (1). Refer to Figure 8-87.
8.) Pull out the board in the direction indicated by the arrow (2). do not bend it.
8 - 96
7
SIG Board

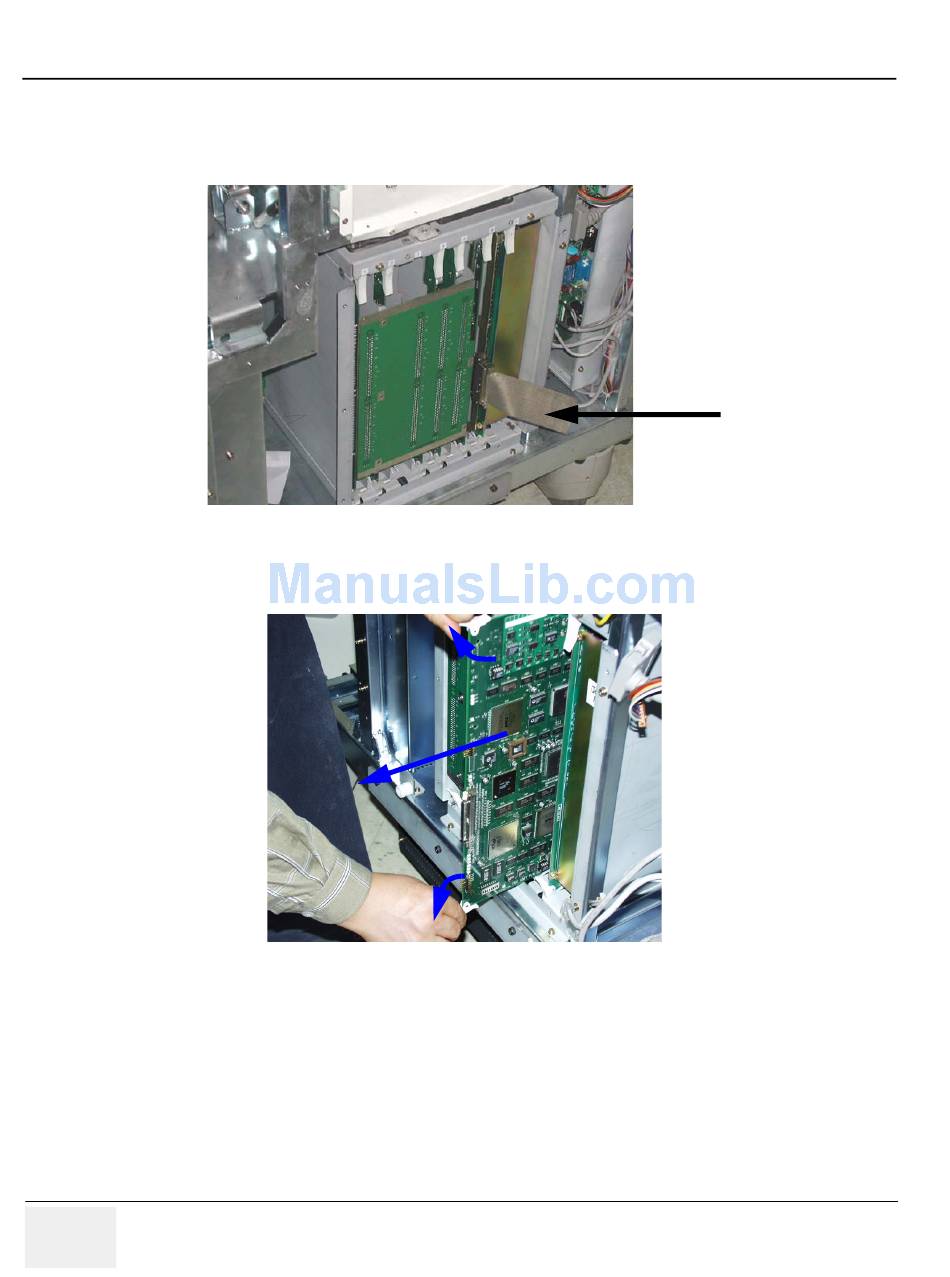

Figure 8-86 Disconnecting Cable
(1)
(2)
Figure 8-87 Taking Out the Board.
Section 8-7 - PCB Boards
(1)
