VLT HVAC Drive Operating Instructions

4.1.19. Access to Control Terminals

All terminals to the control cables are located underneath the terminal
cover on the front of the frequency converter. Remove the terminal cover
with a screwdriver.
Remove front-cover to access control terminals. When replacing the
front-cover, please ensure proper fastening by applying a torque of 2 Nm.

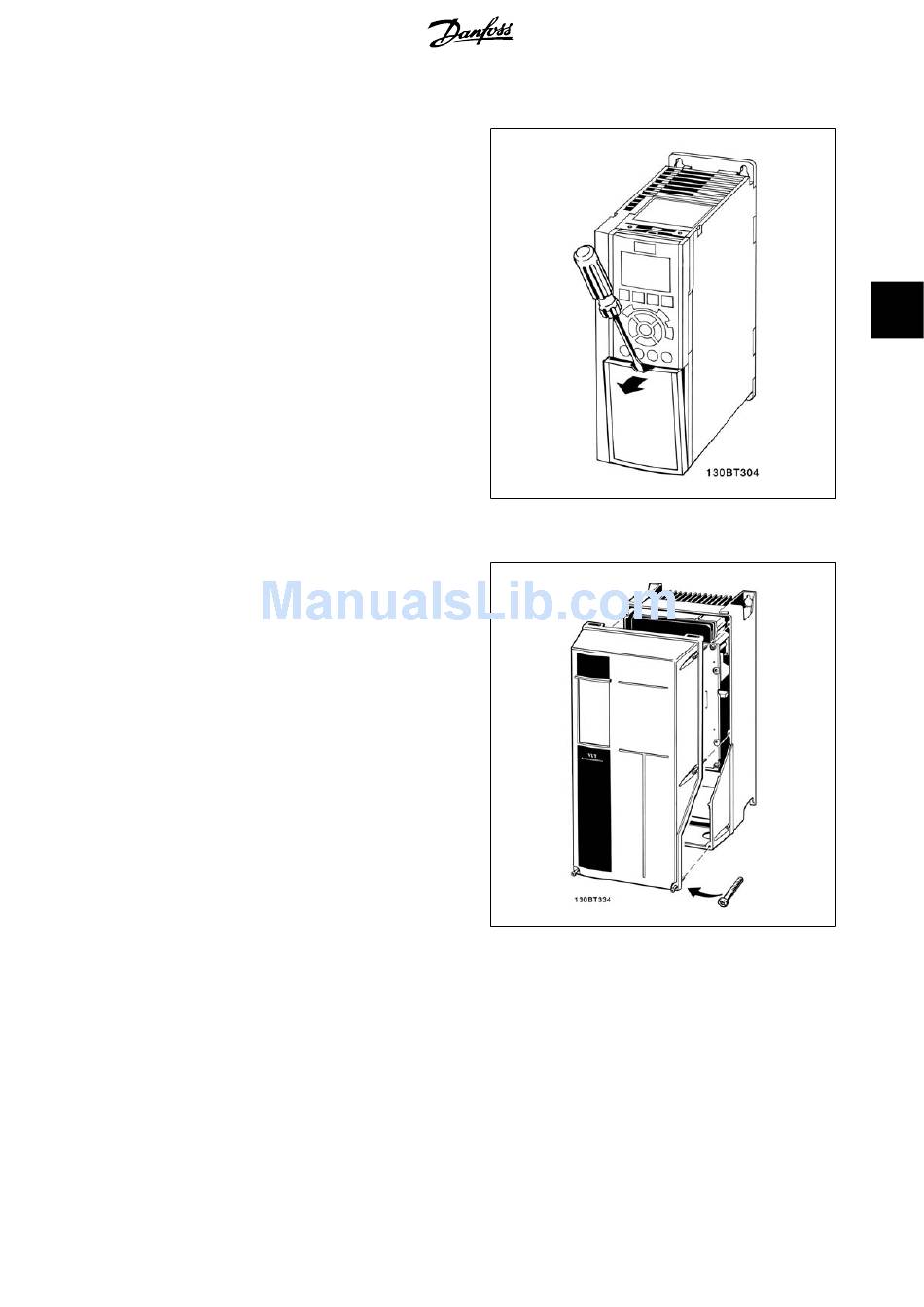

Illustration 4.24: Access to control terminals for A2, A3, B3,
B4, C3 and C4 enclosures
Illustration 4.25: Access to control terminals for A5, B1,B2, C1
and C2 enclosures
MG.11.A6.02 - VLT ® is a registered Danfoss trademark
4. Electrical installation
37
4
