5.1.5. How to Connect a PC to the frequency converter

To control or program the frequency converter from a PC, install the MCT 10 Set-up Software.
The PC is connected via a standard (host/device) USB cable, or via the RS-485 interface as shown in the
to Install > Installation of misc. connections
NB!
The USB connection is galvanically isolated from the supply voltage (PELV) and other high-voltage terminals. The USB connection is
connected to protection earth on the frequency converter. Use only isolated laptop as PC connection to the USB connector on the
frequency converter.

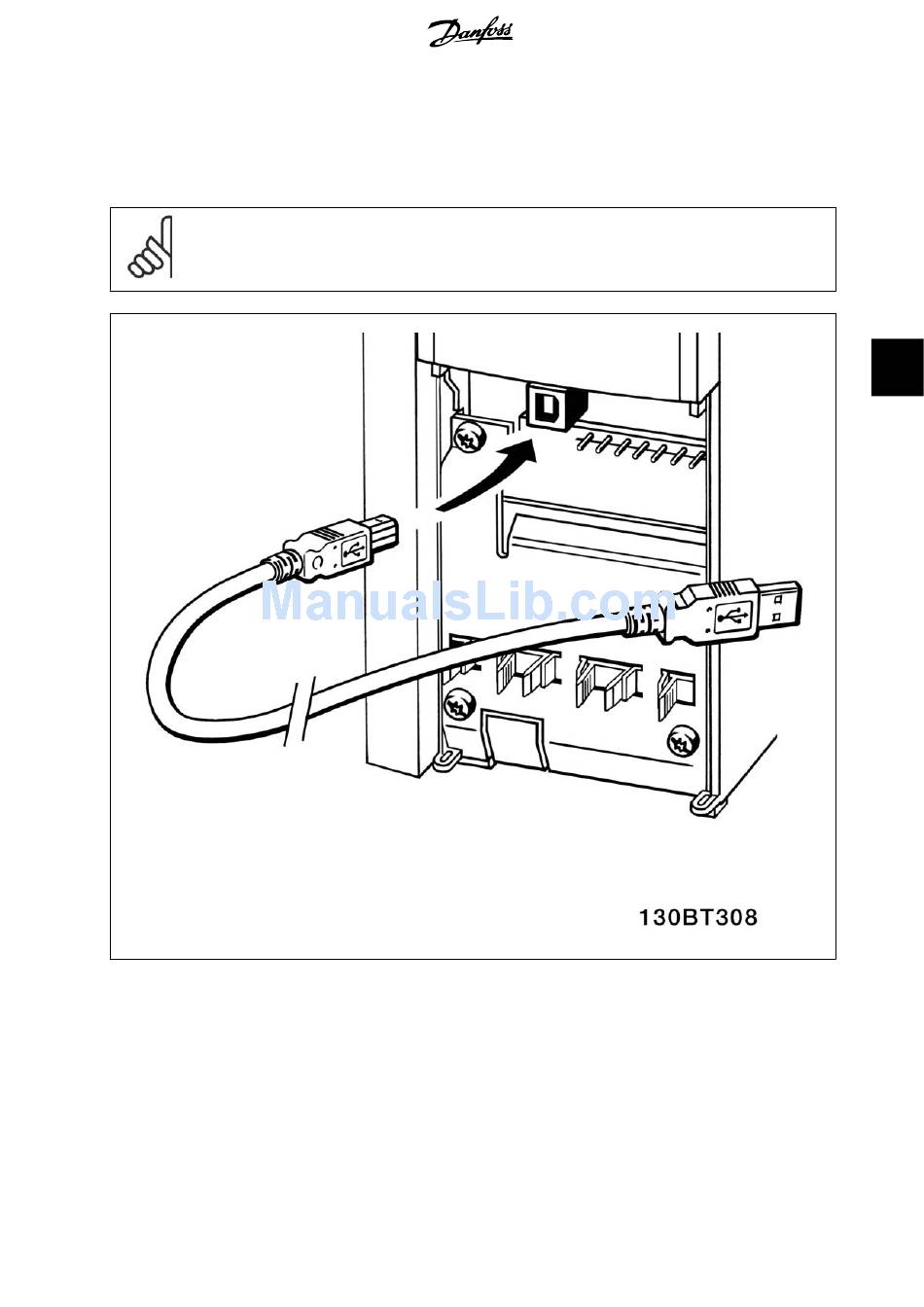

Illustration 5.7: For control cable connections, see section on

5.1.6. PC Software tools

PC Software - MCT 10

All Frequency converters are equipped with a serial communication port. Danfoss provides a PC tool for communication between PC and frequency
converter, VLT Motion Control Tool MCT 10 Set-up Software.
MCT 10 Set-up Software
.
Control Terminals
