6.1.8. Changing a Text Value

If the selected parameter is a text value, change the text value by means
of the up/down navigation keys.
The up key increases the value, and the down key decreases the value.
Place the cursor on the value to be saved and press [OK].

6.1.9. Changing a Group of Numeric Data Values

If the chosen parameter represents a numeric data value, change the
chosen data value by means of the <> navigation keys as well as the up/
down navigation keys. Use the <> navigation keys to move the cursor
horizontally.
Use the up/down navigation keys to change the data value. The up key
enlarges the data value, and the down key reduces the data value. Place
the cursor on the value to be saved and press [OK].

6.1.10. Changing of Data Value,Step-by-Step

Certain parameters can be changed step by step or infinitely variably. This applies to
Frequency
(par. 1-23).
The parameters are changed both as a group of numeric data values and as numeric data values infinitely variably.

6.1.11. Read-out and Programming of Indexed Parameters

Parameters are indexed when placed in a rolling stack.
Par. 15-30 to 15-32 contain a fault log which can be read out. Choose a parameter, press [OK], and use the up/down navigation keys to scroll through
the value log.
Use par. 3-10 as another example:
Choose the parameter, press [OK], and use the up/down navigation keys keys to scroll through the indexed values. To change the parameter value,
select the indexed value and press [OK]. Change the value by using the up/down keys. Press [OK] to accept the new setting. Press [Cancel] to abort.
Press [Back] to leave the parameter.

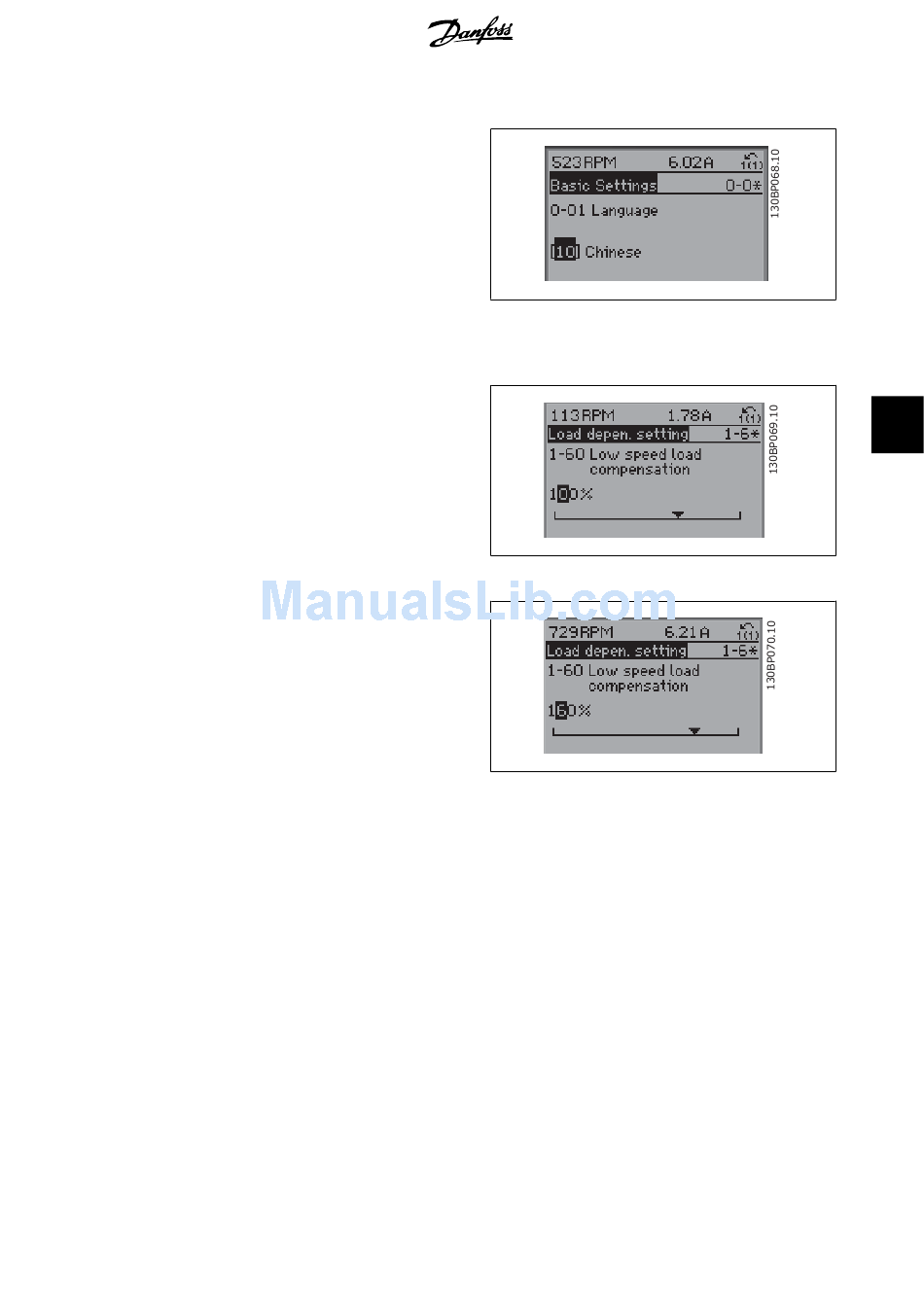

Illustration 6.11: Display example.
Illustration 6.12: Display example.
Illustration 6.13: Display example.
