VLT HVAC Drive Operating Instructions

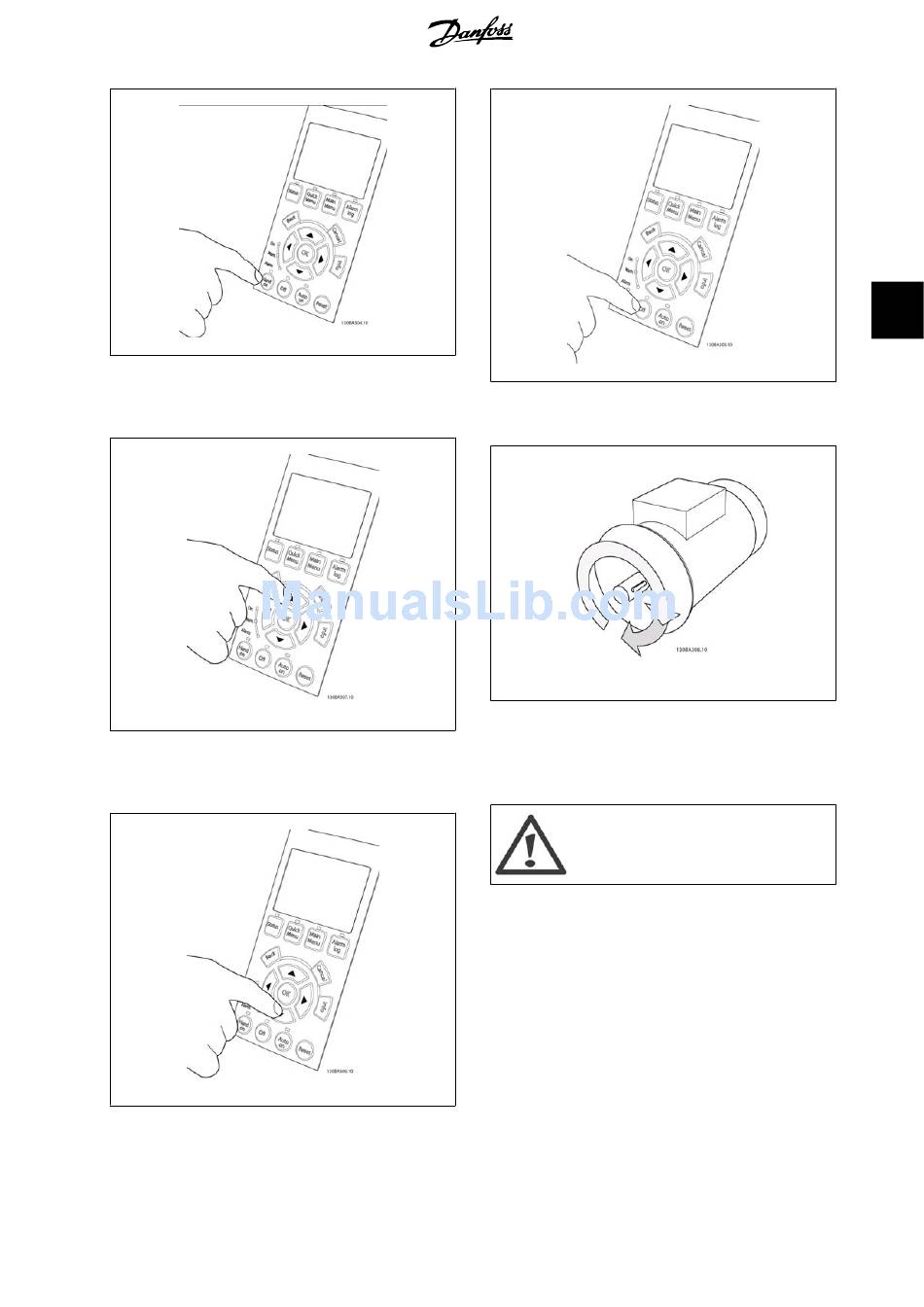

Illustration 4.43:
Step 5: By pressing the [Hand on] button, the LED above the
button should be lit and the motor may rotate.
Illustration 4.44:
Step 6: The speed of the motor can be seen in the LCP. It can
be adjusted by pushing the up
Illustration 4.45:
Step 7: To move the cursor, use the left
buttons. This enables changing the speed in larger increments.
and down arrow buttons.
▲ ▲
and right arrow
◄ ◄
MG.11.A6.02 - VLT ® is a registered Danfoss trademark
Illustration 4.46:
Step 8: Press the [Off] button to stop the motor again.
Illustration 4.47:
Step 9: Change two motor wires if the desired rotation of di-
rection is not achieved.
Remove mains power from the frequency converter
before changing motor wires.
