4. Electrical installation

4.1.17. Motor connection for C3 and C4

4

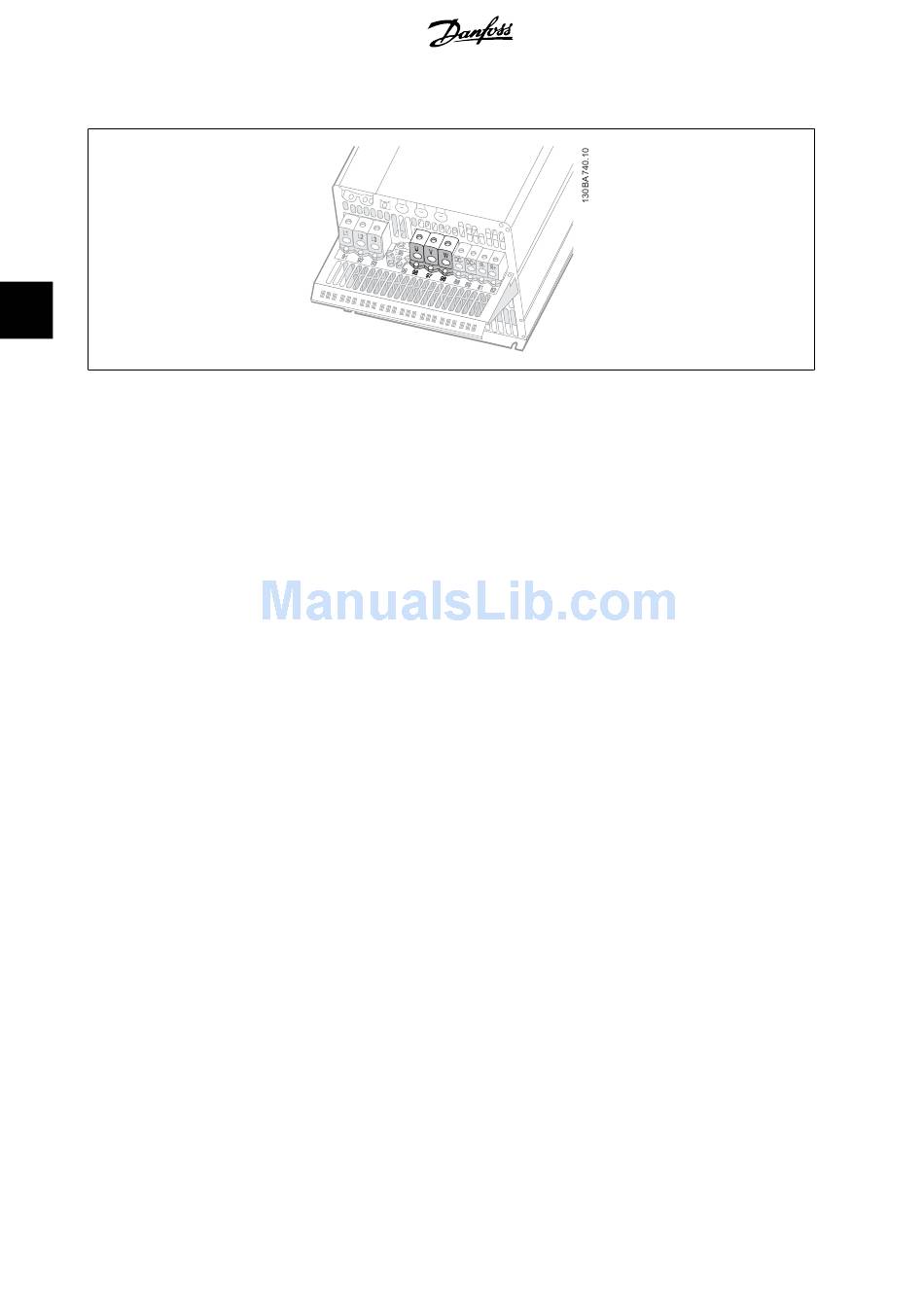

Illustration 4.23: First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten. Please ensure that the
outer insulation of the motor cable is removed under the EMC clamp.

4.1.18. Wiring Example and Testing

The following section describes how to terminate control wires and how to access them. For an explanation of the function, programming and wiring of
the control terminals, please see chapter,
36
How to programme the frequency converter.
