4. Electrical installation

4.2. Final optimization and test

4.2.1. Final optimization and test
To optimize motor shaft performance and optimize the frequency converter for the connected motor and installation, please follow these steps. Ensure
that frequency converterand motor are connected and that power is applied to frequency converter.
NB!
Before power up ensure that connected equipment is ready for use.
4
Step 1. Locate motor name plate

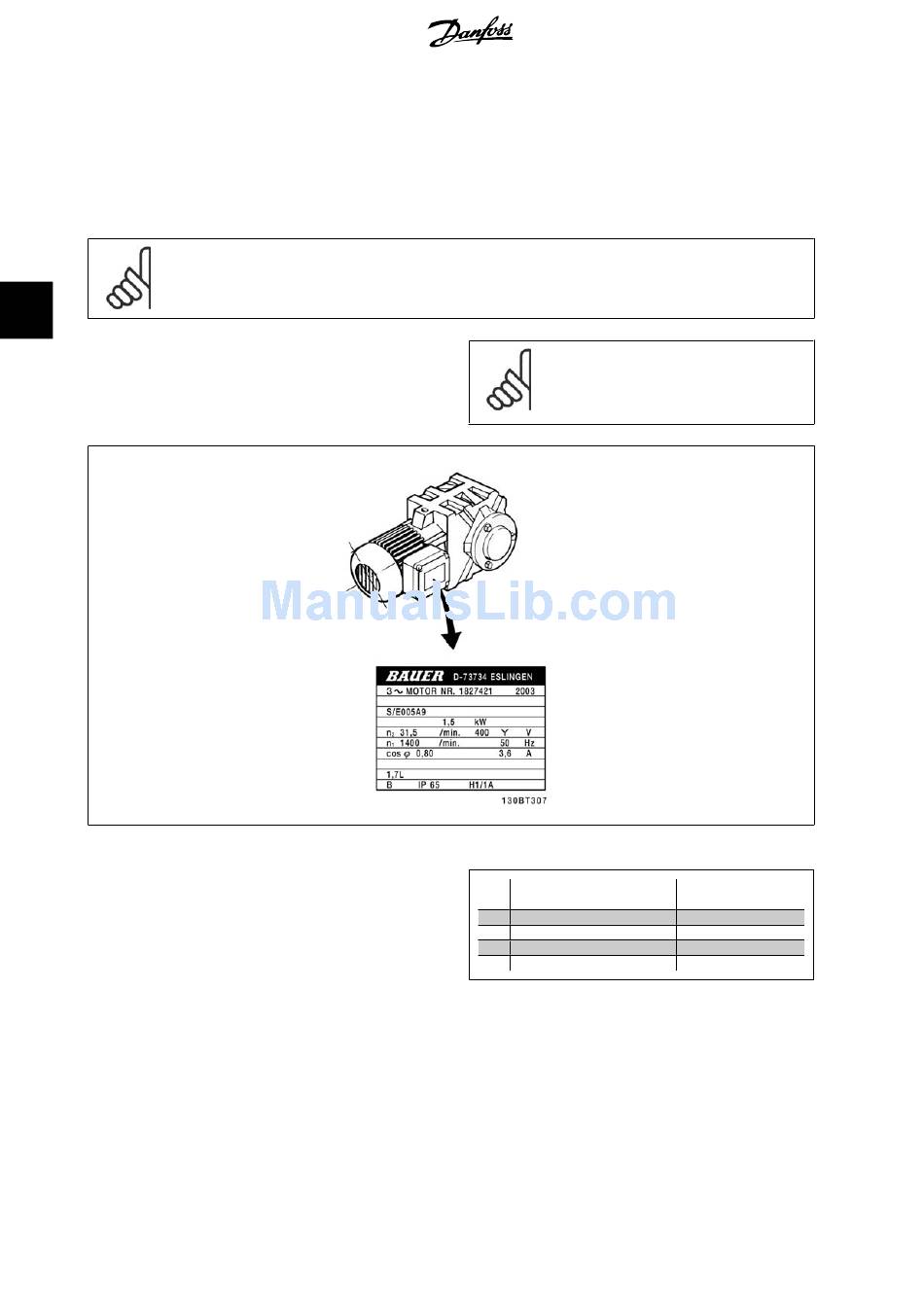

Illustration 4.51: Motor name plate example
Step 2. Enter motor name plate data in following parameter list
To access list first press [QUICK MENU] key then select "Q2 Quick Setup".
48
1. Motor Power [kW]
or Motor Power [HP]
2. Motor Voltage
3. Motor Frequency
4. Motor Current
5. Motor Nominal Speed
Table 4.16: Motor related parameters
MG.11.A6.02 - VLT ® is a registered Danfoss trademark
®
VLT HVAC Drive Operating Instructions
NB!
The motor is either star- (Y) or delta- connected (Δ).
This information is located on the motor name plate
data.
par. 1-20
par. 1-21
par. 1-22
par. 1-23
par. 1-24
par. 1-25
