VLT HVAC Drive Operating Instructions

5. How to operate the frequency converter

5.1. Three ways of operating

5.1.1. Three ways of operating
The frequency converter can be operated in 3 ways:
1. Graphical Local Control Panel (GLCP), see 5.1.2
2. Numeric Local Control Panel (NLCP), see 5.1.3
3. RS-485 serial communication or USB, both for PC connection, see 5.1.4
If the frequency converter is fitted with fieldbus option, please refer to relevant documentation.

5.1.2. How to operate graphical LCP (GLCP)

The following instructions are valid for the GLCP (LCP 102).

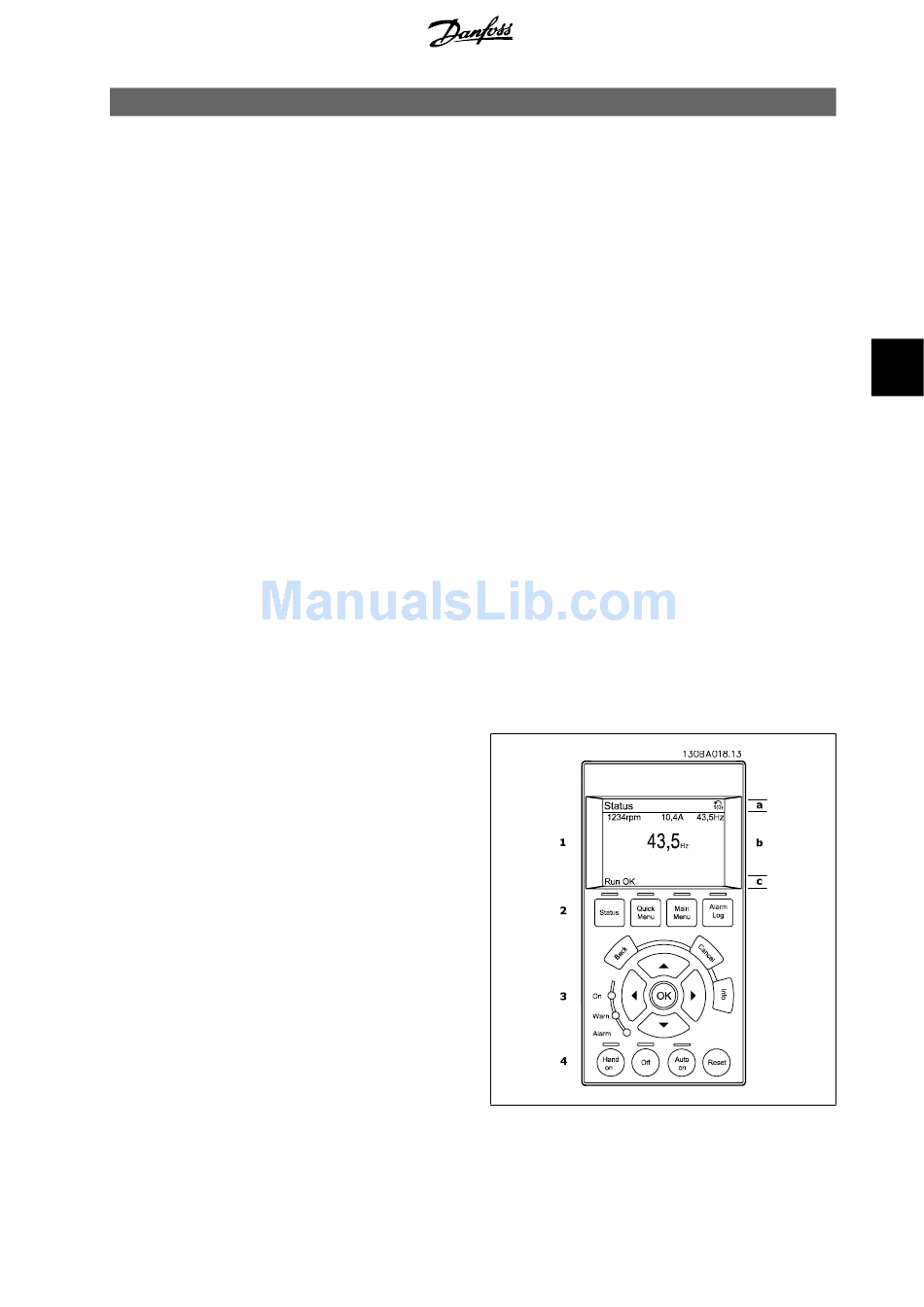

The GLCP is divided into four functional groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights (LED's) - selecting mode, changing parameters and switching between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).

Graphical display:

The LCD-display is back-lit with a total of 6 alpha-numeric lines. All data is displayed on the LCP which can show up to five operating variables while in
[Status] mode.
Display lines:
a. Status line: Status messages displaying icons and graphics.1
b. Line 1-2: Operator data lines displaying data and variables de-
fined or chosen by the user. By pressing the [Status] key, up to
one extra line can be added.1
c. Status line: Status messages displaying text.1
The display is divided into 3 sections:
