VLT HVAC Drive Operating Instructions

4.1.12. Motor connection for A2 and A3

Follow these drawings step by step for connecting the motor to the frequency converter.

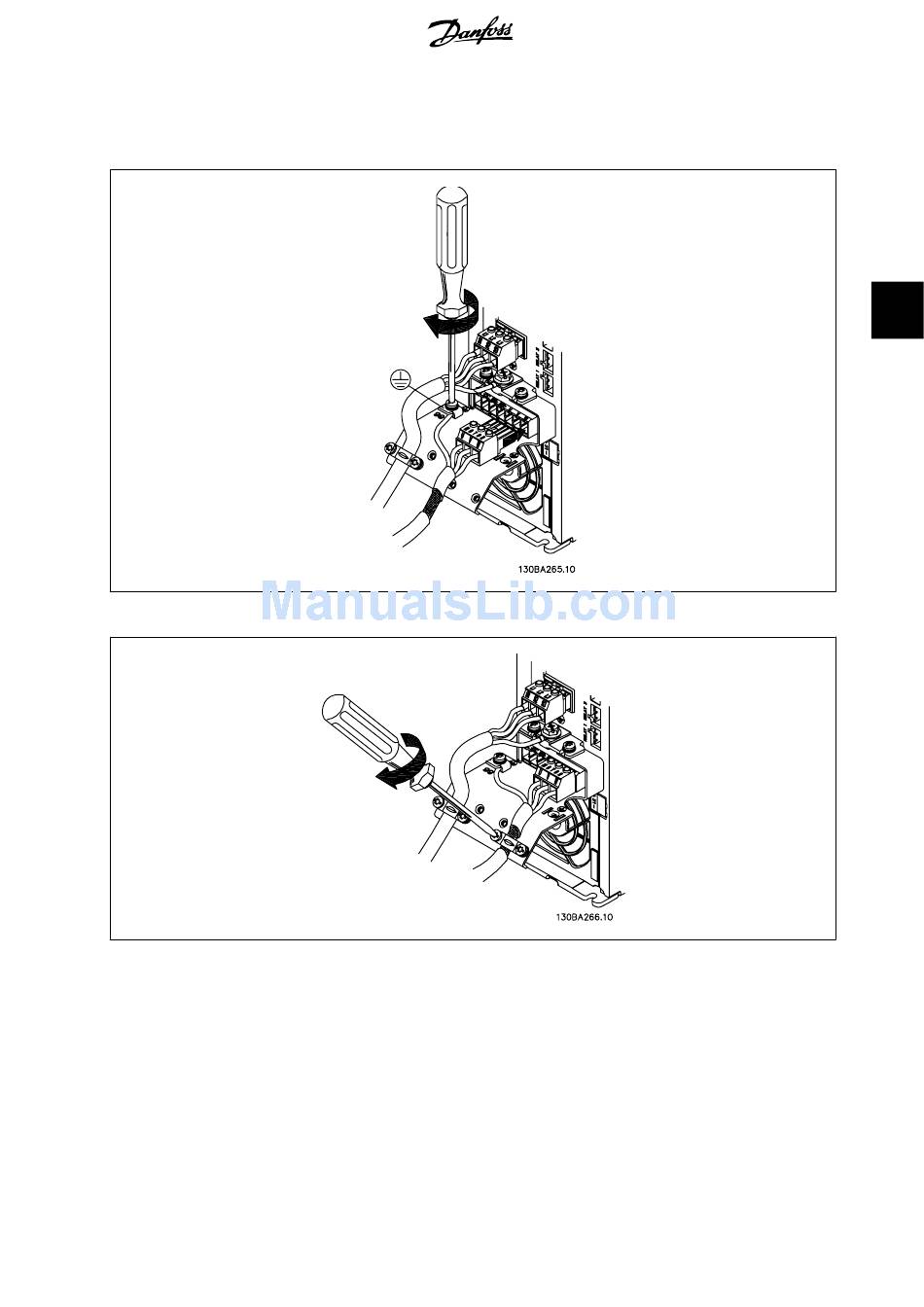

Illustration 4.16: First terminate the motor earth, then place motor U, V and W wires in plug and tighten.
Illustration 4.17: Mount cable clamp to ensure 360 degree connection between chassis and screen, note the outer insulation of the
motor cable is removed under the clamp.
MG.11.A6.02 - VLT ® is a registered Danfoss trademark
4. Electrical installation
33
4
